Configuring Communications
25
MVP-8400i Modero Viewpoint Wireless Touch Panels
Configuring the Modero’s wireless card for unsecured access to a WAP200G
In the Protected Setup page:
1. Press the Wireless Settings button (located on the lower-left) to open the Wireless Settings page.
2. Enter the SSID information by either:
Automatically having it filled in by pressing the Site Survey button and from the Site Survey
page, choosing an Open WAP from within the Site Survey page and then pressing the
Connect button.
Manually entering the SSID information into their appropriate fields by following steps 7
thru 9.
3. From within the Wireless Security section, press the Open (Clear Text) button to open the Open
(Clear Text) Settings dialog (
FIG. 19). An Open security method does not utilize any encryption
methodology but does require that an SSID (alpha-numeric) be entered. Using this method causes
network packets to be sent out as unencrypted text.

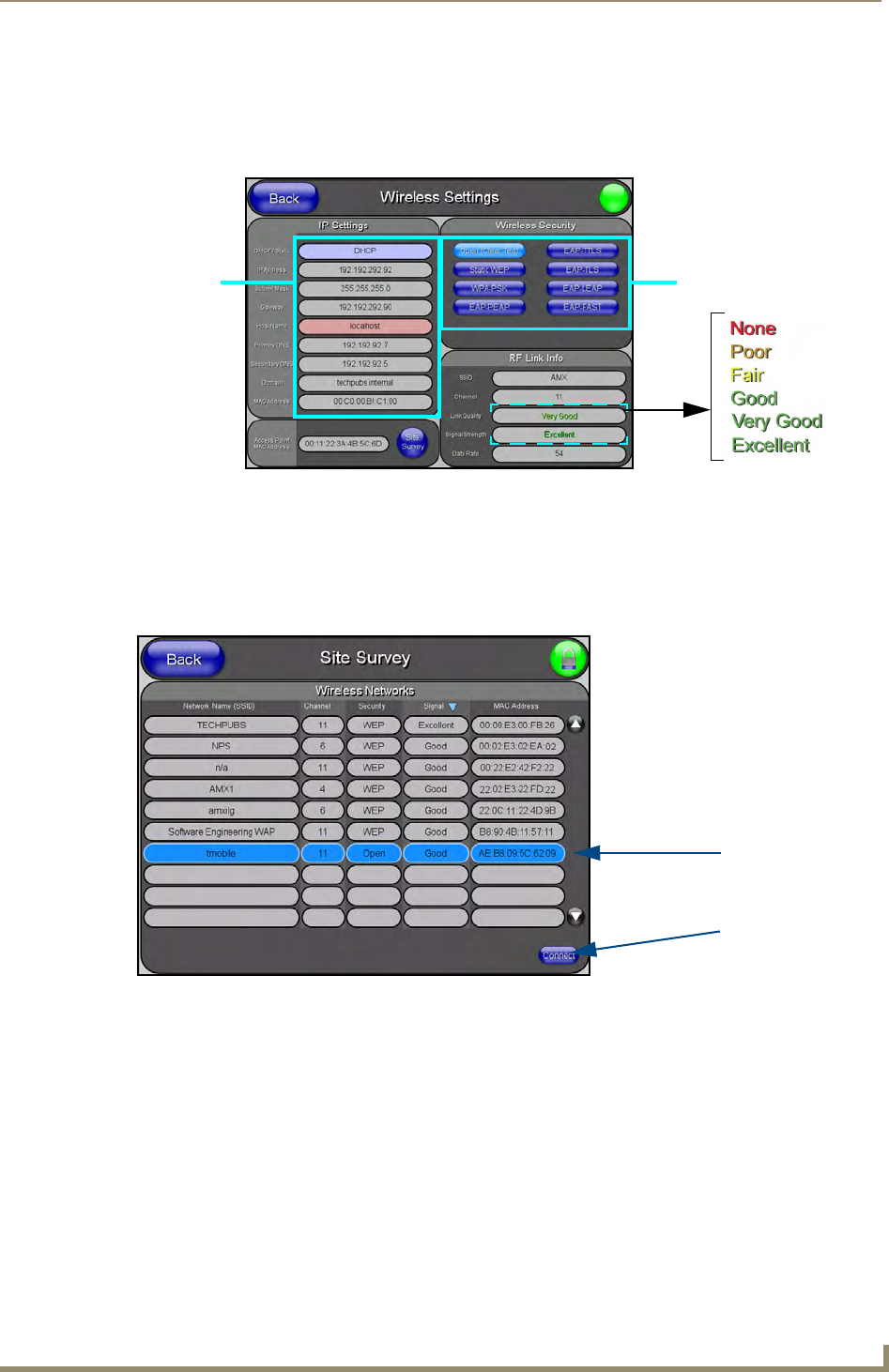

FIG. 17 Wireless Settings page (showing a sample unsecured configuration)
FIG. 18 Site Survey of available WAPS (Unsecured WAP shown selected)
MVP
connection
IP info.
Wireless
card security settings
Select an OPEN
(unsecured) WAP
Connecting to the
WAP begins the
communication
