Panel Calibration
159
MVP-8400i Modero Viewpoint Wireless Touch Panels
Panel Calibration
This section outlines the steps for calibrating the touch panel. It is recommended that you calibrate the
panel both before its initial use and after completing a firmware download.
Modero panels are factory setup with specific demo touch panel pages. The first splash screen that
appears indicates the panel is receiving power, beginning to load firmware, and preparing to display the
default touch panel pages. When the panel is ready, the AMX Splash Screen is replaced by the Initial
Panel Page (
FIG. 75).
Calibrating the MVP Panels
1. Press and hold the two lower external pushbuttons on both sides of the MVP (FIG. 76) for
6 seconds to pass-over the Setup page and access the Calibration setup page (FIG. 77).
2. Using the included stylus, press the crosshairs (on the Calibration page) to set the calibration points
on the LCD (
FIG. 77).
3. After the "Calibration Successful." message appears, press anywhere on the screen to continue and
return to the Setup page.

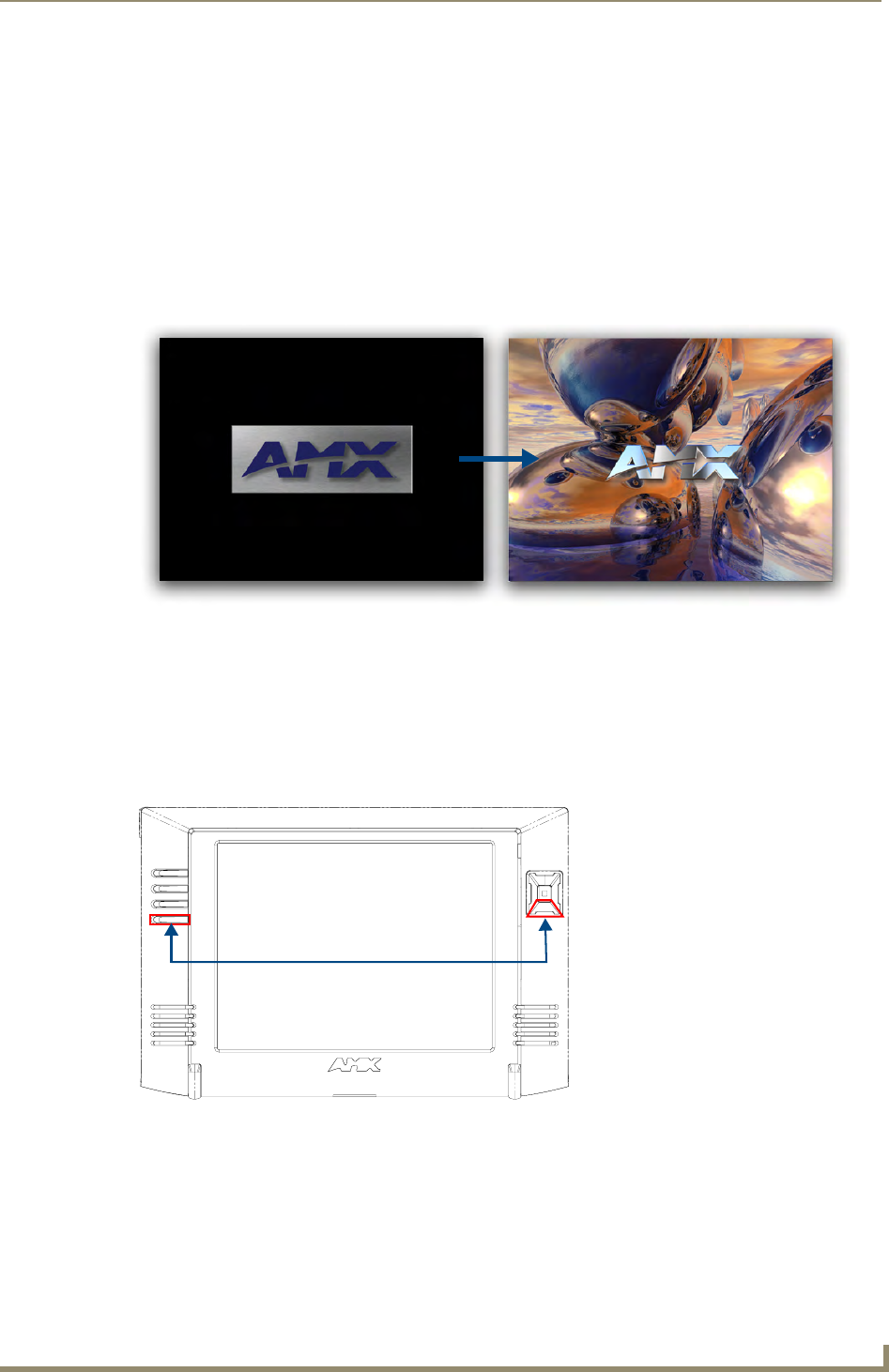

FIG. 75 AMX splash screen and initial Panel Page
FIG. 76 Location of Setup Access buttons
AMX Splash Screen
(appears during power-up)
Initial Panel Page
(AMX Logo Page)
3 second press/hold of both buttons:
Opens the Setup page
6 second press/hold of both buttons:
Opens the Calibration page
