Wireless Touch Panel with Intercom Reference Guide
Table Of Contents
- MVP-8400iModero® ViewPoint® Wireless Touch Panel with Intercom
- MVP-8400i Modero Viewpoint Wireless Touch Panel With Intercom
- MVP-BP Power Pack
- NXA-CFSP Compact Flash
- Wireless Interface Cards
- Configuring Communications
- Modero Setup and System Settings
- Wireless Settings Page - Wireless Access Overview
- Configuring a Wireless Network Access
- Step 1: Configure the Panel’s Wireless IP Settings
- Step 2: Configure the Card’s Wireless Security Settings
- Step 3: Choose a Master Connection Mode
- Using G4 Web Control to Interact with a G4 Panel
- Using your NetLinx Master to control the G4 panel
- Upgrading MVP Firmware
- Setup Pages
- Navigation Buttons
- Setup Pages
- Information
- Protected Setup Pages
- Protected Setup Navigation Buttons
- G4 Web Control Page
- Calibration Page
- Wireless Settings Page
- Wireless Security Page
- Open (Clear Text) Settings
- Static WEP Settings
- WPA-PSK Settings
- EAP-LEAP Settings
- EAP-FAST Settings
- EAP-PEAP Settings
- EAP-TTLS Settings
- EAP-TLS Settings
- Client certificate configuration
- System Settings Page
- Other Settings
- Tools
- Programming
- Panel Calibration
- Appendix A: Text Formatting
- Appendix B - Wireless Technology
- Appendix C: Troubleshooting
- Checking AMX USBLAN device connections via Windows Device Manager
- Checking AMX USBLAN device connections via NetLinx Studio
- USB Driver
- Panel Not in Listed As a Connected Device
- Connection Status
- Panel Doesn’t Respond To Touches
- Batteries Will Not Hold Or Take A Charge
- Modero Panel Isn’t Appearing In The Online Tree Tab
- MVP Can’t Obtain a DHCP Address
- My WEP Doesn’t Seem To Be Working
- NetLinx Studio Only Detects One Of My Connected Masters
- Can’t Connect To a NetLinx Master
- Only One Modero Panel In My System Shows Up
- Panel Behaves Strangely After Downloading A Panel File Or Firmware
- Panel Fails to Charge in MVP-WDS
MVP-8400i Modero Viewpoint Wireless Touch Panel With Intercom
2
MVP-8400i Modero Viewpoint Wireless Touch Panels
Optional AMX accessory solutions for the MVPs include
MVP-TDS Table Top Docking Station (see the MVP-TDS Table Top Docking Station
Operation/Reference Guide for details).
MVP-WDS Wall/Flush Mount Docking Station-Black/Silver (see the MVP-WDS Wall
Docking Station Operation/Reference Guide for details).
MVP-KS Kickstand (see the MVP-KS Kickstand Operation/Reference Guide for details).
Specifications
The MVP-8400i panel utilizes an 8.4" Color Active LCD to display an 800 x 600 pixel
resolution using 256K colors.

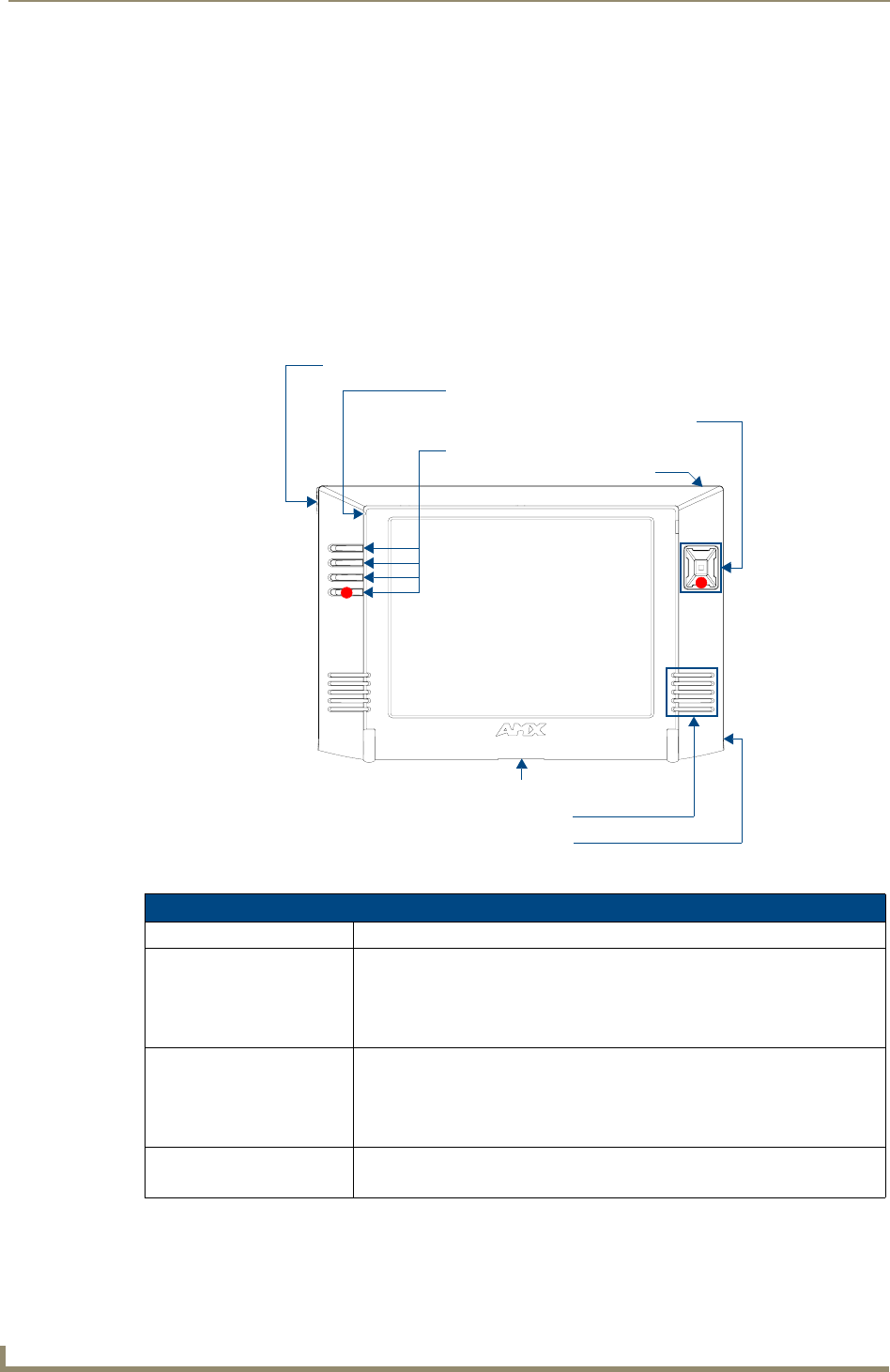

FIG. 2 MVP Touch Panels
MVP-8400i Specifications (FG5965-04)
Dimensions (HWD): 7.09" x 10.47" x 1.47" (18.00 cm x 26.60 cm x 3.73 cm)
Power Requirement
(without charging):
Panel with batteries fully charged or with no batteries:
• Constant current draw: 1.3 A @ 12 VDC
• Startup current draw: 1.9 A @ 12 VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the above figures.
Power Requirement
(while charging):
Panel while charging batteries:
• Constant current draw: 3.3 A @ 12 VDC
• Startup current draw: 3.9 A @ 12 VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the above figures.
Minimum power
supply required:
PS4.4 Power Supply (FG423-45)
- All MVP models are shipped with this power supply.
Docking station interface connector
Speaker
Power connector
Directional pad w/center select button
Mini-USB connector
Stylus
Pushbuttons (4)
C
C
Microphone
