Setup Pages
92
MVP-8400i Modero Viewpoint Wireless Touch Panels
Setting the image cache
In the Protected Setup page:
1. Press the Cache button in the Protected Setup Navigation Buttons section. This opens the Image
Cache page.
2. Set the cache expiration in the field Flash/RAM Cache Expires. The Up and Down arrows increment
through the available time frames.
3. Press the Enable button to turn on image caching. The button appears illuminated when enabled.
Select the Up and Down arrows for the field Flash Cache Size to increase or reduce the amount of Flash
memory used; the maximum amount of flash that can be allocated for caching is 75% of available flash.
Clearing the image cache
In the Protected Setup page:
1. Press the Cache button in the Protected Setup Navigation Buttons section. This opens the Image
Cache page.
2. Press Clear Cache. This clears all image cache currently stored on the panel (both Flash and
RAM).
Checking image cache status
In the Protected Setup page:
Press the Cache button in the Protected Setup Navigation Buttons section. This opens the Image Cache
page. All status information is located in the Image Cache Status section of the page.
Password Setup Page
The options on the Password Setup page enable you to assign the passwords required for users to access
the Protected Setup page, and to release the MVP from a MVP-TDS or MVP-WDS docking station
(
FIG. 69).

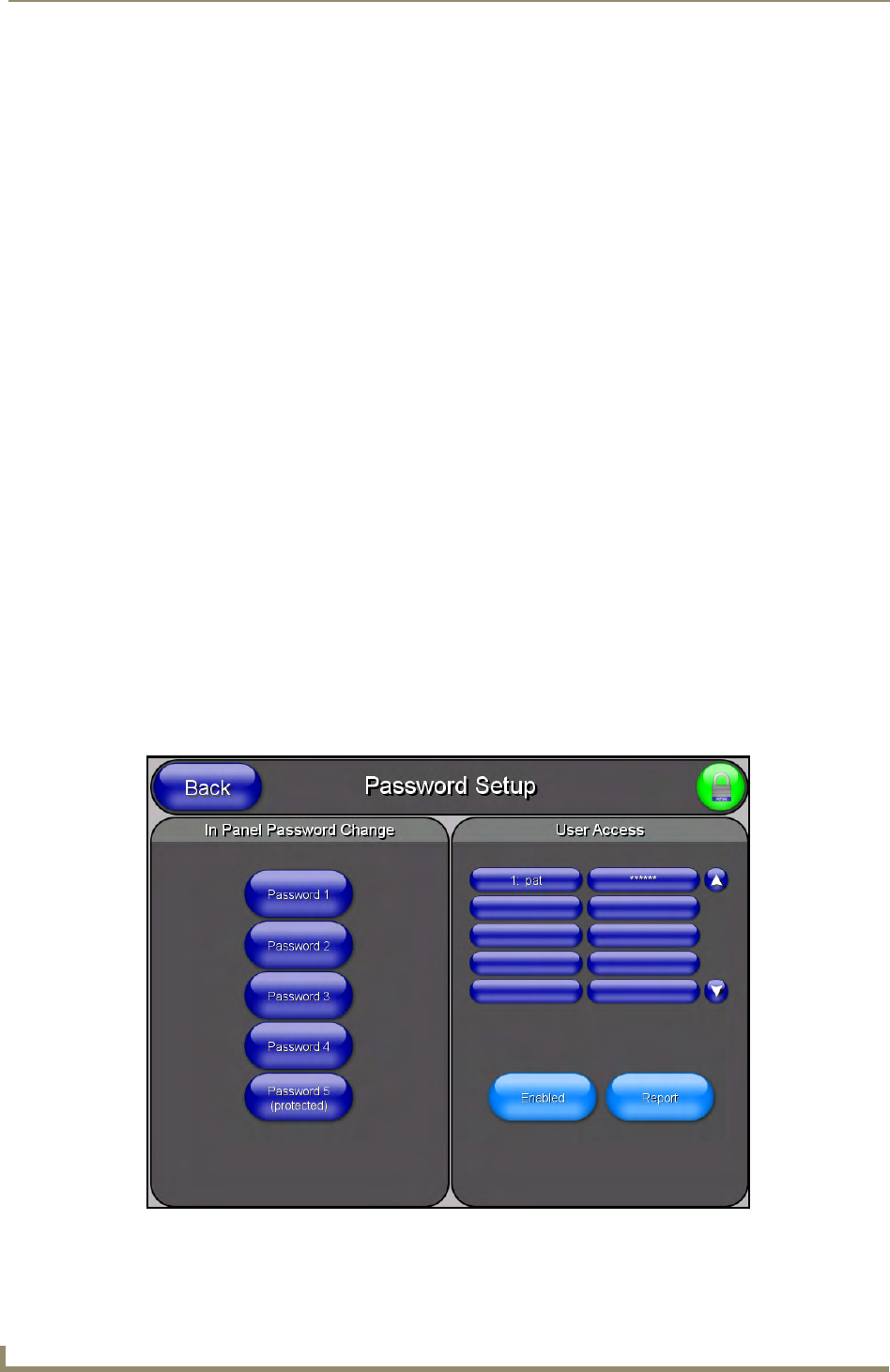

FIG. 69 Password Setup page
