Running i!-PCLink/PowerPoint
4
i!-PCLinkPowerPoint
i!-PCLink/PowerPoint User Interface
The touch panel files included with the i!-PCLink/PowerPoint application are designed for an
AXD-CV10 but may used with any 10.4 panel or NetLinx application.
On the touch panel, press the Files button, the Current Directory window at the top will
display your present location. Use the Up/Down arrow buttons to scroll through the
directory for the desired PowerPoint file or to locate another drive. Use the Select button
to enter your choice. Selecting a PowerPoint file will launch the application on the PC
running i!-PCLink/PowerPoint. Press the Exit button to access the presentation controls.

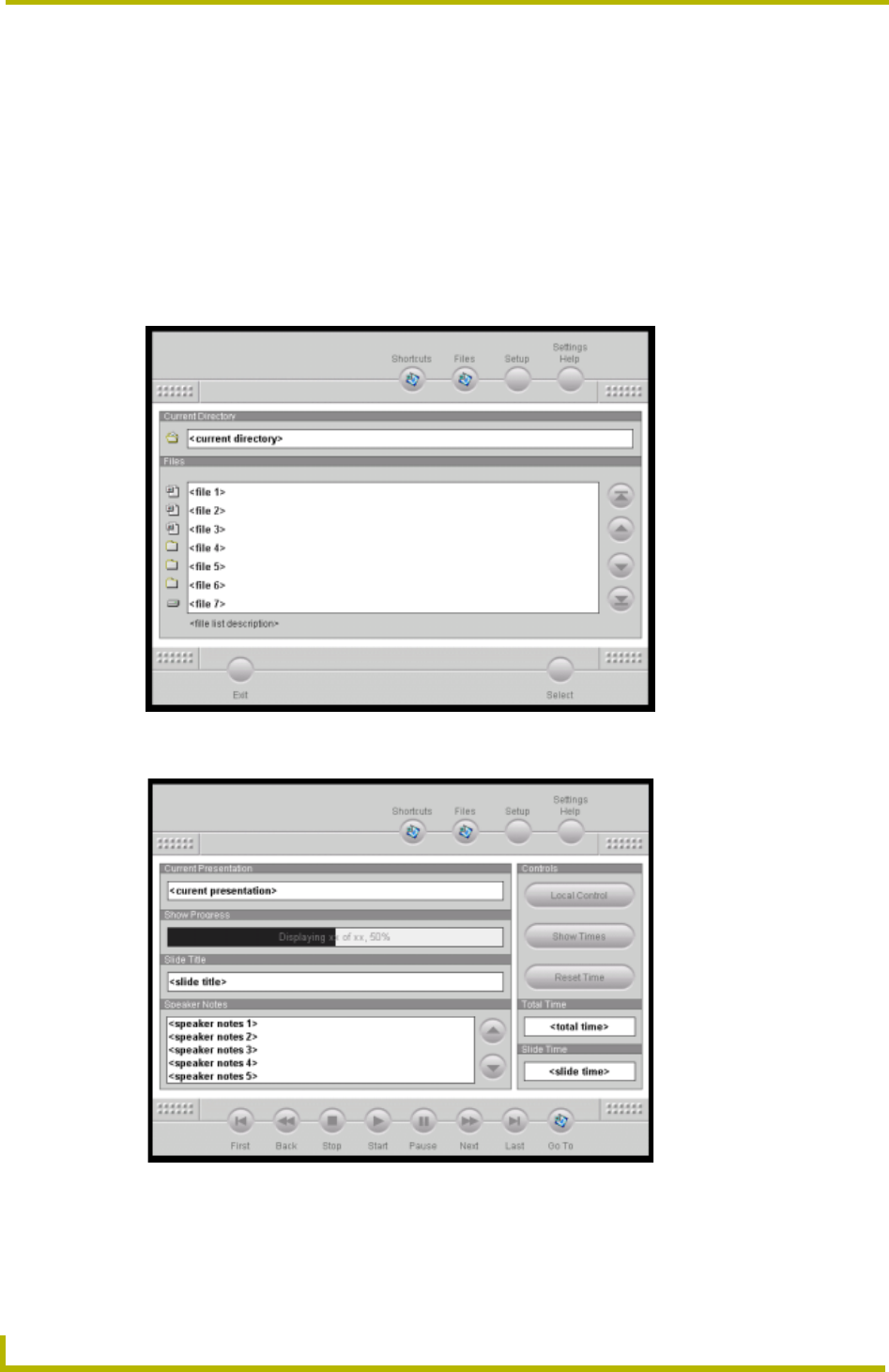

FIG. 2 Current Directory Window
FIG. 3 Controls and Displays
