Running i!-PCLink/PowerPoint
7
i
!-PCLinkPowerPoint
c. Serial (RS232)
Please enter the COM port communications settings of the NetLinx master with
i!-PCLink/PowerPoint installed. The serial connection method requires a null serial cable
connected from the host computer's serial port to a program serial port of the NetLinx master.
The default NetLinx serial program port settings are:
Baud Rate: 38400
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
d. Auto Mode Connect
Please enter the system number of the NetLinx system you wish to connect to. This connection
mode will attempt to connect to the first available NetLinx system with the specified system
number.
3. The NetLinx device field is to identify the i!-PCLink/PowerPoint software to the NetLinx
master. (Default = 8001). Please see Device Section

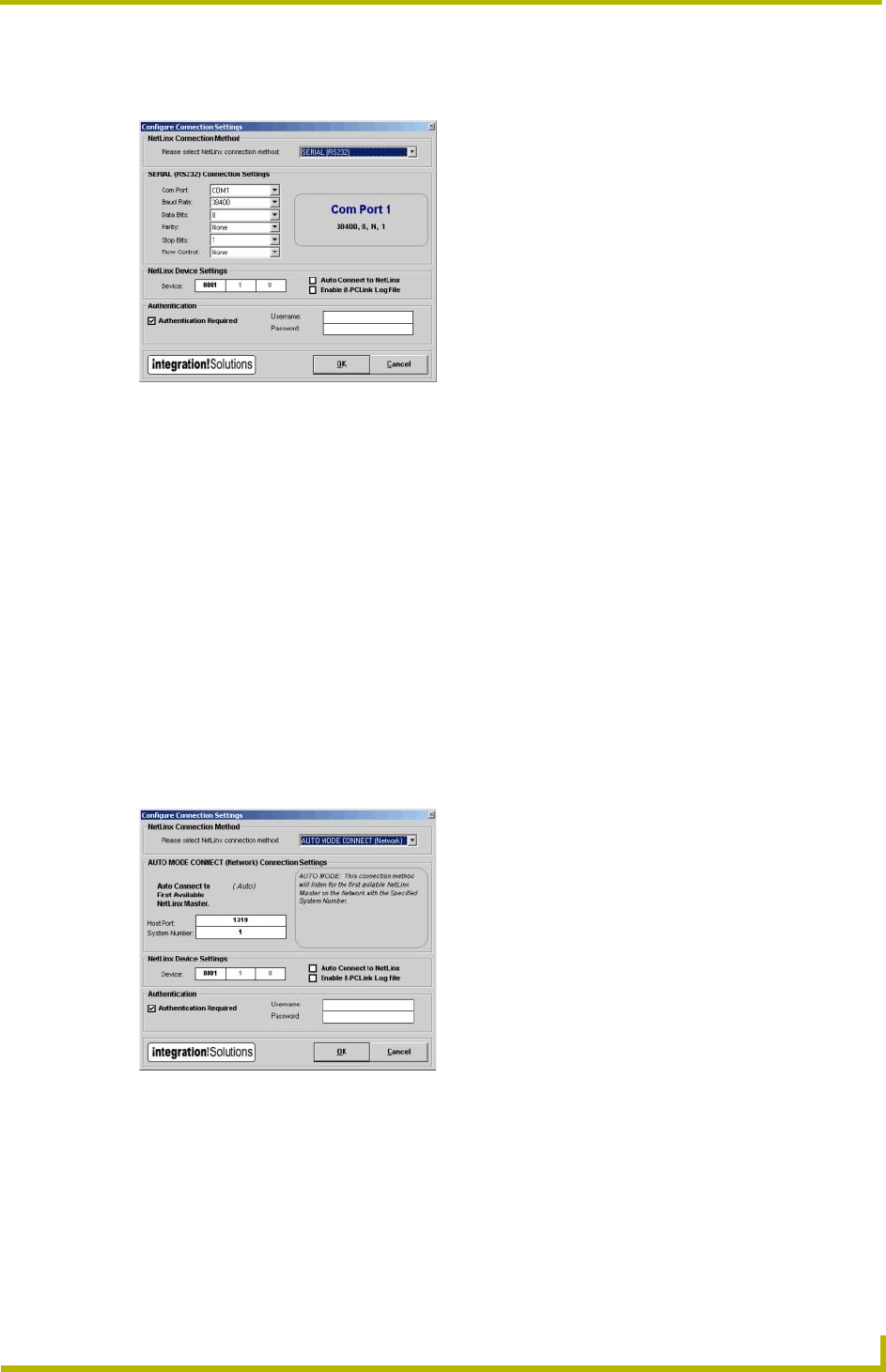

FIG. 6 Serial (RS232)
FIG. 7 Auto Mode Connect
