- 1. Open a terminal session (via TELNET or SERIAL) to the NetLinx Master.
- 2. Type "echo on", and press the Enter button.
- 3. Type "url list", and press the Enter button. If no URL’s are in your NetLinx Master, it returns the following response: No URLs in the URL connection list
- 4. To add a URL, type "set url", and press the Enter button. The NetLinx Master should return: Type A and Enter to Add a URL or Enter to exit. ->
- 5. Type "A", and press the Enter button. The NetLinx Master should return: Enter URL ->
- 6. This is where you enter the IP Address of the i!-PCLink/Media Player Host Computer. Type "192.168.1.1", and press the Enter b...
- 7. Press the Enter button to accept the default port (1319). The NetLinx Master should return: Enter Type (Enter for permanent or T for temporary) ->
- 8. Press the Enter button to make the entry permanent. The NetLinx Master should return: URL Added successfully. Type A and Enter to Add a URL or Enter to exit. ->
- 9. Finally, Press the Enter button to exit.
- 10. To make sure the entry was made, or to check the status of the link, type "url list". Press the Enter button. The NetLinx Ma...
- Adding Host Entries to the NetLinx URL List
Running i!-PCLink/PowerPoint
6
i!-PCLinkPowerPoint
i!-PCLink/PowerPoint supports the following NetLinx connection methods:
a. TCP/IP Connect (Network)
In the Connect mode, the i!-PCLink/PowerPoint application actively connects to the NetLinx
master. You simply need to enter the IP Address or Host Name of the NetLinx master in the
"Host Address" box and enter the ICSP port number in the "Host Port" box. If you have not
changed the ICSP port of the master through telnet or terminal, it is using the default of 1319).
b. TCP/IP Listen (Network)
In the Listen mode, the i!-PCLink/PowerPoint application waits for a NetLinx master to
attempt the connection. Enter the ICSP port number in the "Host Port" box. If you have not
changed the ICSP port of the master through telnet or terminal, it is using the default of 1319.
The Host Name or IP address of the Host computer must be entered in the URL List of the
NetLinx master for Listen mode.

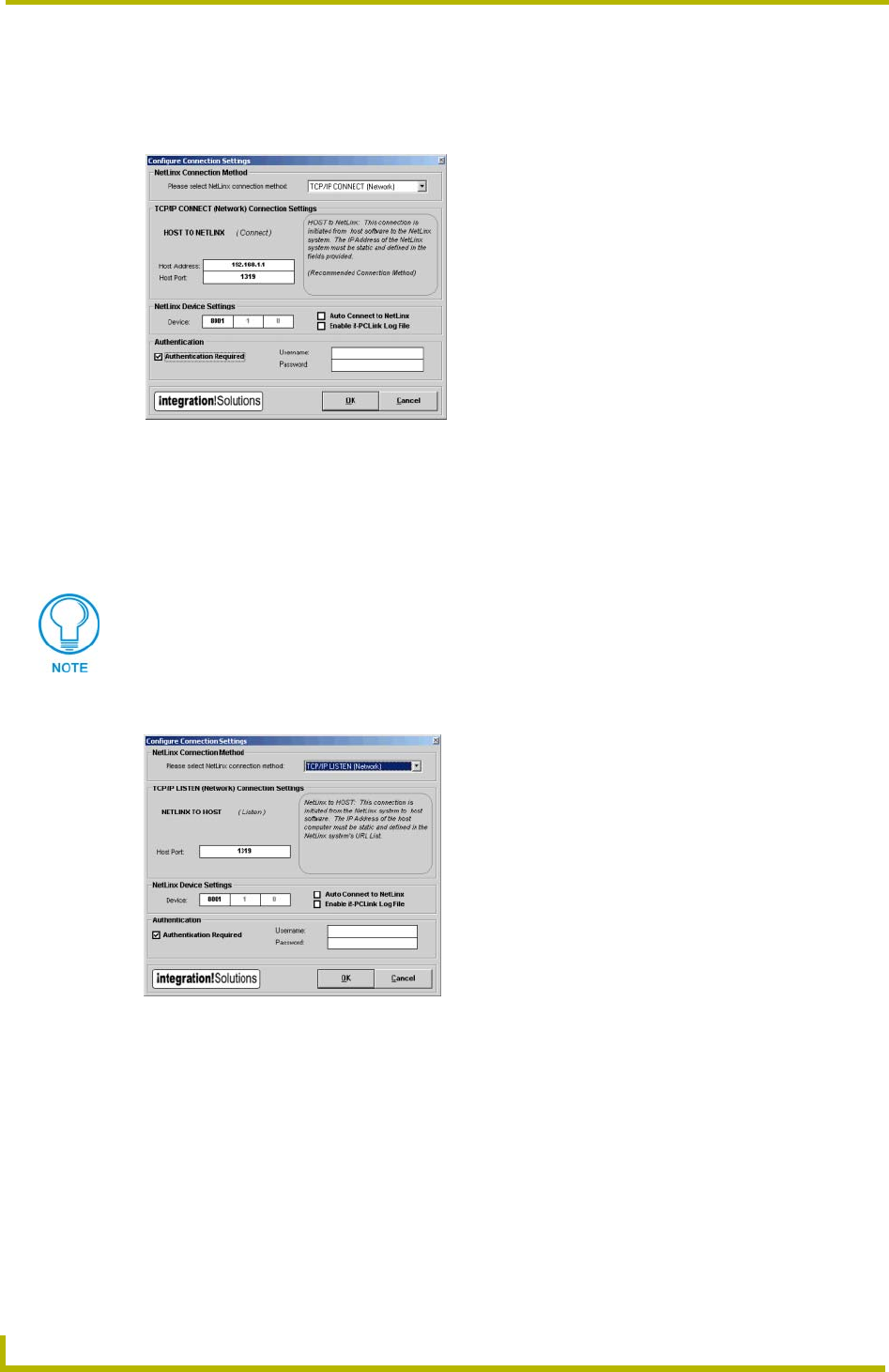

FIG. 4 TCP/IP Connect (Network)
This is the recommended connection method
FIG. 5 TCP/IP Listen (Network)
