User Guide

Using the Design XPress Project Wizard
36
Design XPress Programmer’s Guide
you only need to remove any audio zones that you do not want to be called from this Door
Phone.
4. Repeat steps 1-3 for all remaining Door Phones in the system.

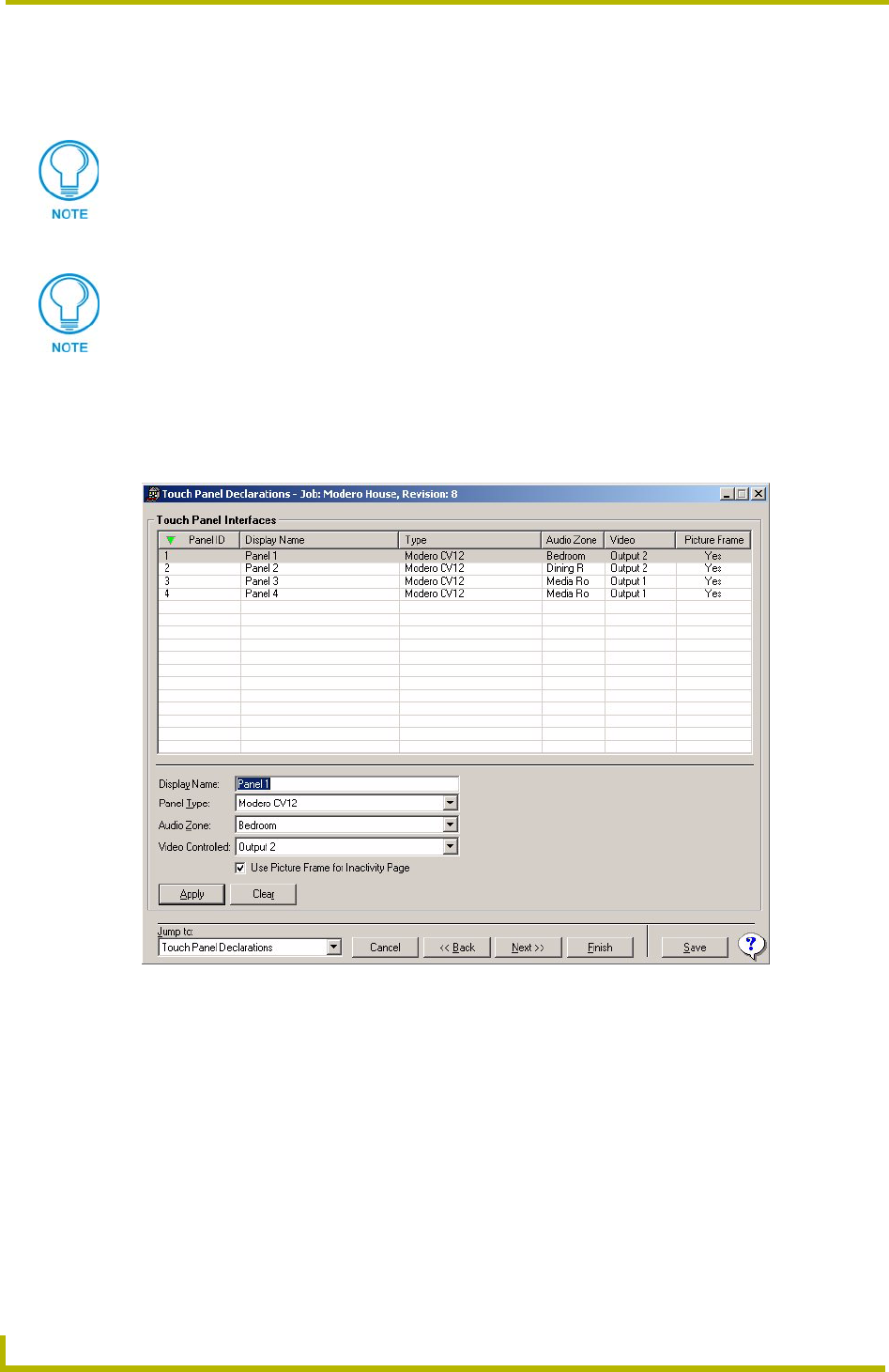

Touch Panel Declarations dialog
The options in the Touch Panel Declarations dialog (FIG. 11) allow you to specify the number of
touch panels in the system, as well as the type of each panel.
The elements of this dialog are described below:
Design XPress will allow you to select a Door Phone as a valid zone to call, but it will
be filtered out when you press the Next button.
Each Door Phone in the system uses two audio zones.
FIG. 11 Touch Panel Declarations dialog
