Configuring SB2 Keypads
Use the SB2 Keypads dialog to specify locations and audio zones for up to 32 SB2 keypads in the
system:
1. Select a SB2 Location for each SB2 keypad in the system. The number of available SB2s in the
system is based on the number specified in the System Information dialog.
2. For each SB2 Location, select an Audio Zone.
Edit Rooms/Locations dialog
Click the Edit Rooms/Locations button in the DMS Keypads, SB2 Keypads, Door Phones or Touch
Panel Control dialogs to open the Edit Rooms/Locations dialog. Use this dialog to add, edit or
remove the Room/Location Names that were entered in the System Information dialog.
 To add a Room/Location to the system, enter a name for the new Room/Location in the
Name field and click the Add button.
 To change or edit a Room/Location name, select a Room/Location name from the list,
type the new name in the Name field, and click Rename.
 To remove a Room/Location from the system, select a Room/Location from the list and
click Remove.
Door Phones dialog
The options in the Door Phones dialog (FIG. 10) allow the assignment of up to 4 Door Phones
(door intercom stations) to rooms/locations and audio zones in the system.

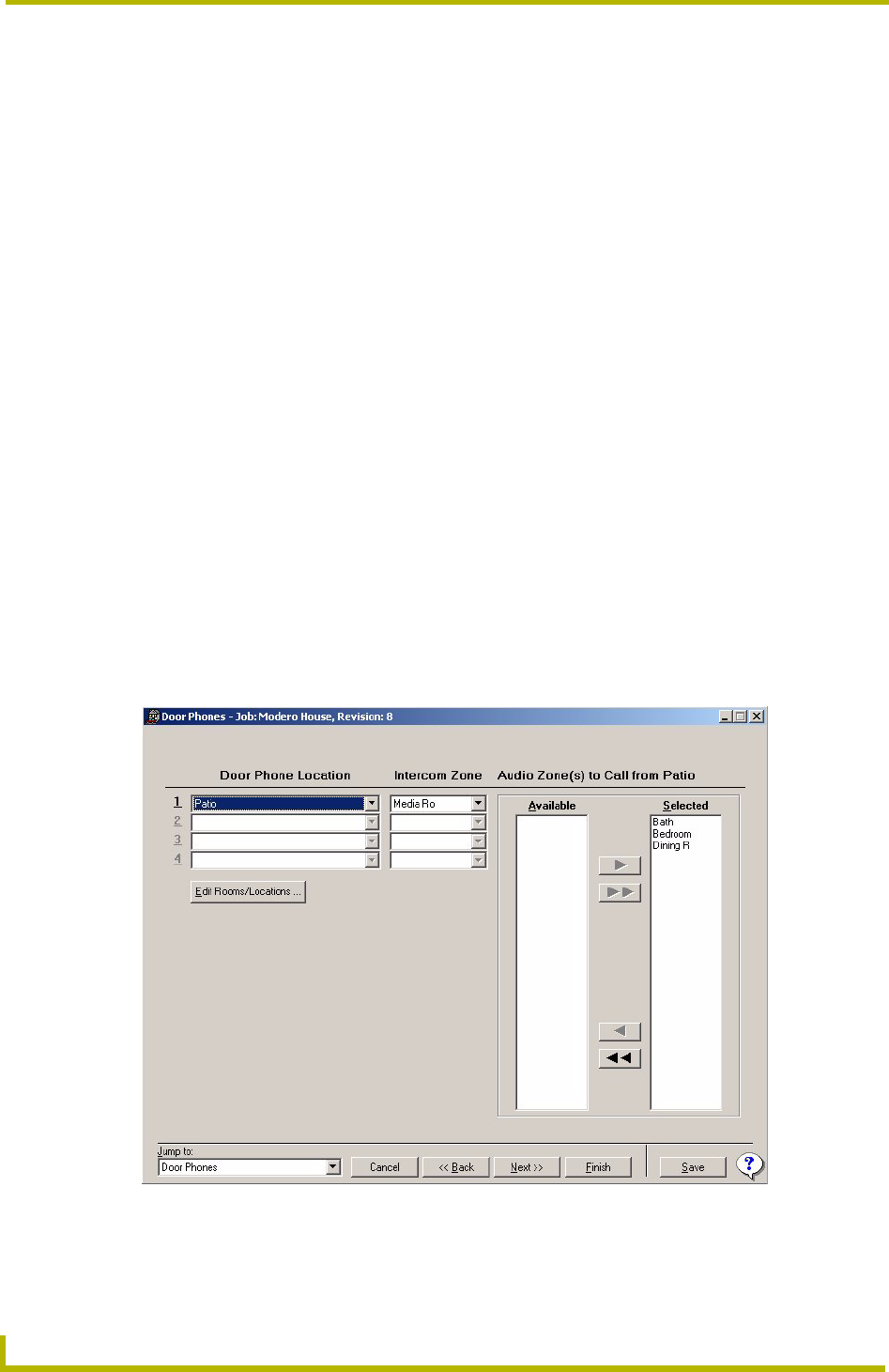

FIG. 10 Door Phones dialog
