SB2 Keypads dialog
The options in the SB2 Keypads dialog (FIG. 9) allow the assignment of SB2 keypads to a room/
location and an audio zone. Design XPress can handle up to 32 SB2 keypads per system.
The fields in this dialog include:
Do not be alarmed if the scene label in the KPD file does not match the one you
assigned in Design XPress. The scene labels will appear on the keypads once you
download them to the Master and reboot it.

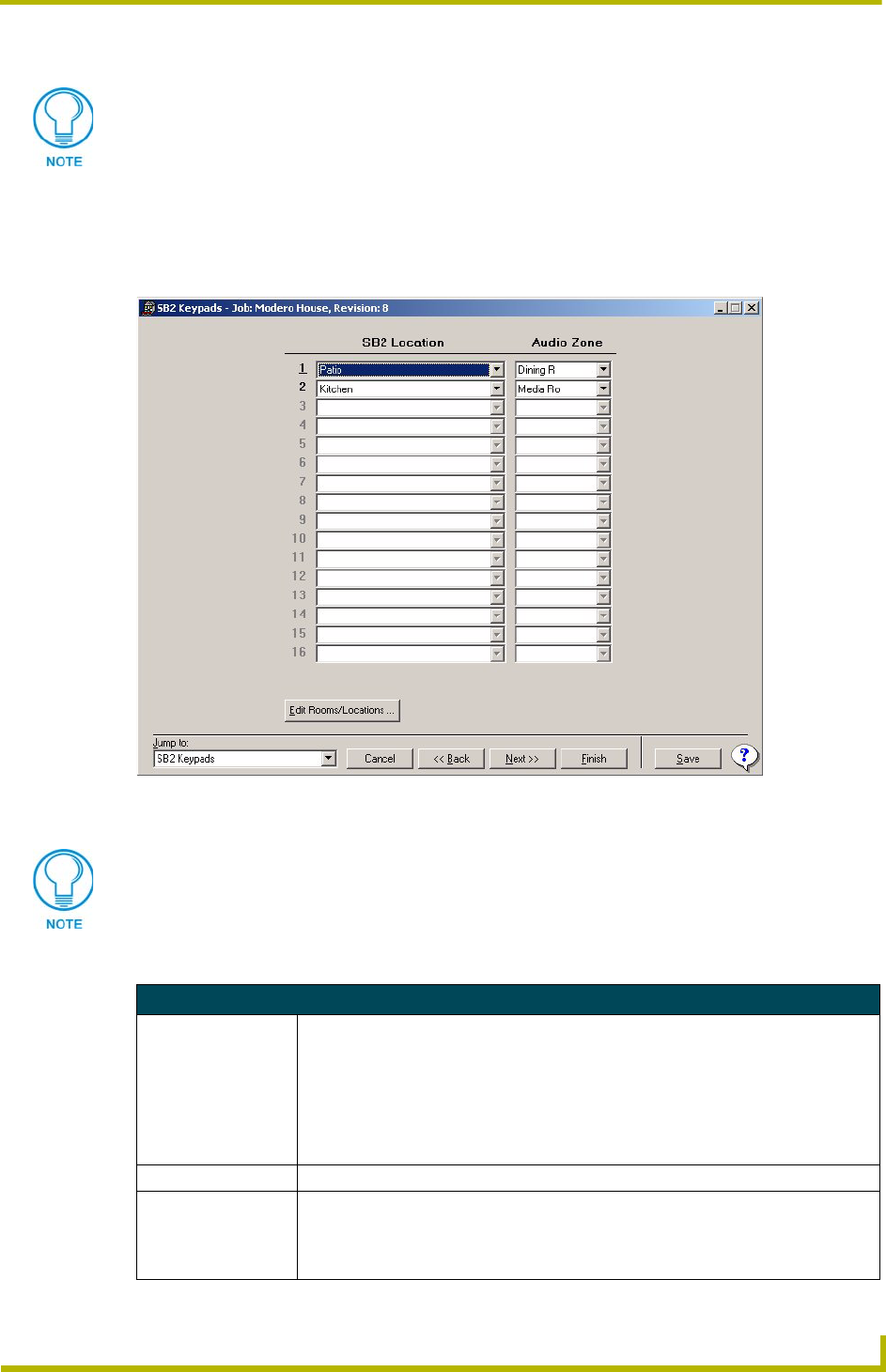

FIG. 9 SB2 Keypads dialog
In Design XPress, SB2 keypads are used for audio zone volume control only.
SB2 Keypads dialog
SB2 Location: Select from a list of Rooms/Locations. No duplicates are allowed. Room/location
names can be added, edited or removed by clicking the Edit Rooms/Locations button.
The list is based on the Room/Location Names entered in the System Information dia-
log.
Note: Room/Location names are limited to 20 alphanumeric characters and can
include hyphens(-) and underscore characters (_). The first 8 characters of every room
must be unique.
Audio Zone: Select an audio zone for each SB2 from the audio zone list box.
Edit Rooms/Locations: To change or edit a room or location name, click the Edit Rooms/Locations button to
invoke the Edit Rooms/ Locations dialog.
Select the room/location name you want to edit from the list (on the right-hand side of
the dialog), manually edit the selected name in the Name field, and click OK.
