 Use the use i!-Weather and use HVAC Sensor radio buttons to specify the source of the
outdoor temperature display on the user interface (panel).
Naming HVAC Zones
The HVAC Zones dialog is used to name the zones for the HVAC system. Note that the HVAC zone
names do not have to correlate to the audio zone names. HVAC zone names are limited to 10
alphanumeric characters.
 The number of zones that are available for naming in this dialog depends on the number
of HVAC Zones specified in the System Information dialog.
 To name each HVAC Zone, click the down arrow to select from a drop-down list of
Rooms/Locations in the system. The contents of these drop-down lists is based on the
Room/Location Names entered in the System Information dialog. You can edit these
names by clicking and manually typing a new name for each HVAC Zone.
DMS Keypads dialog
Use the DMS Keypads dialog (FIG. 8) to specify locations, configure zones and set up scenes for
all DMS keypads in the system (up to 32 total).
The options on the DMS Keypads page are described below:

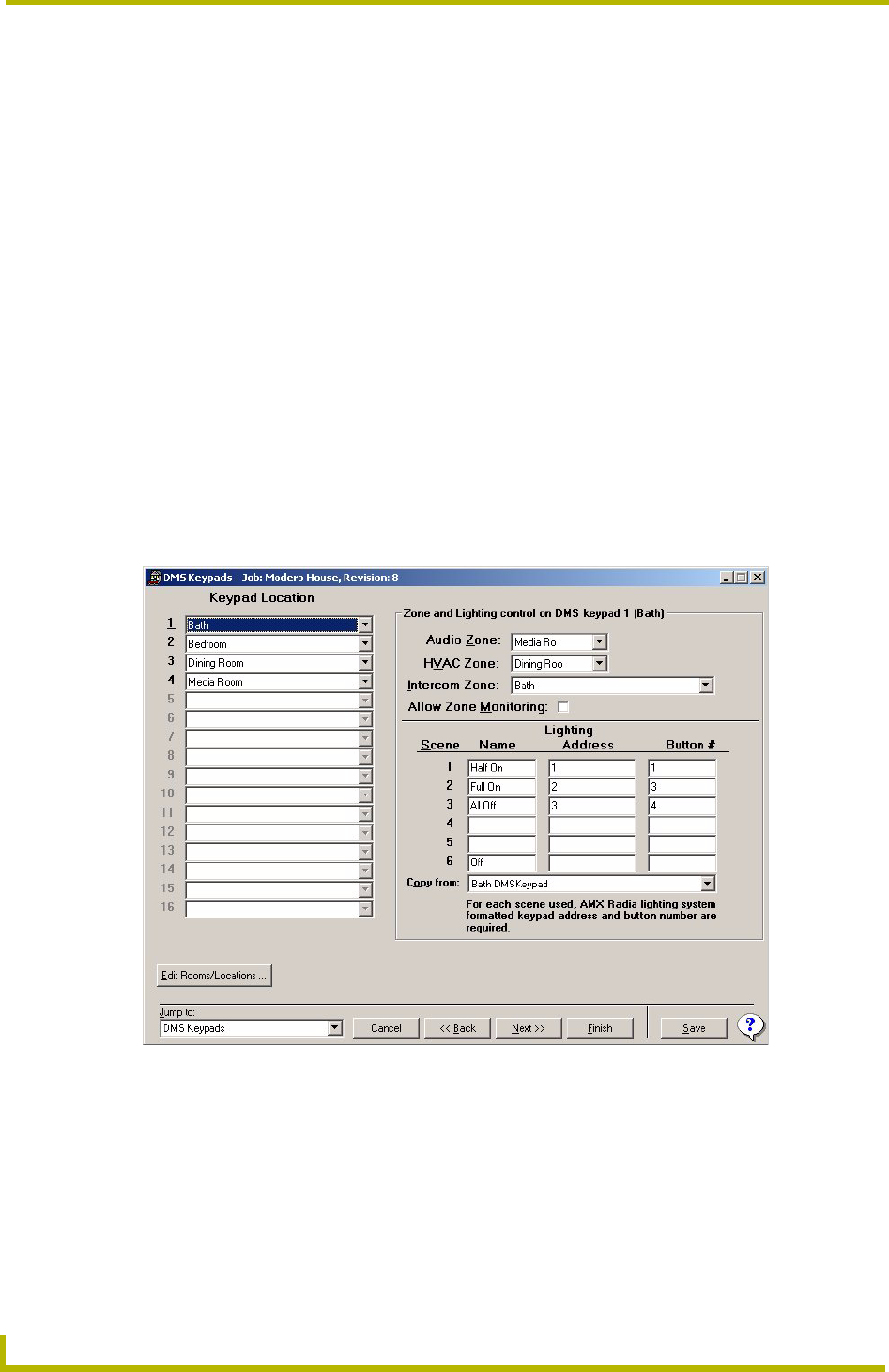

FIG. 8 DMS Keypads dialog
