 You can also enter a Video Source manually (for example "Camera").
HVAC Zones dialog
Use the HVAC Zones dialog (FIG. 7) to name the zones for the HVAC system (up to 32 HVAC
zones in a system). The number of zones that are available for naming in this dialog depends on the
number of HVAC Zones specified in the System Information dialog.
The elements in this dialog include:
The number of zones that are available for naming in this dialog depends on the number of HVAC
Zones specified in the System Information dialog.
 Uncheck the Outdoor Sensor Present checkbox only if there is not an outdoor
temperature/humidity sensor connected to the HVAC system.

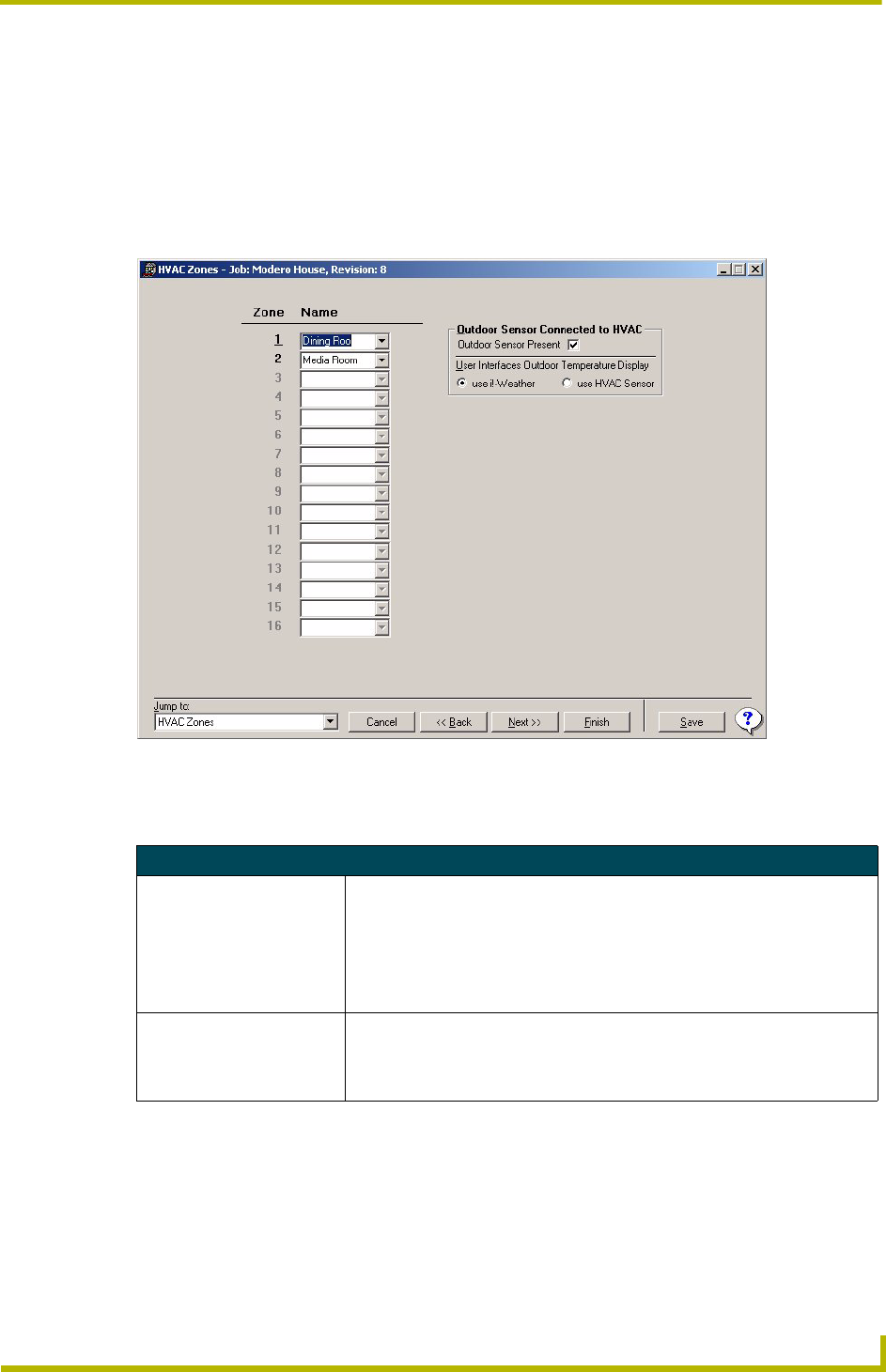

FIG. 7 HVAC Zones dialog
HVAC Zones dialog
• Name To name each HVAC zone, click the down arrow to select from a drop-down list
of Rooms/Locations in the system. You can edit these names by clicking and
manually typing a new name for each zone.
• HVAC zone names are limited to 10 alphanumeric characters.
• HVAC zone names do not have to correlate to the audio zone names.
• Each HVAC zone name must be unique.
• Outdoor Sensor
Connected to HVAC:
Uncheck the Outdoor Sensor Present checkbox only if there is not an outdoor
temperature/humidity sensor connected to the HVAC system.
Use the use i!-Weather and use HVAC Sensor radio buttons to specify the
source of the outdoor temperature display on the user interface (panel).
