Chapter 6: IP Core Architecture 6–17
Avalon-MM Bridge TLPs
December 2013 Altera Corporation Cyclone V Hard IP for PCI Express
User Guide
PCI Express-to-Avalon-MM Address Translation for Endpoints
The PCI Express Avalon-MM Bridge translates the system-level physical addresses,
typically up to 64 bits, to the significantly smaller addresses used by the Application
Layer’s Avalon-MM slave components. You can specify up to six BARs for address
translation when you customize your Hard IP for PCI Express as described in “Base
Address Registers for Function <n>” on page 4–8. The PCI Express Avalon-MM
Bridge also translates the Application Layer addresses to system-level physical
addresses as described in “Avalon-MM-to-PCI Express Address Translation
Algorithm” on page 6–20.
Figure 6–7 provides a high-level view of address translation in both directions.
1 When configured as a Root Port, a single RX Avalon-MM master forwards all RX TLPs
to the Qsys interconnect.
The Avalon-MM RX master module port has an 8-byte datapath in 64-bit mode and a
16-byte datapath in 128-bit mode. The Qsys interconnect fabric manages mismatched
port widths transparently.
As Memory Request TLPs are received from the PCIe link, the most significant bits are
used in the BAR matching as described in the PCI specifications. The least significant
bits not used in the BAR match process are passed unchanged as the Avalon-MM
address for that BAR's RX Master port.
For example, consider the following configuration specified using the Base Address
Registers in the GUI.
1. BAR1:0 is a 64-bit prefetchable memory that is 4KBytes -12 bits

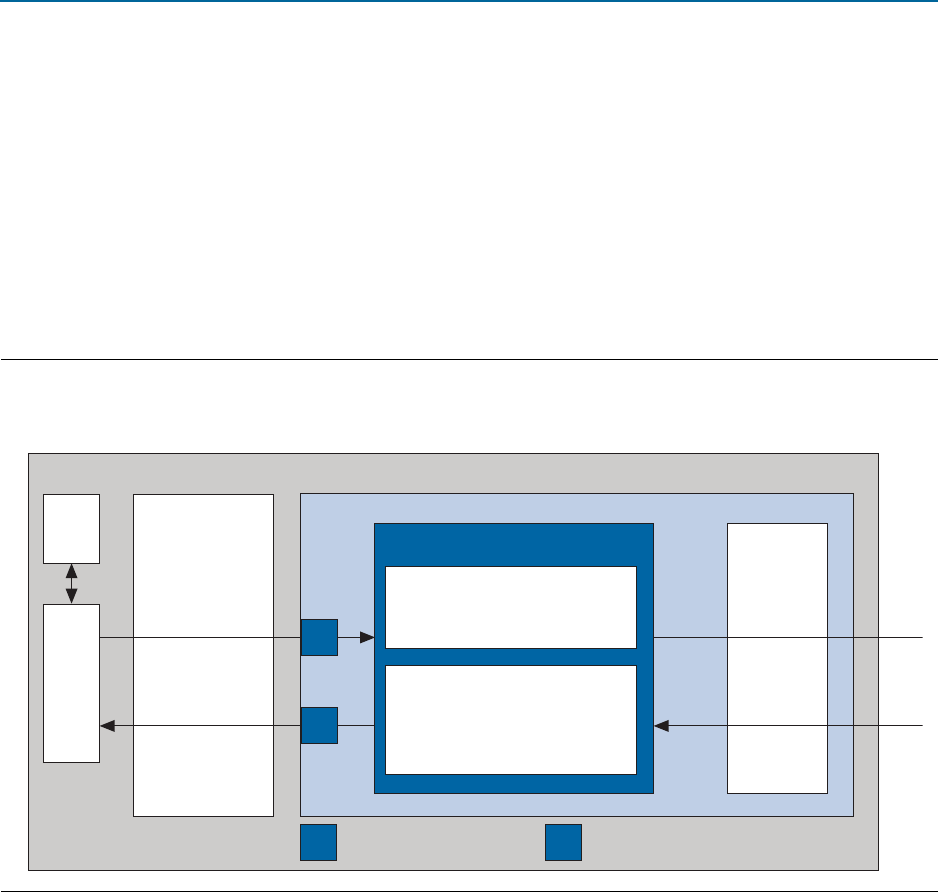

Figure 6–7. Address Translation in TX and RX Directions
Transaction,
Data Link,
and PHY
DMA
Avalon-MM
32-Bit Byte Address
Avalon-MM
32-Bit Byte Address
PCIe TLP
Address
PCIe TLP
Address
Qsys Generated Endpoint with DMA Controller and On-Chip RAM
TX
PCIe
Link
RX
PCIe
Link
PCI Express Avalon-MM Bridge
Interconnect
Avalon-MM Hard IP for PCI Express
Number of address pages (1-512)
Size of address pages
Address Translation Table Parameters
Avalon-MM-to-PCIe Address Translation
BAR (0-5)
BAR Type
BAR Size
PCI Base Address Registers (BAR)
PCIe-to-Avalon-MM Address Translation
On-
Chip
RAM
M
S
= RX Avalon-MM Master
= TX Avalon-MM Slave
S M
