Chapter 6: IP Core Architecture 6–13
PCI Express Avalon-MM Bridge
December 2013 Altera Corporation Cyclone V Hard IP for PCI Express
User Guide
■ Control Register Access (CRA) Slave Module—This optional, 32-bit Avalon-MM
dynamic addressing slave port provides access to internal control and status
registers from upstream PCI Express devices and external Avalon-MM masters.
Implementations that use MSI or dynamic address translation require this port.
When you select the Single dword completer in the GUI for the Avalon-MM Hard IP
for PCI Express, Qsys substitutes a unpipelined, 32-bit RX master port for the 64- or
128-bit full-featured RX master port. For more information about the 32-bit RX master
refer to “Avalon-MM RX Master Block” on page 6–23.

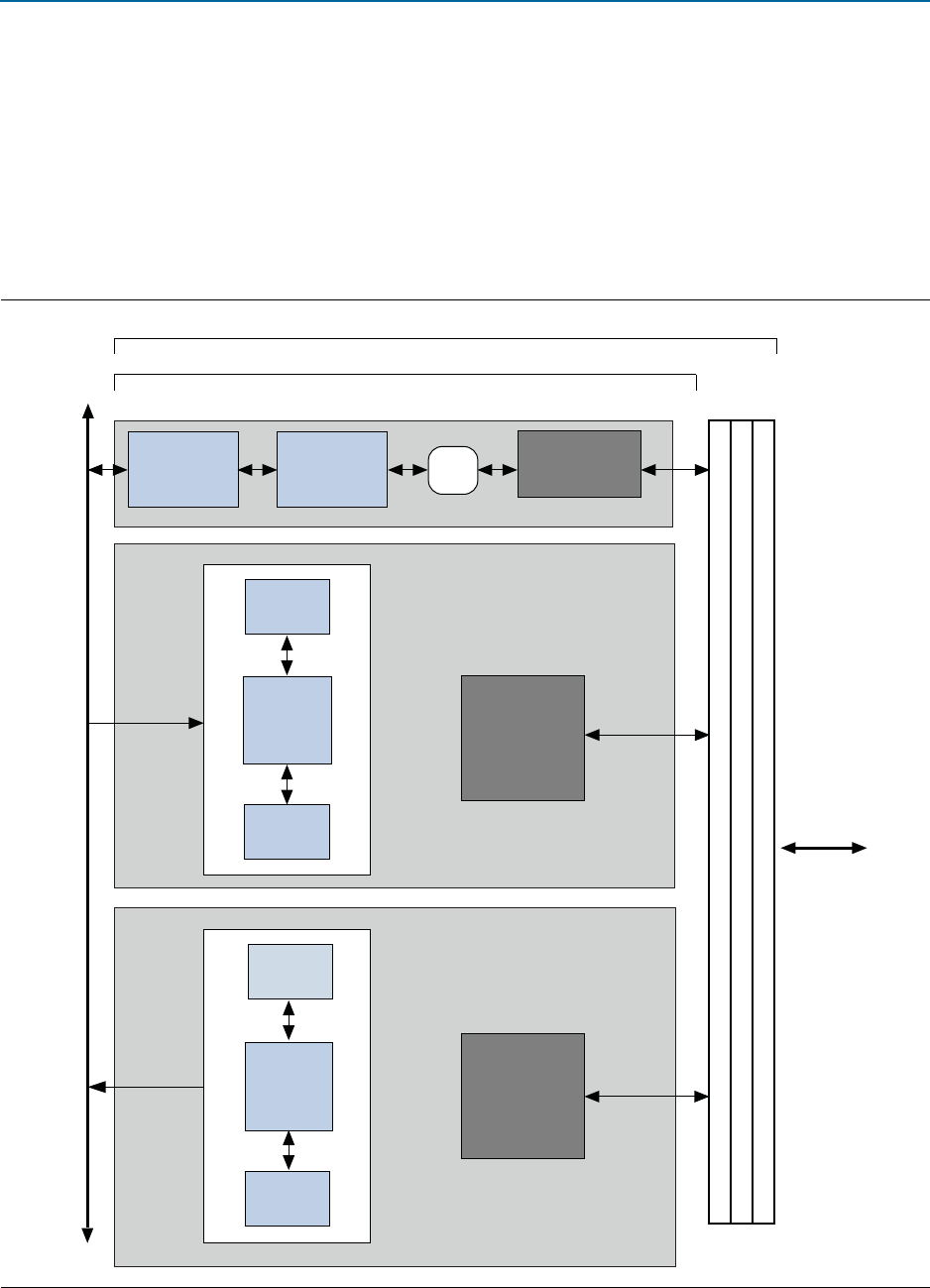

Figure 6–6 shows the block diagram of a PCI Express Avalon-MM bridge.
Figure 6–6. PCI Express Avalon-MM Bridge
Transaction Layer
PCI Express
Tx Controller
PCI Express
Rx Controller
Data Link Layer
Physical Layer
PCI Express MegaCore Function
Tx Slave Module
Control & Status
Reg (CSR)
Sync
Avalon Clock Domain PCI Express Clock Domain
Rx Master ModuleRx Master Module
PCI Express Avalon-MM Bridge
System Interconnect Fabric
PCI Link
CRA Slave Module
Address
Translator
Avalon-MM
Tx Read
Response
Avalon-MM
Tx Slave
Avalon-MM
Rx Read
Response
Avalon-MM
Rx Master
MSI or
Legacy Interrupt
Generator
Control Register
Access Slave
Address
Translator
