4. After Qsys reports Generate Completed in the Generate progress box title, click
Close.
5. On the File menu, click Save. and type the file name
ep_g1x4.qsys
.
Table 3–14 lists the directories that are generated in your Quartus II project directory.
Qsys creates a top-level testbench named
<project_dir>/ep_g1x4/testbench/
ep_g1x4_tb.qsys. This testbench connects an appropriate BFM to each exported
interface. Qsys generates the required files and models to simulate your PCI Express
system.
The simulation of the design example uses the following components and software:
■ The system you created using Qsys
■ A testbench created by Qsys in the <project_dir>/ep_g1_x4/testbench directory. You
can view this testbench in Qsys by opening
<project_dir>/ep_g1_x4/testbench/
s5_avmm_tb.qsys which shown in Figure 3–2.
■ The ModelSim software
1 You can also use any other supported third-party simulator to simulate your design.
Qsys creates IP functional simulation models for all the system components. The IP
functional simulation models are the .vo or .vho files generated by Qsys in your
project directory.
Table 3–14. Qsys System Generated Directories
Directory Location
Qsys system <project_dir>/ep_g1x4
Testbench <project_dir>/ep_g1x4/testbench
Synthesis <project_dir>/ep_g1x4/synthesis

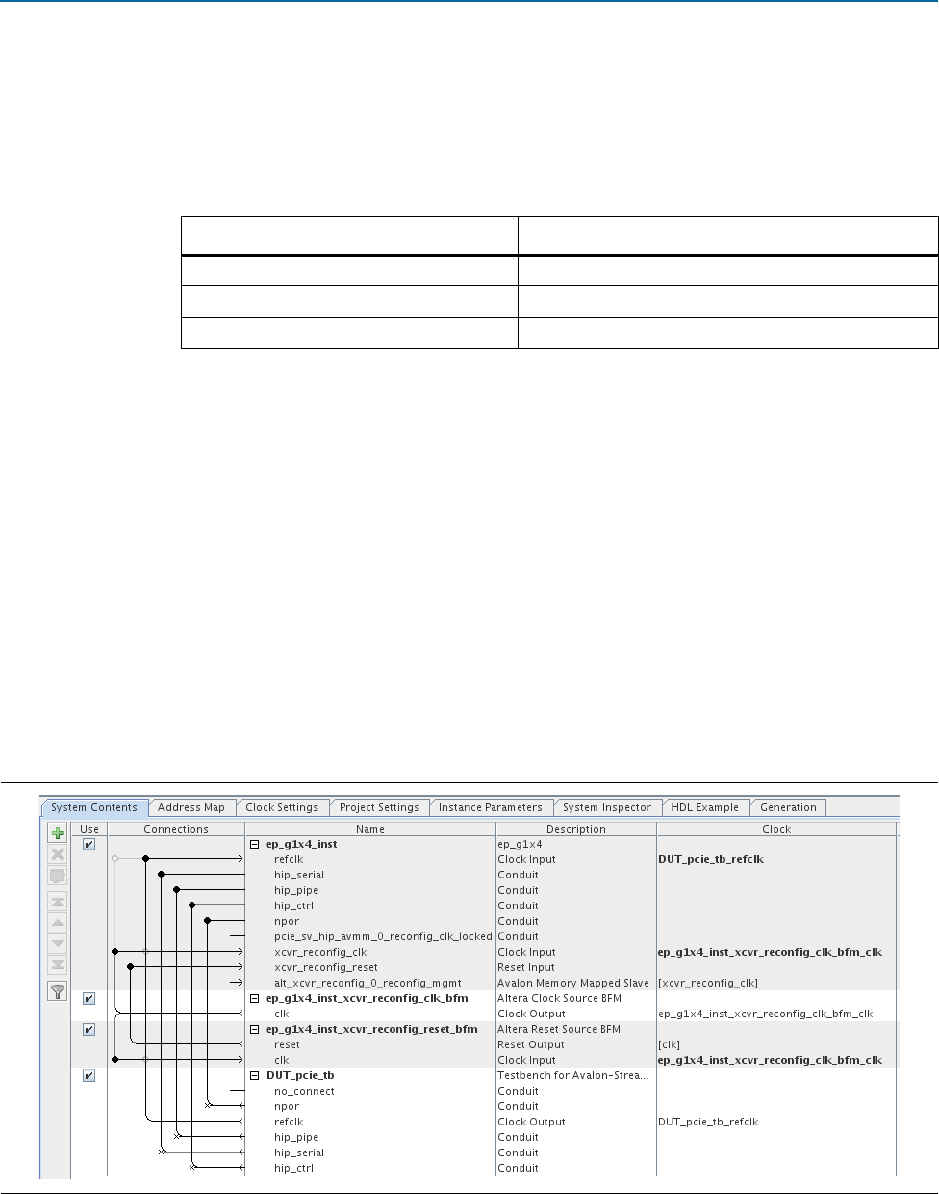

Figure 3–2. Qsys Testbench for the PCI Example Design
