Chapter 2: Getting Started with the Cyclone V Hard IP for PCI Express 2–7
Customizing the Endpoint in the MegaWizard Plug-In Manager Design Flow
December 2013 Altera Corporation Cyclone V Hard IP for PCI Express
User Guide
2. Navigate to the Qsys system in the altera_pcie_<device>_hip_ast subdirectory.
3. Click pcie_de_gen1_x4_ast64.qsys to bring up the Qsys design. Figure 2–3
illustrates this Qsys system.

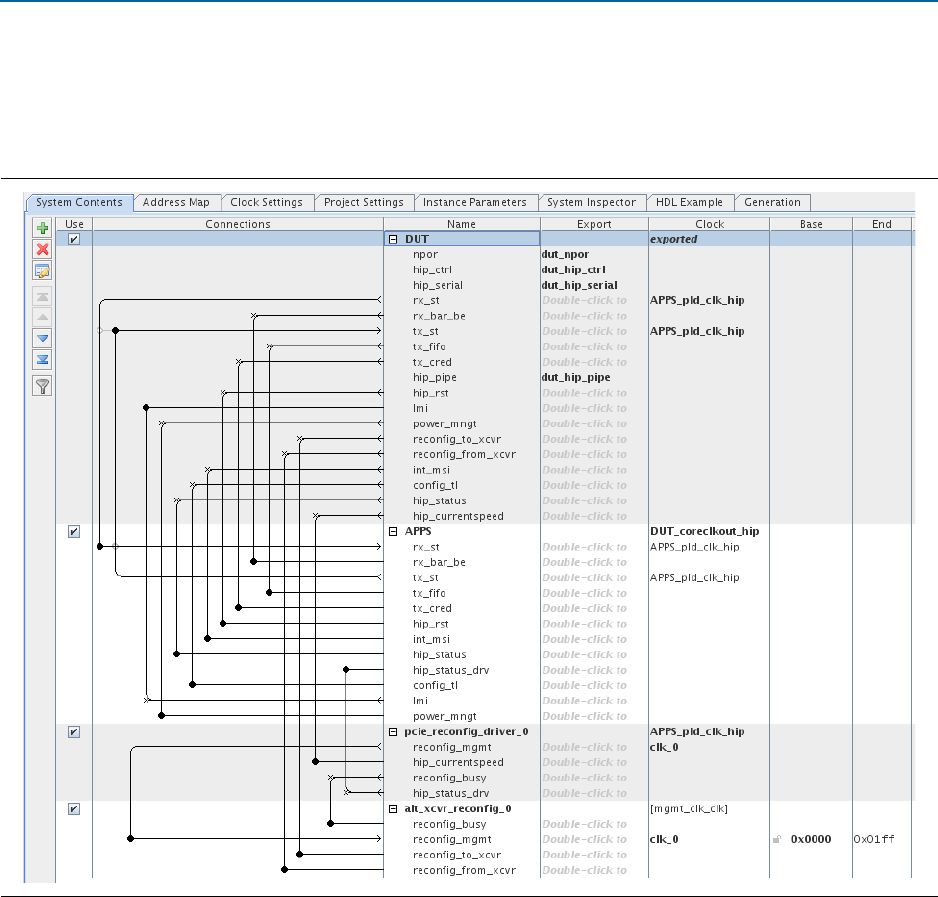

Figure 2–3. Qsys System Connecting the Endpoint Variant and Chaining DMA Testbench
