Chapter 9: Reset and Clocks 9–5
Clocks
December 2013 Altera Corporation Cyclone V Hard IP for PCI Express
User Guide
The Hard IP contains a clock domain crossing (CDC) synchronizer at the interface
between the PHY/MAC and the DLL layers which allows the Data Link and
Transaction Layers to run at frequencies independent of the PHY/MAC and provides
more flexibility for the user clock interface. Depending on system requirements, you
can use this additional flexibility to enhance performance by running at a higher
frequency for latency optimization or at a lower frequency to save power.
Figure 9–5 illustrates the clock domains.
As Figure 9–5 indicates, there are three clock domains:
■ pclk
■ coreclkout_hip
■ pld_clk
pclk
The transceiver derives
pclk
from the 100 MHz
refclk
signal that you must provide
to the device. The PCI Express Base Specification 2.1 requires that the
refclk
signal
frequency be 100 MHz
300 PPM; however, as a convenience, you can also use a
reference clock that is 125 MHz
300 PPM.

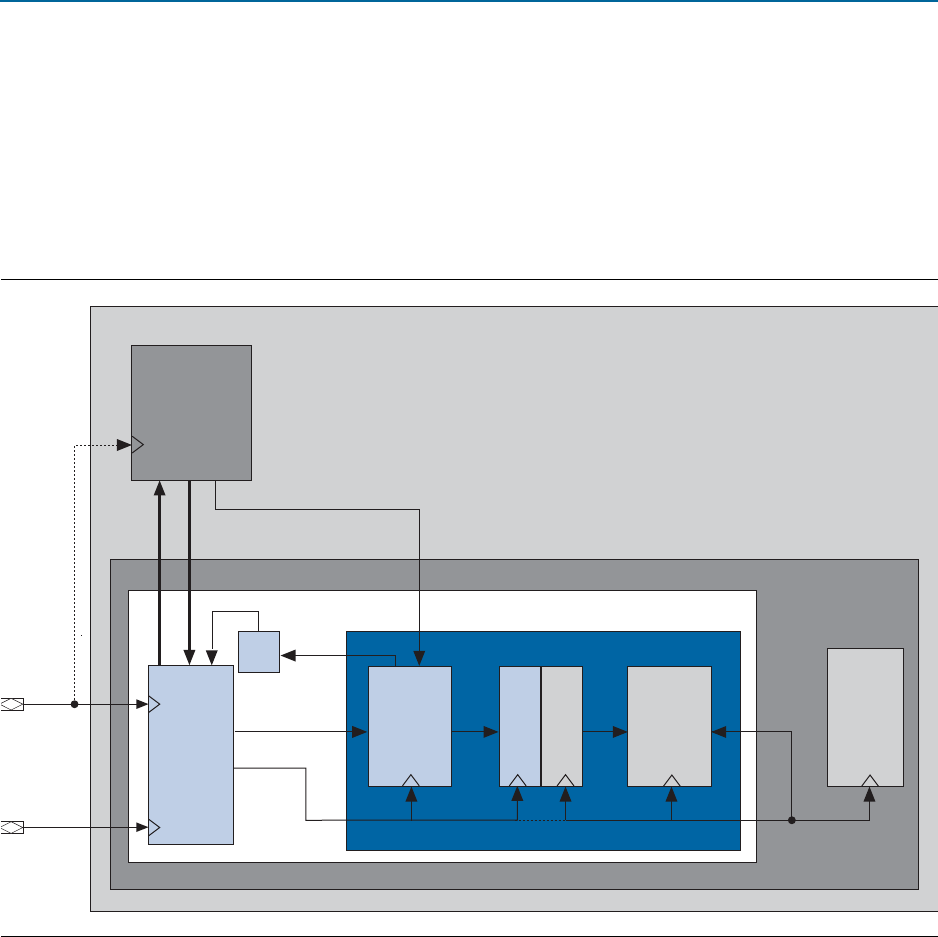

Figure 9–5. Cyclone V Hard IP for PCI Express Clock Domains
100 MHz
(or 125 MHz)
100 MHz
(or 125 MHz)
Required for CvP
Hard IP for PCI Express
PHY/MAC
Clock
Domain
Crossing
(CDC)
Data Link
and
Transaction
Layers
125 or 250 MHz
pclk
refclk
reconfig_clk
data
PHY IP
Core for
PCIe
top_serdes.v
altpcie_a5_hwtcl.v
top.v
top_hw.v
(coreclkout is derived from p_clk)
reconfig_fromxcvr[<n> -1:0] reconfig_toxcvr[<n> -1:0]
reconfig_busy
rs_serdes
mgmt_clk_clk
coreclkout_hip
(62.5 or 125 MHz)
coreclkout
Application
Layer
Transceiver
Reconfiguration
Controller
pld_clk
(TX/RX
PCS/PMA)
Reset
