Physical Layer Interface Signals
December 2013 Altera Corporation Cyclone V Hard IP for PCI Express
User Guide
f
1 In all figures channels and PLLs that are gray are unused.
■
1 In all figures channels and PLLs that are gray are unused.
CycloneV devices include one or two Hard IP for PCI Express IP Cores. The following
figures illustrates the placement of the Hard IP for PCIe IP cores, transceiver banks
and channels for the CycloneV devices. Note that the bottom left IP core includes the
CvP functionality.
In the following figure, the Hard IP for PCI Express uses channel 1 and channel 2 of
GXB_L0 and channel 4 and channel 5 of GXB_L1. Devices with a single Hard IP for
PCIe IP Core only include the bottom left core.

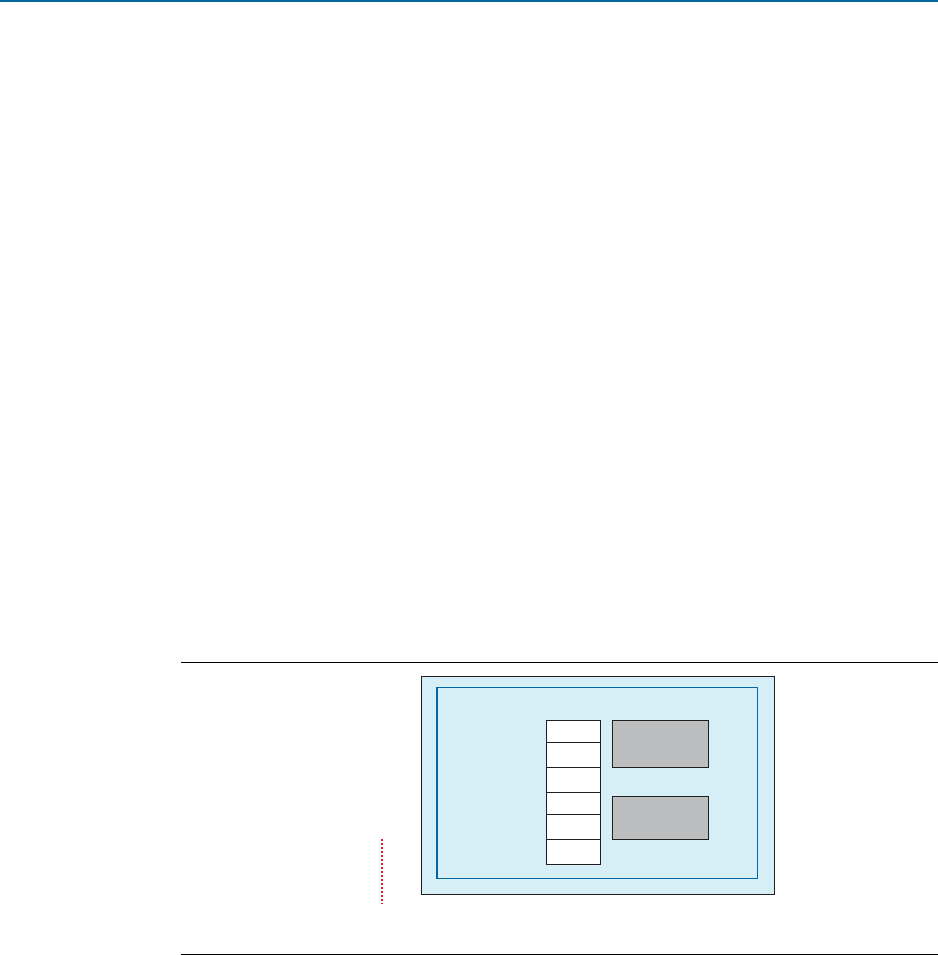

Figure 7–1. Channel and Hard IP for PCI Express IP Core Locations in CycloneGX and GT Devices
GXB_L1
GXB_L0
Transceiver
Bank Names
PCIe Hard IP
with CvP
Ch 2
Ch 1
Ch 0
Ch 5
Ch 4
Ch 3
6 Ch
PCIe Hard IP
