User guide

Chapter 1: Datasheet 1–5
Debug Features
December 2013 Altera Corporation Cyclone V Hard IP for PCI Express
User Guide
Optimized for Altera devices, the Cyclone V Hard IP for PCI Express supports all
memory, I/O, configuration, and message transactions. It has a highly optimized
Application Layer interface to achieve maximum effective throughput. You can
customize the Hard IP to meet your design requirements using either the
MegaWizard
Plug-In Manager or the Qsys design flow.

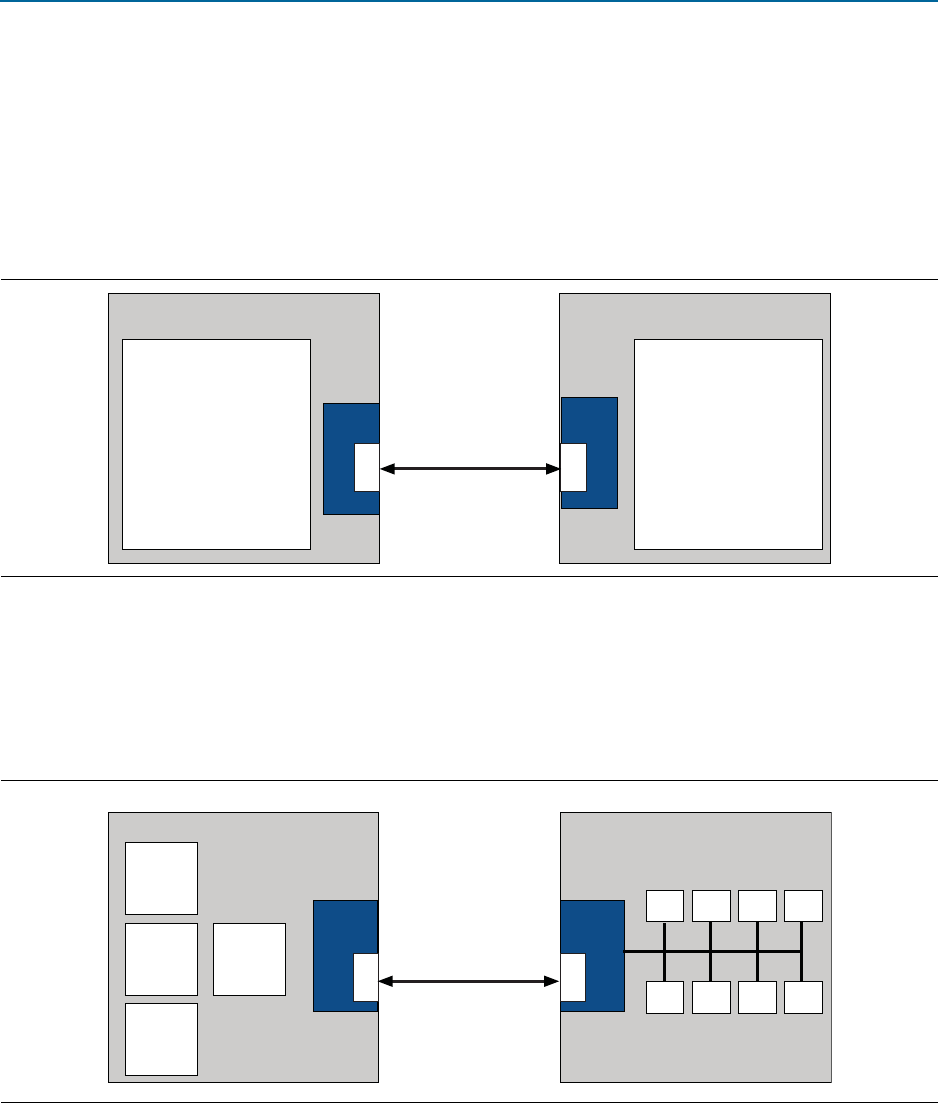

Figure 1–1 shows a PCI Express link between two Cyclone V FPGAs. One is
configured as a Root Port and the other as an Endpoint.
Figure 1–2 shows a PCI Express link between two Altera FPGAs. One is configured as
a Root Port and the other as a multi-function Endpoint. The FPGA serves as a custom
I/O hub for the host CPU. In the Cyclone V FPGA, each peripheral is treated as a
function with its own set of Configuration Space registers. Eight multiplexed
functions operate using a single PCI Express link.
Debug Features
The Cyclone V Hard IP for PCI Express includes debug features that allow
observation and control of the Hard IP for faster debugging of system-level problems.
For more information about debugging refer to Chapter 19, C**Debugging.
Figure 1–1. PCI Express Application with a Single Root Port and Endpoint
Altera FPGA
User Application
Logic
PCIe
Hard IP
RP
PCIe
Hard IP
EP
User Application
Logic
PCI Express Link
Altera FPGA
Figure 1–2. PCI Express Application with an Endpoint Using the Multi-Function Capability
Arria V or Cyclone V FPGA
PCIe Hard
IP Multi-
Function
EP
CAN GbE ATA PCI
Altera FPGA
PCIe
Hard IP
RP
Host
CPU
Memory
Controller
Peripheral
Controller
Peripheral
Controller
USB
SPI GPIO
I2C
PCI Express Link
