Data Alignment and Timing for the 64-Bit Avalon-ST TX Interface
Figure 7–18 illustrates the mapping between Avalon-ST TX packets and PCI Express
TLPs for 3 dword header TLPs with non-qword aligned addresses with a 64-bit bus.
(Figure 7–4 on page 7–6 illustrates the storage of non-qword aligned data.)
Non-qword aligned addresses occur when address[2] is set. When address[2] is set,
tx_st_data[63:32]
contains
Data0
and
tx_st_data[31:0]
contains dword
header2
.
Figure 7–19 illustrates the mapping between Avalon-ST TX packets and PCI Express
TLPs for a four dword header with qword aligned addresses with a 64-bit bus.
ko_cpl_spc_data
12 O
component
specific
ko_cpl_spc_data
is a static signal that reflects the total
number of 16 byte completion data units that can be stored
in the completion RX buffer. The total read data from all
outstanding MRd requests must be less than this value to
prevent RX FIFO overflow. The Application Layer can use
this signal to build circuitry to prevent RX buffer overflow
for completion data. Endpoints must advertise infinite
space for completion data; however, RX buffer space is
finite.
Note to Table 7–4:
(1) To be Avalon-ST compliant, your application have a
readyLatency
of 1 or 2 cycles.
Table 7–4. 64- or 128-Bit Avalon-ST TX Datapath (Part 4 of 4)
Signal Width Dir
Avalon-ST
Type
Description

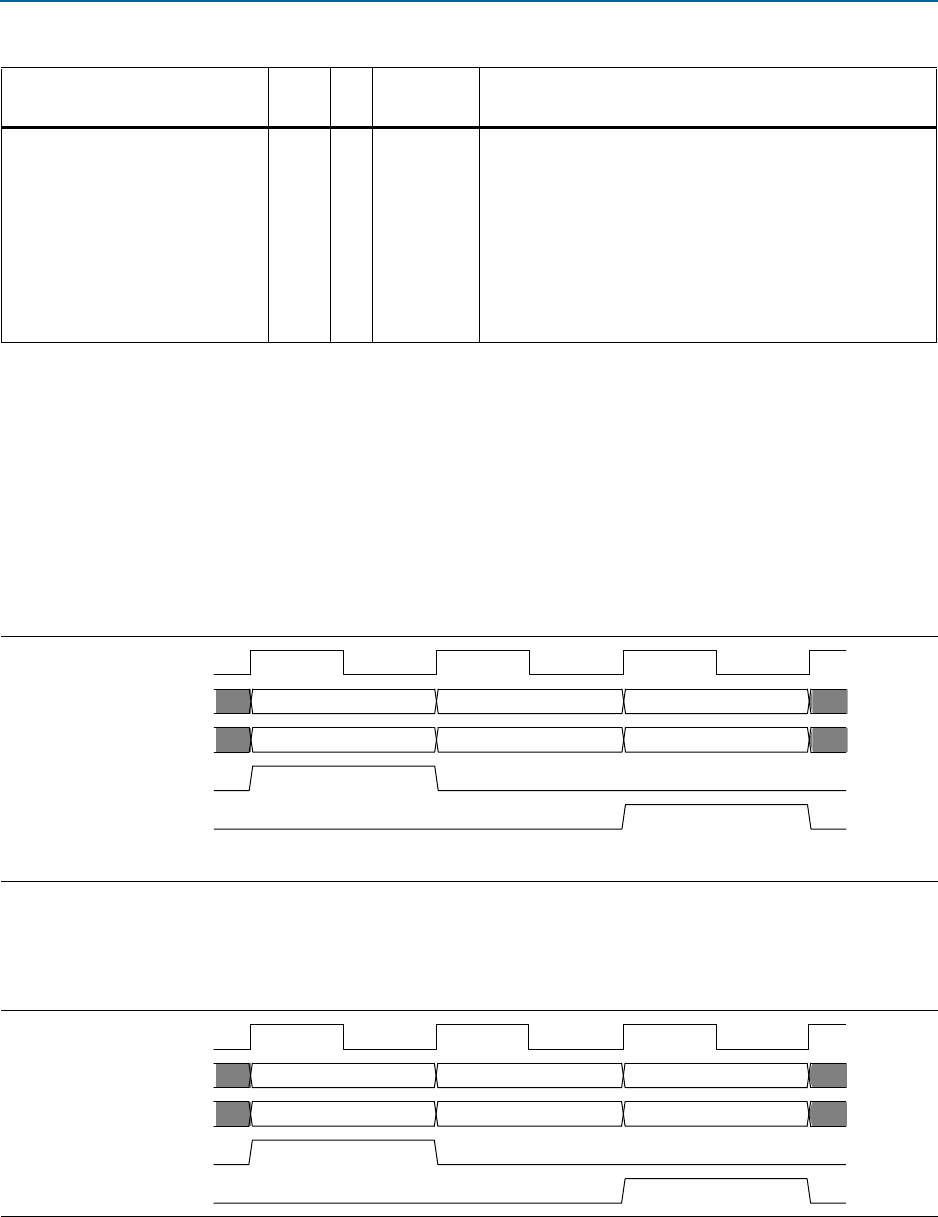

Figure 7–18. 64-Bit Avalon-ST tx_st_data Cycle Definition for 3-Dword Header TLP with Non-Qword Aligned Address
coreclkout
tx_st_data[63:32]
tx_st_data[31:0]
tx_st_sop
tx_st_eop
Header1 Data0 Data2
Header0 Header2 Data1
Figure 7–19. 64-Bit Avalon-ST tx_st_data Cycle Definition for 4-Dword TLP with Qword Aligned Address
coreclkout
tx_st_data[63:32]
tx_st_data[31:0]
tx_st_sop
tx_st_eop
Header1 Header3 Data1
Header0 Header2 Data0
