7–10 Chapter 7: IP Core Interfaces
Cyclone V Hard IP for PCI Express
Cyclone V Hard IP for PCI Express December 2013 Altera Corporation
User Guide

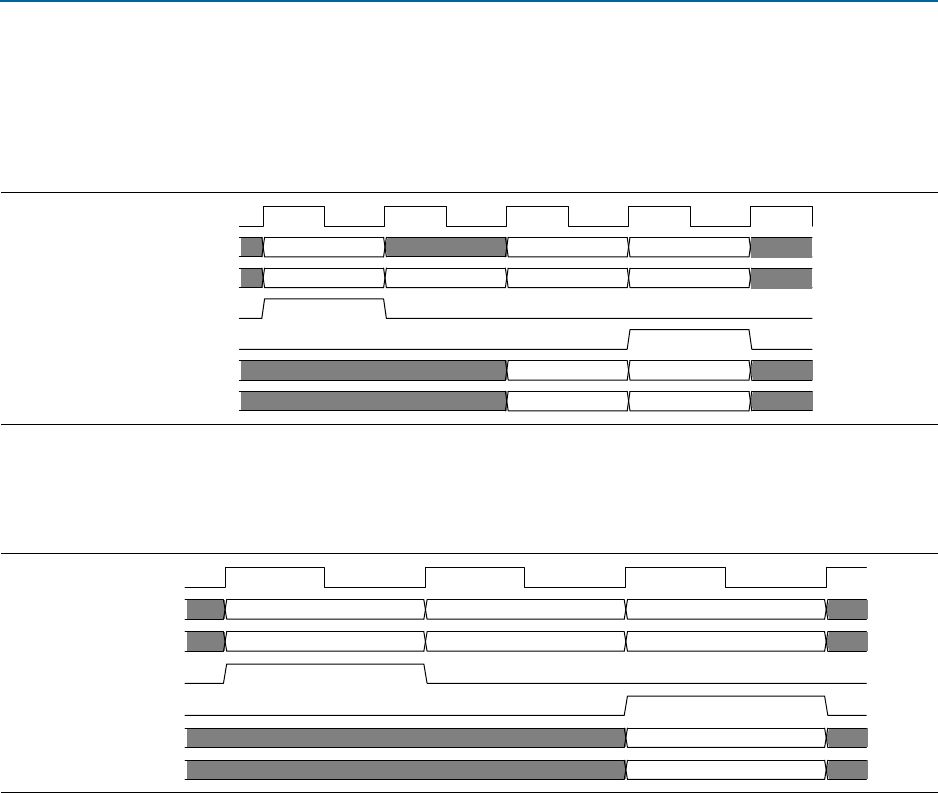

Figure 7–6 illustrates the mapping of Avalon-ST RX packets to PCI Express TLPs for a
three dword header with qword aligned addresses. Note that the byte enables
indicate the first byte of data is not valid and the last dword of data has a single valid
byte.
Figure 7–7 shows the mapping of Avalon-ST RX packets to PCI Express TLPs for TLPs
for a four dword header with qword aligned addresses with a 64-bit bus.
Figure 7–6. 64-Bit Avalon-ST rx_st_data<n> Cycle Definition for 3-Dword Header TLP with Qword Aligned Address
rx_st_data[63:32]
rx_st_data[31:0]
rx_st_sop
rx_st_eop
rx_st_be[7:4]
rx_st_be[3:0]
Header 1 Data1 Data3
Header 0 Header2 Data0 Data2
F 1
FE
coreclkout
Figure 7–7. 64-Bit Avalon-ST rx_st_data<n> Cycle Definitions for 4-Dword Header TLP with Qword Aligned Address
coreclkout
rx_st_data[63:32]
rx_st_data[31:0]
rx_st_sop
rx_st_eop
rx_st_be[7:4]
rx_st_be[3:0]
header1 header3 data1
header0 header2 data0
F
F
