Specifications

THE DATA IN THIS DOCUMENT INCORPORATES
PROPRIETARY RIGHTS OF ELECTROSONIC INC. ANY
PARTY ACCEPTING THIS DOCUMENT DOES SO IN
CONFIDENCE & AGREES THAT IT SHALL NOT BE
DUPLICATED IN WHOLE, OR IN PART NOR DISCLOSED
TO OTHERS, WITHOUT THE WRITTEN CONSENT OF
ELECTROSONIC INC.
2012 ELECTROSONIC INC.
ISSUE
REVISIONS
DESIGN INTENT
OCT 15, 2012
DEC100167
c
S. COE
EDC
AV1.02
AV PLANS
ROOM A
1/4" = 1'-0"
GENERAL SHEET NOTES:
• DO NOT SCALE DRAWING.
SHEET SPECIFIC NOTES:
1

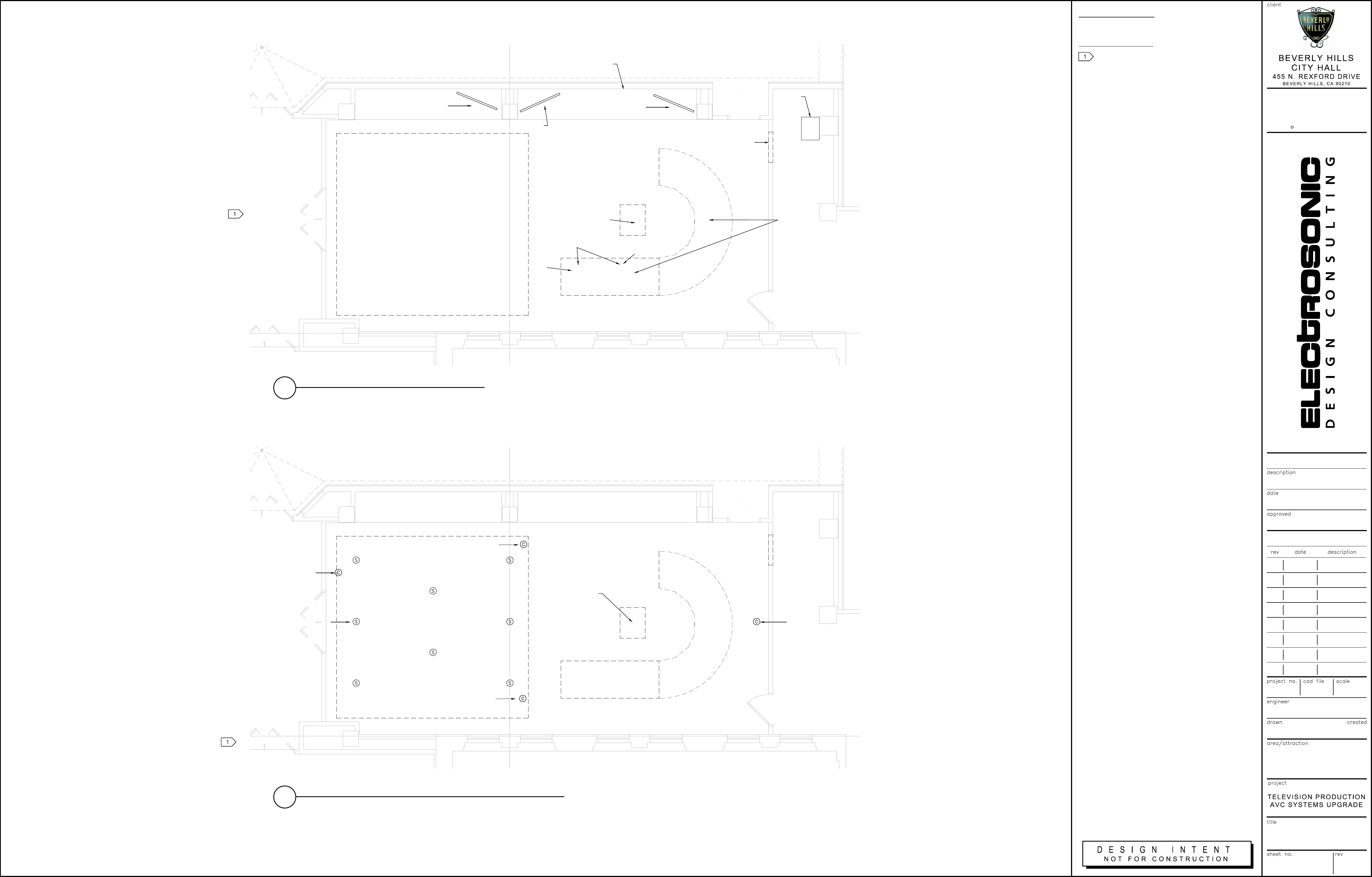

ROOM A AV FLOOR PLAN
SCALE: 1/4" = 1'-0"
ROOM LAYOUT TO BE VERIFIED BY AV
CONTRACTOR - DO NOT DIMENSION FROM
THIS DRAWING. COMMISSION DESKS,
STAFF TABLES & EQUIPMENT ARE
APPROXIMATE SKETCHES ONLY IN THIS
DRAWING, AND ARE TO HELP CONVEY
DESIGN INTENT ONLY.
NO AS BUILT DRAWINGS WERE AVAILABLE
AT THE TIME OF THIS DESIGN FOR DETAILS
OF PREVIOUSLY INSTALLED JUNCTION BOX
AND CONDUIT/CABLE RUNS, WHICH ARE TO
BE RE-USED. AV CONTRACTOR SHALL
PERFORM THEIR OWN SITE SURVEY.
1
ROOM A AV REFLECTED CEILING PLAN
SCALE: 1/4" = 1'-0"
NEW 55" LED-LCD
NEW 55" LED-LCD
NEW 55" LED-LCD
AV RACK LOCATION
MICROPHONES X (10)
CLERK
STAFF
COMMISSION
PODIUM
AMX PC INPUT PANEL
MICROPHONE
VIA FLOOR BOX
AMX TOUCH SCREEN
APPROXIMATE LOCATION OF NEW PTZ CAMERA
COORDINATE & TEST LOCATION WITH OWNER
APPROXIMATE LOCATION OF NEW PTZ CAMERA
COORDINATE & TEST LOCATION WITH OWNER
APPROXIMATE LOCATION OF NEW PTZ CAMERA
COORDINATE & TEST LOCATION WITH OWNER
APPROXIMATE LOCATION OF NEW PTZ CAMERA
COORDINATE & TEST LOCATION WITH OWNER
THERE IS A DOOR HERE
PUBLIC SEATING
S = APPROXIMATE LOCATIONS OF CEILING SPEAKERS
REPLACE SPEAKERS WITH NEW MODEL
CURRENT CABLING UNKNOWN
REMOVE EXISTING
PROJECTION SCREEN
REMOVE EXISTING CEILING
MOUNT PROJECTOR
SYMPODIUM &
DVD RECRDER
