DESIGN INTENT
OCT 15, 2012
DEC100167
c
S. COE
EDC
AV1.01
AV PLANS
COUNCIL CHAMBERS
1/4" = 1'-0"
GENERAL SHEET NOTES:
• DO NOT SCALE DRAWING.
SHEET SPECIFIC NOTES:
1

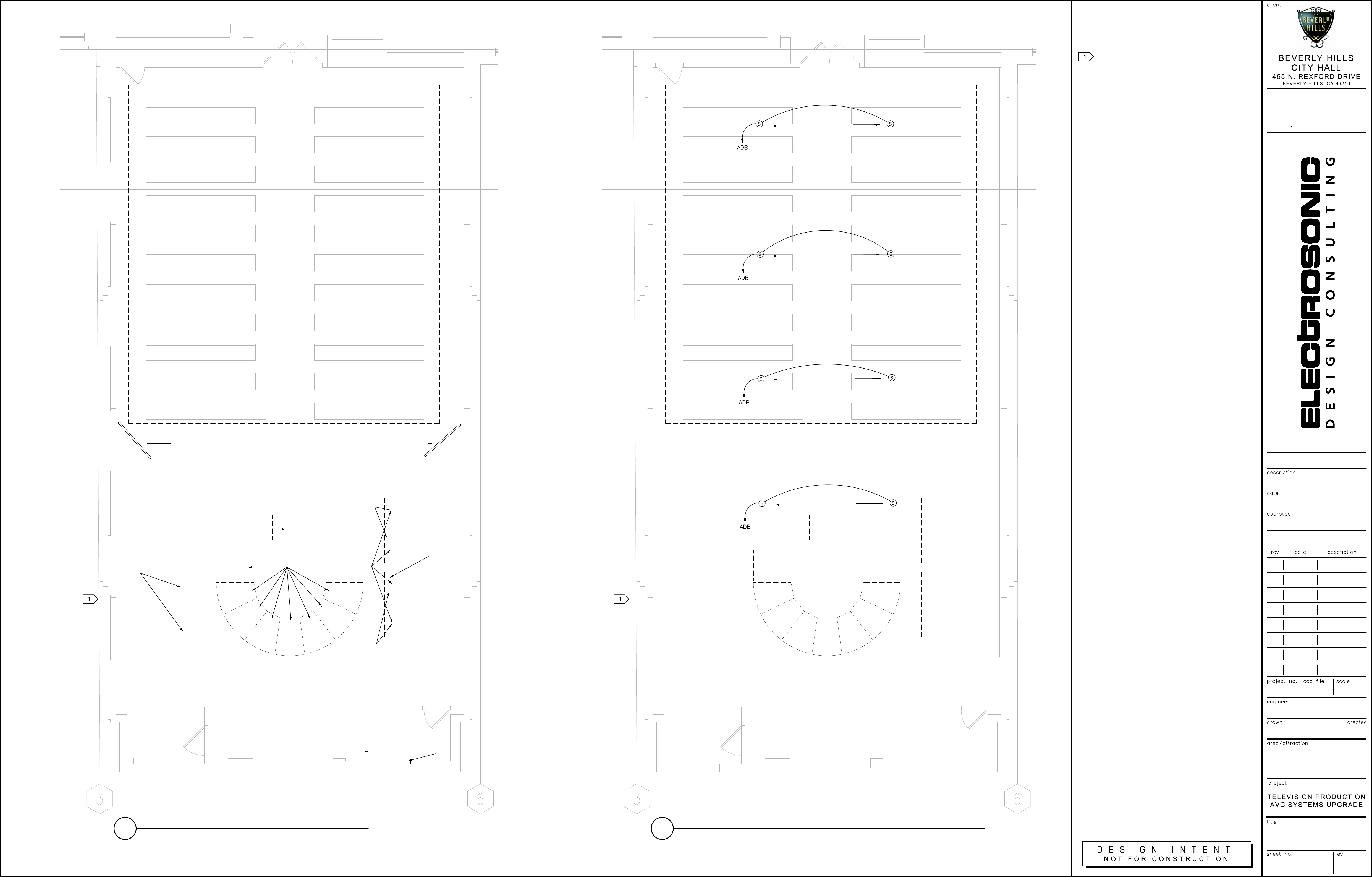

MAIN CHAMBER AV FLOOR PLAN
SCALE: 1/4" = 1'-0"
ROOM LAYOUT TO BE VERIFIED BY AV
CONTRACTOR - DO NOT DIMENSION FROM
THIS DRAWING. COUNCIL DESKS, STAFF
TABLES & EQUIPMENT ARE APPROXIMATE
SKETCHES ONLY IN THIS DRAWING, AND
ARE TO HELP CONVEY DESIGN INTENT
ONLY.
SEE PRO-SOUND AS BUILT DRAWINGS
FROM AUGUST 2001 FOR DETAILS OF
PREVIOUSLY INSTALLED JUNCTION BOX
AND CONDUIT/CABLE RUNS, WHICH ARE TO
BE RE-USED. AV CONTRACTOR SHALL
PERFORM THEIR OWN SITE SURVEY.
MIC & LCD
65" LED-LCD DISPLAY
REPLACE CURRENT DISPLAY
65" LED-LCD DISPLAY
REPLACE CURRENT DISPLAY
PODIUM MIC, NEW SMART PODIUM SCREEN
EXISTING FLOOR BOX UNDERNEATH PODIUM
COUNCIL DESKS
CITY
CLERK
STAFF
TABLE
FIXED
STAFF
TABLE
PORTABLE
PODIUM
1
MAIN CHAMBER AV REFLECTED CEILING PLAN
SCALE: 1/4" = 1'-0"
EXISTING CEILING
SPEAKER PAIR
MIC & LCD
EXISTING AV RACK
NORTH
TABLE
LCD
EXISTING ADB
EXISTING CEILING
SPEAKER PAIR
EXISTING CEILING
SPEAKER PAIR
EXISTING CEILING
SPEAKER PAIR
AMX PC INPUT PANEL
AMX PC INPUT PANEL
AMX TOUCH SCREEN
PUBLIC SEATING
