XC-EM Enhanced Master Card
Installation
To install the AXC-EM:
1. Hold the card by the tab end and slide the card into one of the first two slots of the frame.
 If it is the primary card, insert it into slot MC1.
 If it is the secondary (backup) card, insert it into slot MC2.
Make sure the card is correctly positioned in the guide slot.
2. Gently push the card in until it is firmly seated in the card connector slot. You do not have to
disconnect the power to the CardFrame when you install the card. When power is applied to
the card, the green LED lights.
3. Load the Axcess program.
AXLink Wiring

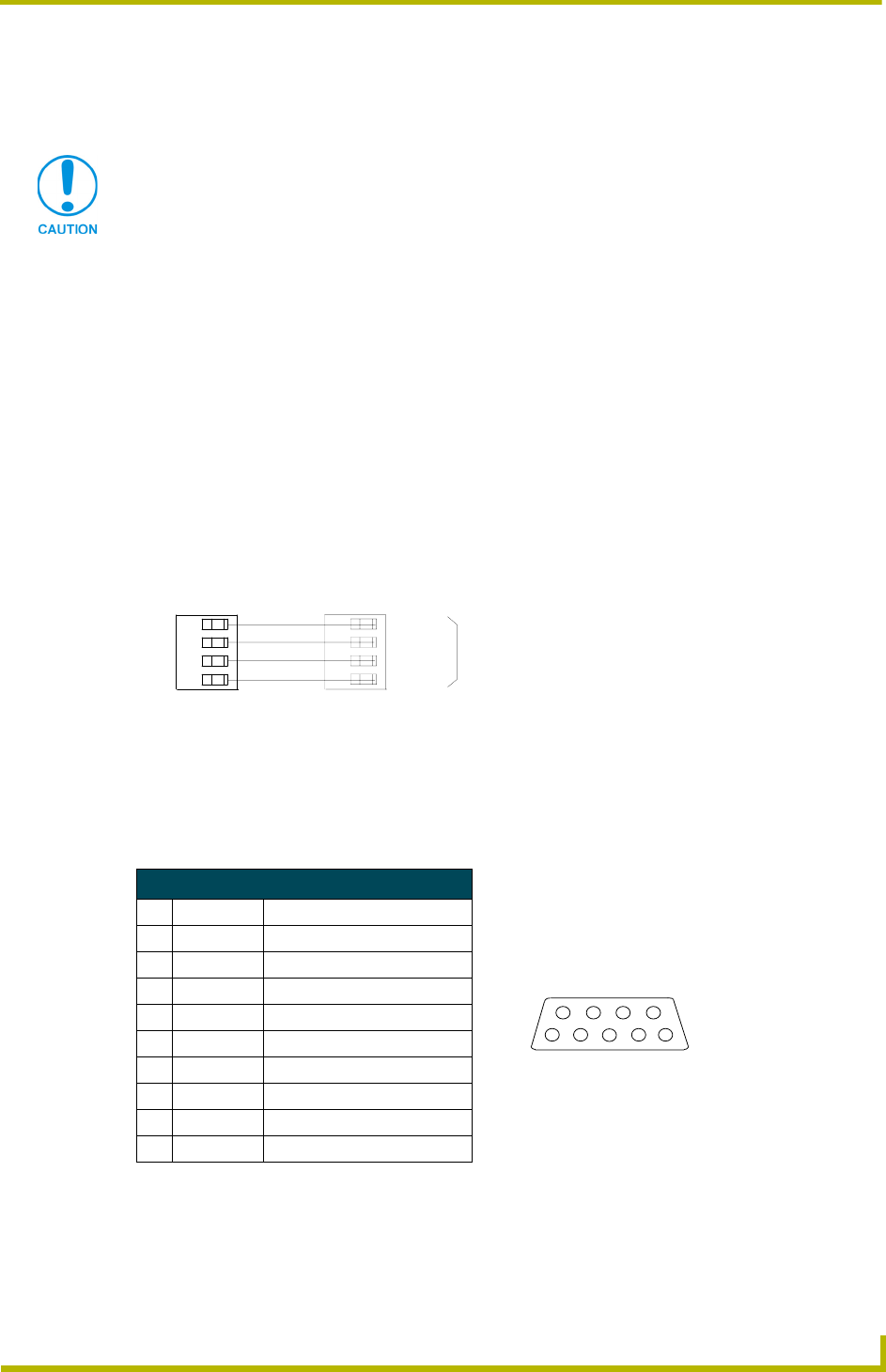

Connect the wiring from the CardFrame to the external AXlink devices, as shown in FIG. 2.
RS-232 Connector Wiring
The following table describes signal definitions for the 9-pin RS-232 communication port
connector (P2) on the front of the AXC-EM.
Static electricity can damage electronic circuitry. Before handling the card, discharge any
accumulated static electricity from your body by touching a grounded metal object.
FIG. 2 AXLink Wiring diagram
RS-232 Pinout Information
Pin Signal Function
1 N/A Not used
2 RX Receive data
3 TX Transmit data
4 +12 VDC Power
5 GND Signal ground
6 N/A Not used
7 +12 VDC Power
8 N/A Not used
9 N/A Not used
SYSTE
M
GN
D
AX
M
AX
P
P
WR
GN
D
AX
M
AX
P
P
WR
3 1 5
4
2
7
6
9
8
