Overview
1
Solecis AVS-SL-PR-0401-0601 Presentation Switcher
Overview
The Solecis AVS-SL-PR-0401-0601 Presentation Switcher (FG1330-2011-01) combines switching of
PC, computer, video and audio for presentation and conference rooms, home cinema, AV Rental
Companies and any environment where a number of mixed source types need to be displayed.
The AVS-SL-PR-0401-0601 features a total of ten inputs and a programmable serial output for
controlling projectors, plasma displays and other display devices.
Product Specifications

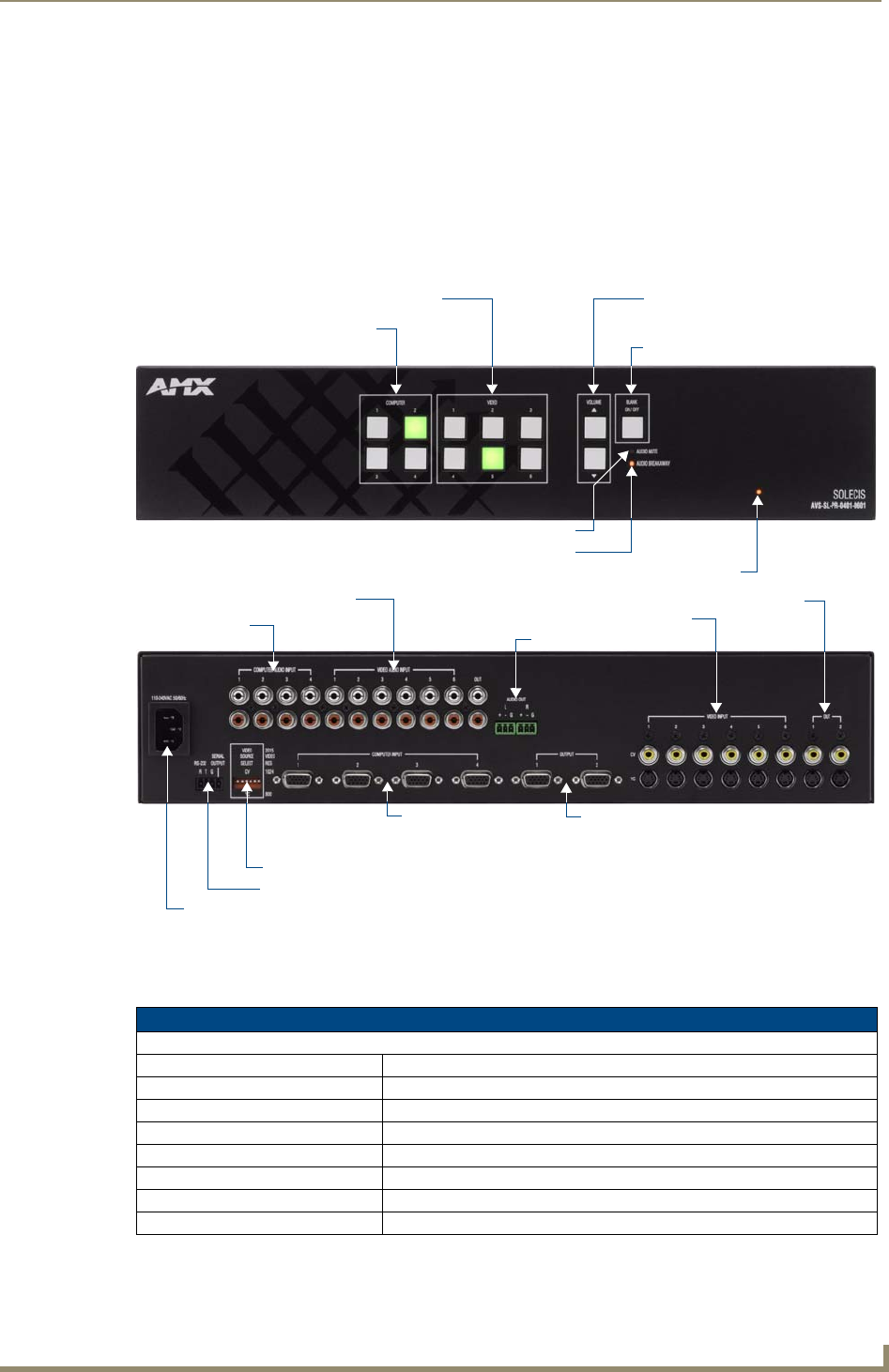

FIG. 1 Solecis AVS-SL-PR-0401-0601 Presentation Switcher
AVS-SL-PR-0401-0601 Specifications
RGB Inputs
Number 4
Connector HD-15
Level: Analog
Max Level: 1V p-p
Impedance: 75 ohm
Bandwidth 250MHz -3dB
Return Loss -38dB@10MHz, -20dB@100MHz
Adjacent Input Crosstalk -80dB@10MHz, -70dB@100MHz
(front)
(rear)
COMPUTER
VIDEO Input Select pushbuttons
VOLUME Up/Down
BLANK On/Off pushbutton
AUDIO MUTE status LED
AUDIO BREAKAWAY status LED
Input Select pushbuttons
pushbuttons
Power status LED
Video Audio Inputs 1-6
Video Source Select DIP Switch
RS-232 Serial Output
Outputs
Computer
Inputs 1-4
1-2
Computer/Audio
Inputs 1-4
AUDIO OUT L/R
Video Inputs 1-6
Video Outputs 1-2
Power Cord input
