Solecis Device Configuration Software
7
Solecis AVS-SL-PR-0401-0601 Presentation Switcher
Solecis Device Configuration Software
Overview
This software (downloadable from www.amx.com) is used for configuring the AVS-SL-PR-0401-0601
to control external display devices.
Connection
1. Connect the serial port of the PC as follows:
2. Launch the Solecis Device Configuration Software application. If the connection is correct, the
software will automatically detect the AVS-SL-PR-0401-0601.
3. Click on the AVS-SL-PR-0401-0601to access the virtual panel (FIG. 2):
Operation
Inputs can be selected and their respective attenuation levels can be set.
The Master volume level can be adjusted and the front panel can be enabled/disabled.
If several units are to be externally controlled from one serial port, the address of each unit can
be changed.
PC (D9) 2011
Pin 5 GND
Pin 2 TX
Pin 3 RX

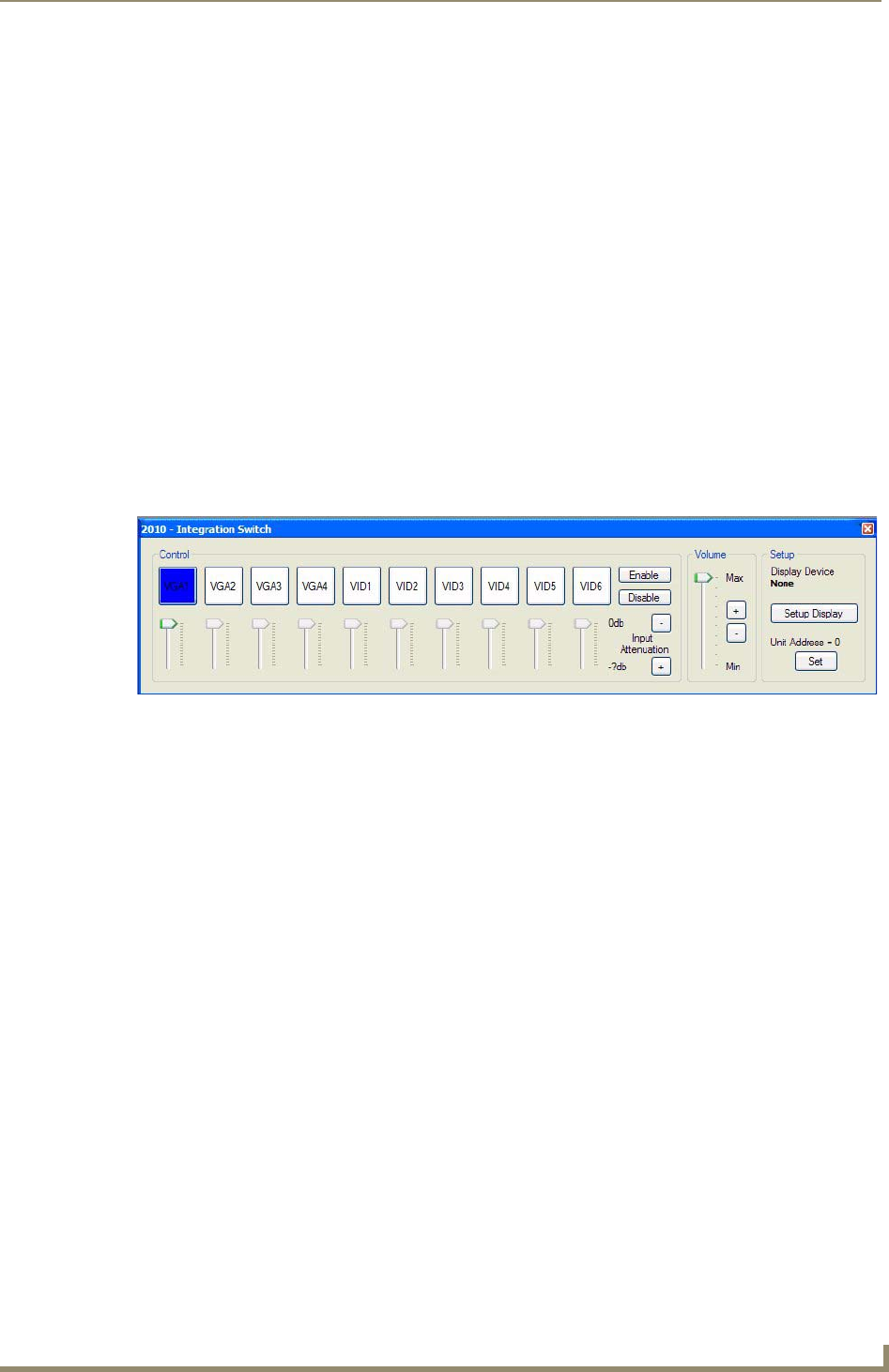

FIG. 2
Device Manager - Virtual Panel
