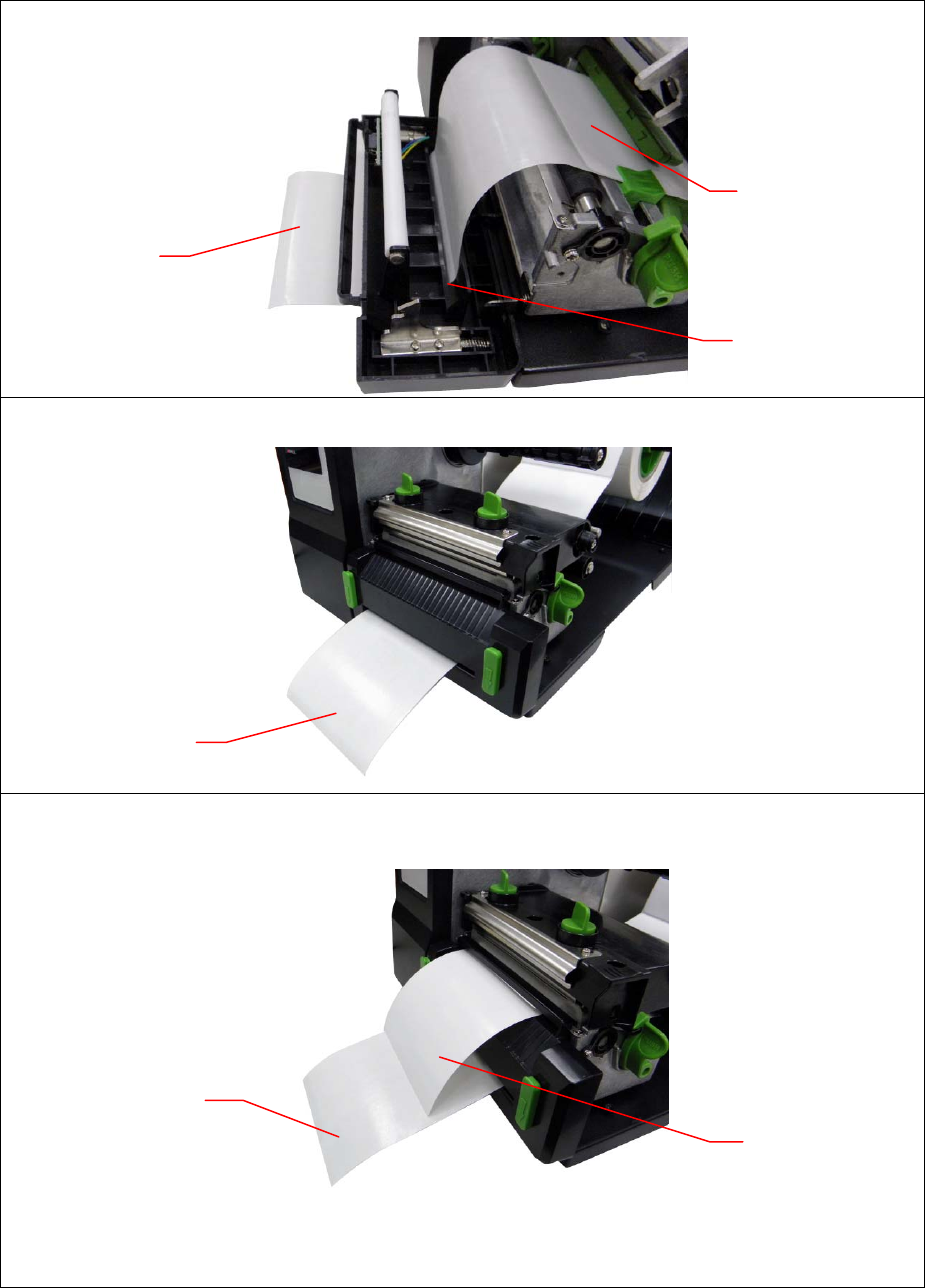

5. Feed the liner into peel-off cover slot.
6. Close the peel-off cover and the print head mechanism.
7. Use the DiagTool to set the printer setting for peeler mode. (Please refer the chapter 4)
Peeling will automatically start. Press the FEED button to test.
Note: Please calibrate the gap/black mark sensor when changing media.
Label
Liner
Slot
Liner
Liner
Label
