8. Use the DiagTool to set the media sensor type and calibrate the selected sensor. (Please refer to
section 4)
Note:
• Please calibrate the gap/black mark sensor when changing media.
• The sensor location is marked by a triangle mark ▽ at the sensor housing.
• The media sensor position is moveable. Please make sure the gap or black mark is at
the location where media gap/black mark will pass through for sensing.

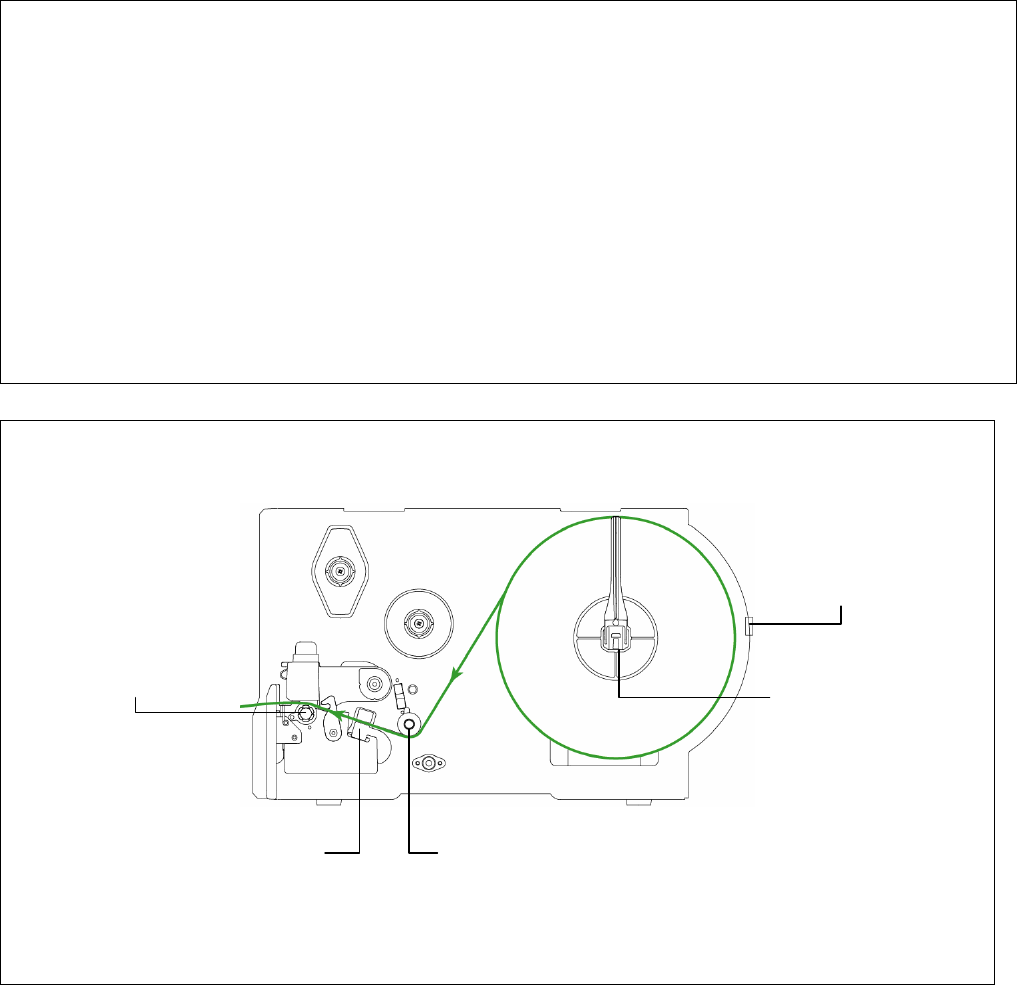

z Loading path for roll labels
Rear media
loading slot
Media sensor
Media supply
spindle
Media guide bar
Platen roll
