4.

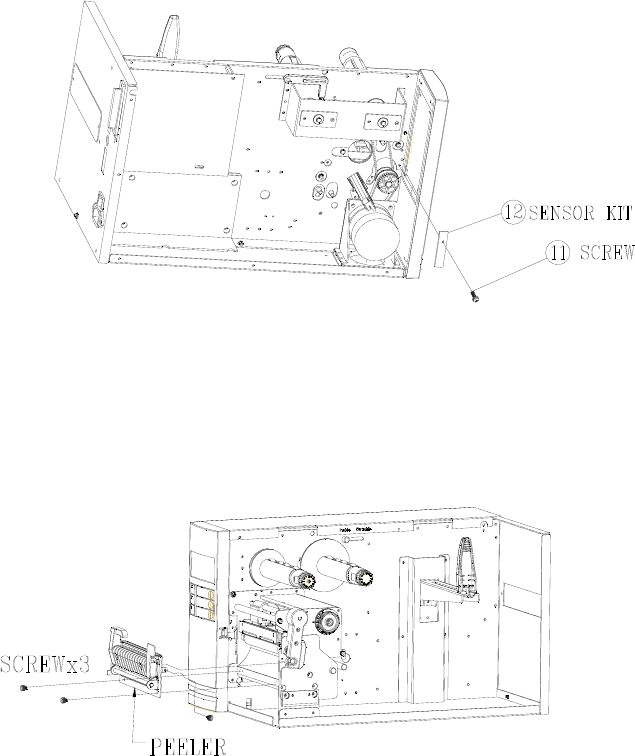

Connect the Peeler sensor to main board JP15 socket of 4602 PLUS
series/ JP12 socket of 4603 PLUS series. Secure the dispenser boa
rd
onto printer case.
5.
Insert the left side o
f d
ispenser bracket and s
ecure the three screws to the
TPH module.
