Page
53
PC215E
The Six Interrupt Sources
The six sources are as follows:
1. PPI X Port C bit 0 digital input/output
2. PPI X Port C bit 3 digital input/output
3. PPI Y Port C bit 0 digital input/output
4. PPI Y Port C bit 3 digital input/output
5. Z1 Counter 1 output
6. Z2 Counter 1 output

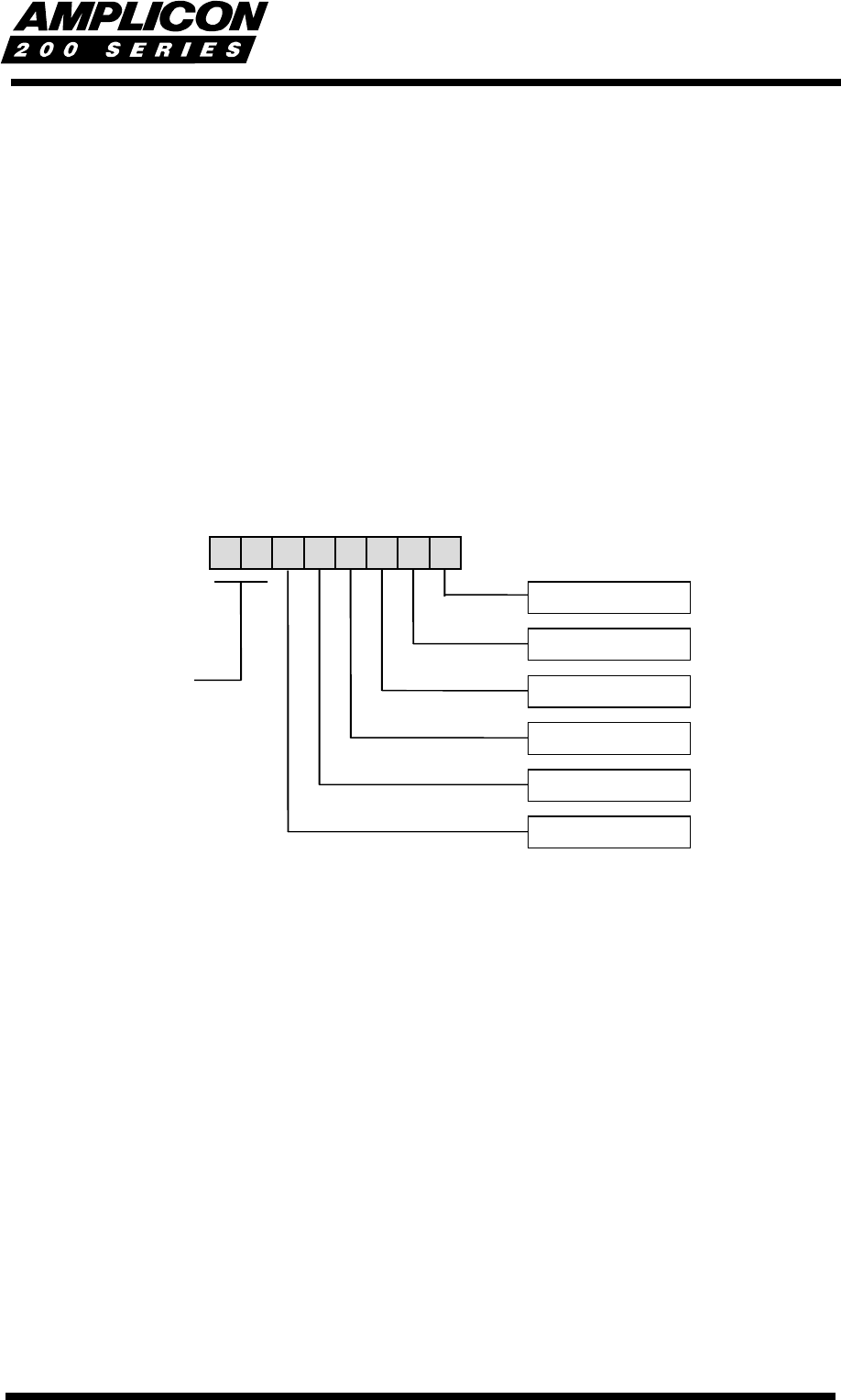

BIT ASSIGNMENTS
Bit layouts of the Interrupt Source register is shown below.
01234567
PPI X Port C bit 0
PPI X Port C bit 3
PPI Y Port C bit 0
PPI Y Port C bit 3
Z1 OUT1
Z2 OUT1
reserved
