Page
31
PC215E
BIT ASSIGNMENTS

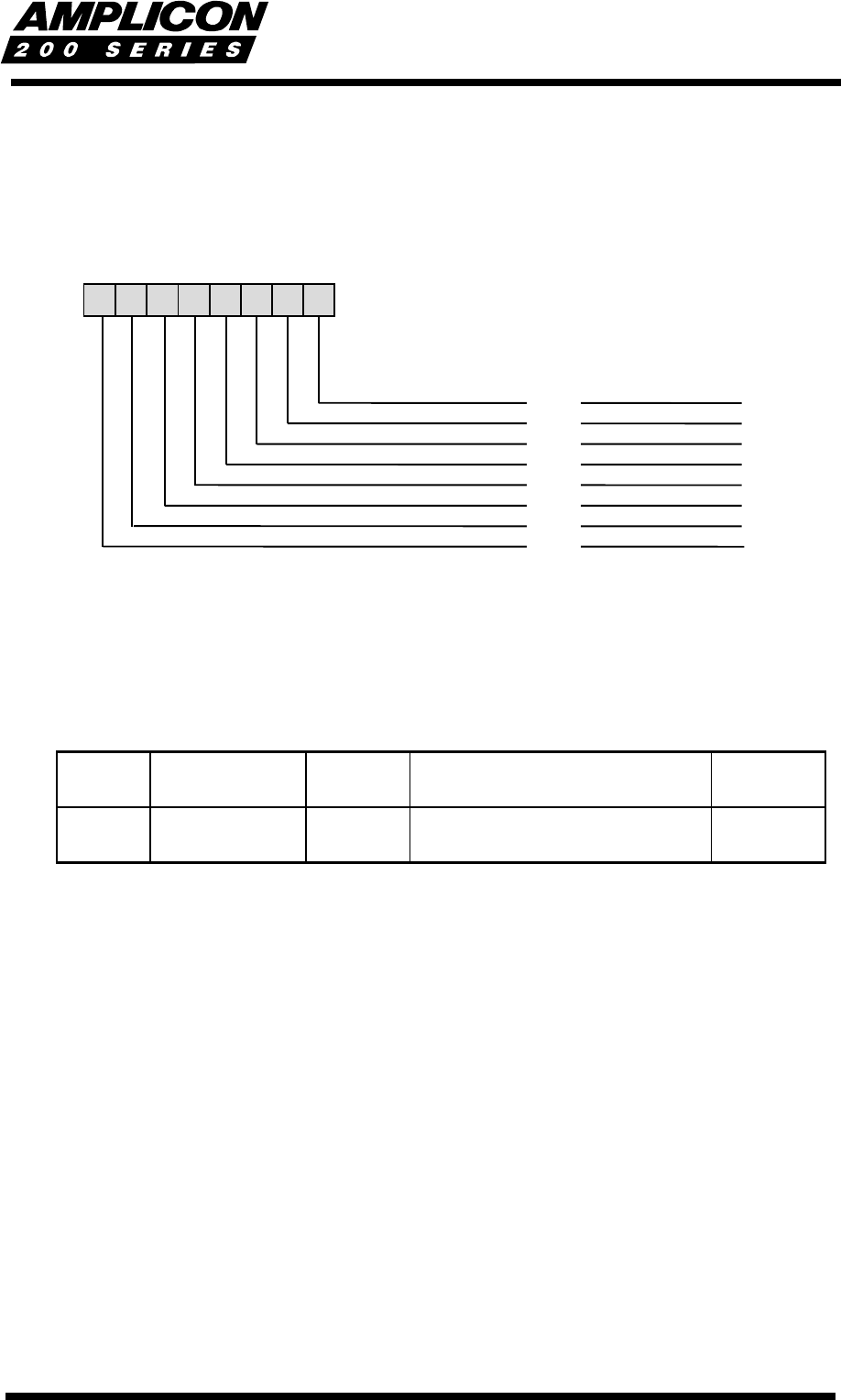

The bit layout of the PPI-Y port A data register is shown below.
5.3.6 Programmable Peripheral Interface PPI-Y Data Register Port B
This eight bit register writes to and reads from port B of the 82C55 Programmable Peripheral
Interface PPI-Y. All input/output lines PB0 to PB7 of this device are available to the user on
connector SK1 as digital I/O.
Register
Offset
Write and/or
Read
Register
Width
Register
Title
Mnemonic
09
16
Write and Read 8 bits
82C55 Programmable Peripheral
Interface Y Port B Data Register
PPI-Y B
FUNCTION
The PPI-Y Port B Data Register is used to write or read 8 bit data to a port of the 82C55
Programmable Peripheral Interface device.
The PPI can be configured to operate in several modes. Further details may be found by
reference to the device manufacturer's 82C55 data sheets in the appendices.
The eight data bits of port B are data input or data output in all modes
The modes and programming of PPI operations are outlined in chapters 4 and 6 with the Digital
I/O connections shown in chapter 3.
01234567
PPI-Y Port A Digital
I/O Data Bits
Digital I/O SK1
Pin Connections
SK1 29
SK1 48
SK1 9
SK1 67
SK1 28
SK1 47
SK1 8
SK1 66
PA0
PA1
PA2
PA3
PA4
PA5
PA6
PA7
