Instruction manual
Table Of Contents
- INTRODUCTION
- GETTING STARTED
- MAKING THE CONNECTIONS
- USING THE PC215E
- STRUCTURE AND ASSIGNMENTS OF THE REGISTERS
- Register Assignments
- Register Groups
- The Register Details
- Programmable Peripheral Interface PPI-X Data Register Port A
- Programmable Peripheral Interface PPI-X Data Register Port B
- Programmable Peripheral Interface PPI-X Data Register Port C
- Programmable Peripheral Interface PPI-X Command Register
- Programmable Peripheral Interface PPI-Y Data Register Port A
- Programmable Peripheral Interface PPI-Y Data Register Port B
- Programmable Peripheral Interface PPI-Y Data Register Port C
- Programmable Peripheral Interface PPI-Y Command Register
- Z1 Counter 0 Data Register
- Z1 Counter 1 Data Register
- Z1 Counter 2 Data Register
- Counter/Timer Z1 Control Register
- Z1 Counter/Timer Status Register
- Z2 Counter 0 Data Register
- Z2 Counter 1 Data Register
- Z2 Counter 2 Data Register
- Counter/Timer Z2 Control Register
- Z2 Counter/Timer Status Register
- Group Z Clock Connection Register
- Group Z Gate Connection Register
- Interrupt Source Selection Register
- Interrupt Status Register
- PROGRAMMING THE PC215E
- Copyright
- Files installed from the Distribution Diskette
- Windows DLL and Examples
- DOS 'C' Library and Examples
- Using the Dynamic Link Library
- Windows and DOS Library Functions
- Initialisation Functions
- Interrupt Control Functions
- Data Buffer Functions
- Timer/Counter Functions
- Differential Counter Functions
- Frequency Generation Functions
- Millisecond Stopwatch Functions
- Frequency Input and Output Functions
- Digitally- and Voltage-Controlled Oscillator Functions
- Digital Input/Output Functions
- Switch Scanner Matrix Functions
- Bi-Directional Data Bus Functions
- PC215E Library Error Codes
- PC215E Interface Guide For LABTECH NOTEBOOK
- Guide to User Programming
- Signal Centre
- CONTENTS
- DECLARATION OF CONFORMITY
PC215E Page 10
'1'
'0'
ON
OFF
ON
OFF
'1'
'0'
SW1
800 400 200 100 80 40 20 10
Most Significant Middle
Digit
Di
g
it
21 345678

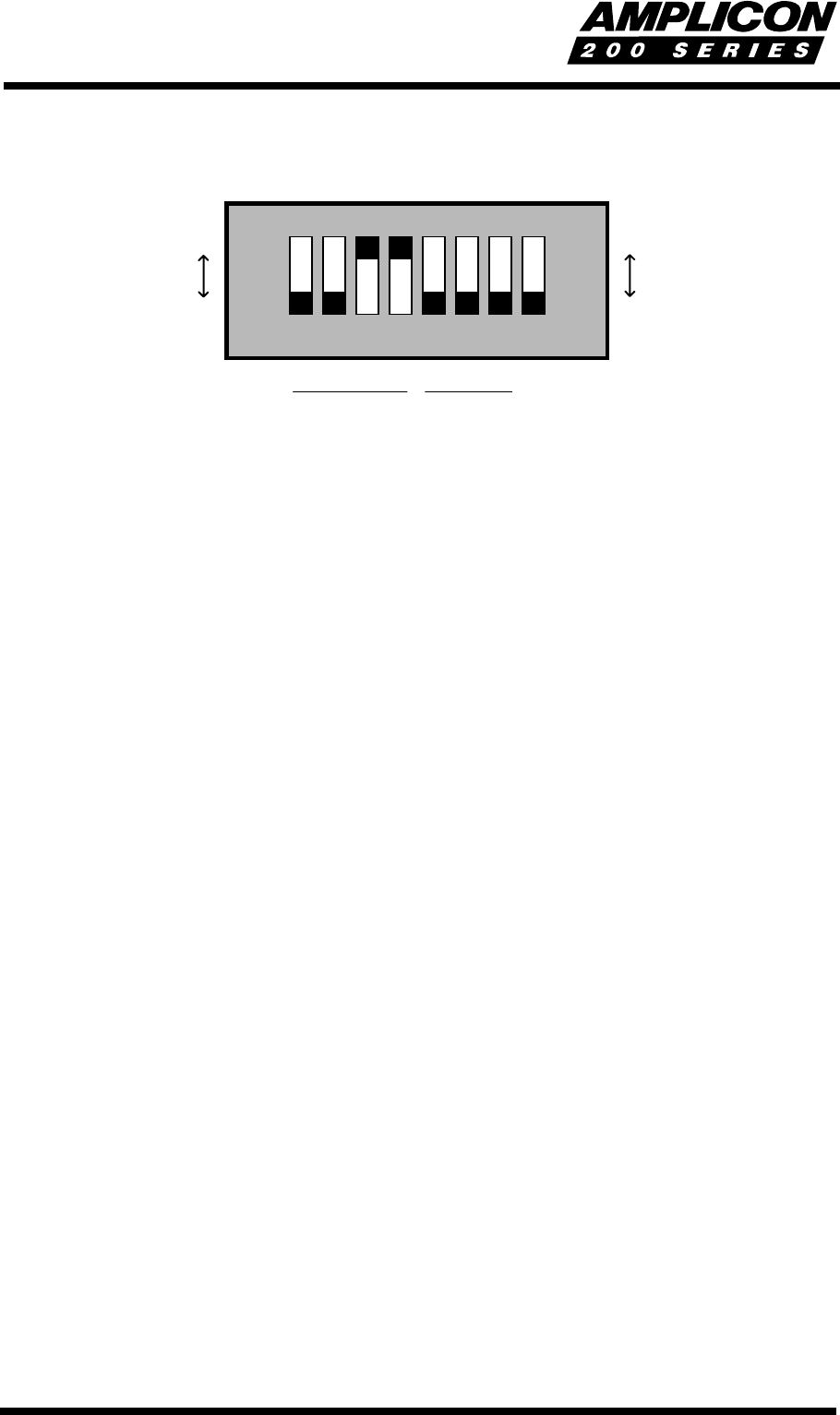

Figure 3 - DIL Switch Selection for Base Address
2.6.2 PC I/O Map
The standard PC/AT I/O map assignments are listed below.
I/O addresses 000
16
to 0FF
16
are reserved for the PC system board use and I/O
addresses 100
16
to 3FF
16
are available on the I/O channel. The installation of the
PC215E at a base address that uses unlisted ports may result in conflicting assignments
with third party adapters.
Hex Range Usage Hex Range Usage
1F0-1FF Hard Disc (AT) 360-36F Network
200-20F Game/Control 378-37F Parallel Printer
210-21F Reserved 380-38F SDLC
238-23B Bus Mouse 3A0-3AF SDLC
23C-23F Alt. Bus Mouse 3B0-3BB MDA
270-27F Parallel Printer 3BC-3BF Parallel Printer
2B0-2DF EGA 3C0-3CF EGA
2E0-2E7 GPIB (AT) 3D0-3DF CGA
2E8-2EF Serial Port COM4 3E8-3EF Serial Port COM3
2F8-2FF Serial Port COM2 3F0-3F7 Floppy Disc
300-31F Prototype Card 3F8-3FF Serial Port COM1
2.6.3 Selection of Interrupt Request (IRQ) Level
Selection of the required Interrupt Request Level is by means of a jumper in a single position on
header J1. Eight levels are available, but only one of these may be selected, and a level should
be chosen that does not conflict with any other assignments within the host computer.
The factory default setting is IRQ level 5.
The following table shows the available levels on the PC215E and normal usage of all hardware
interrupts. The one of eight position jumper is illustrated in Figure 4.
!
Least
Significant
Default
