Datasheet

SCALE
TITLE
SHEET
OF
SIZE
ITEM NO
DWG NO
CUSTOMER
DRAWN BY
CHECKED BY
APPROVED BY
DATE
DATE
DATE
WC-REV.
FMW10702-01-02A1
REV.
Amphenol LTW
12.5
0.5
1.95
3.5
*3
1.3
12.5
3.4
2.15
0.5
1.95
UNIT:mm

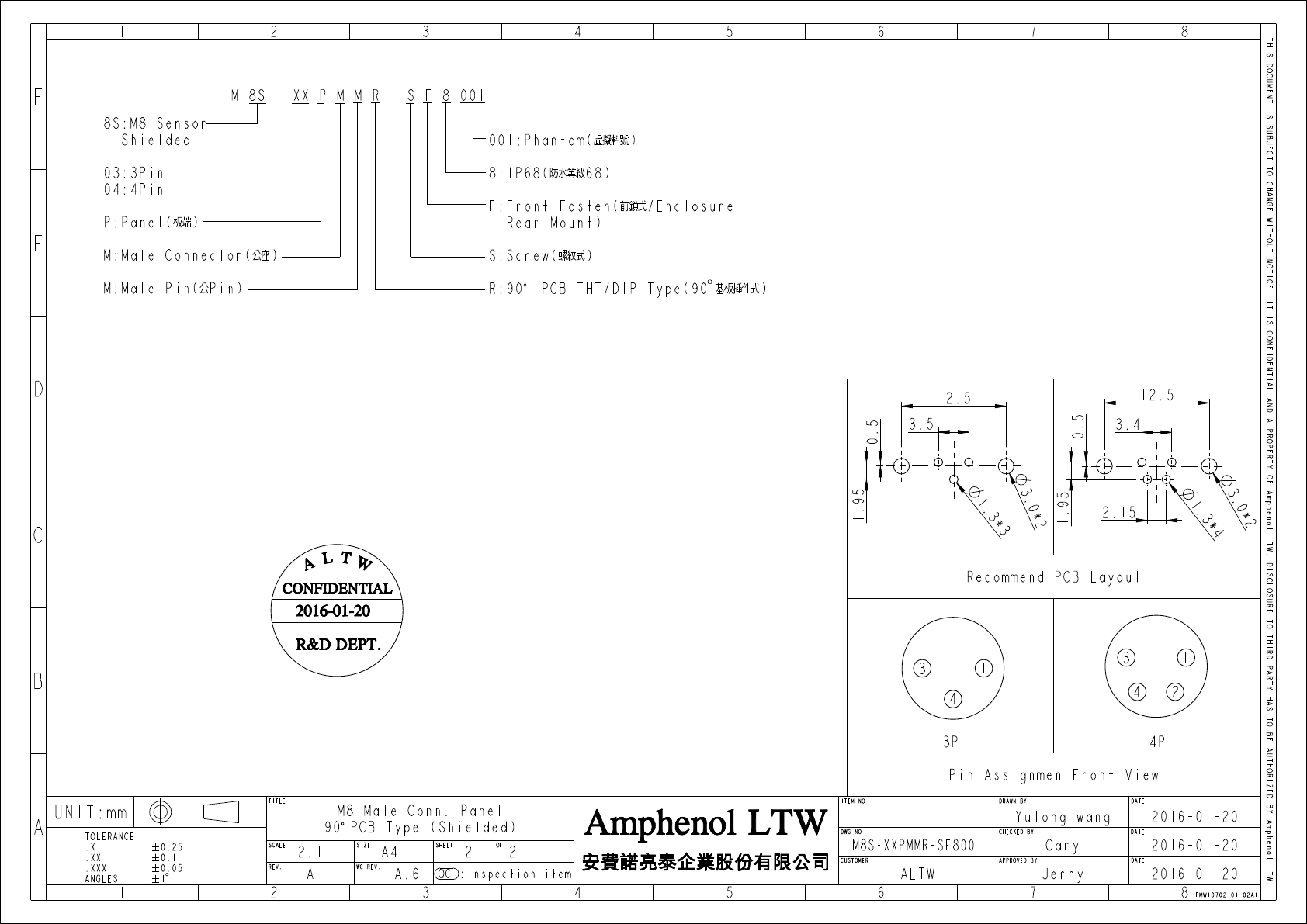

M8 Male Conn. Panel
90°PCB Type (Shielded)
Yulong_wang 2016-01-20
TOLERANCE
.X #0.25
.XX #0.1
.XXX #0.05
ANGLES #1$
M8S-XXPMMR-SF8001 Cary 2016-01-20
2:1 A4 2 2
ALTW Jerry 2016-01-20A A.6
QC :Inspection item
F
E
D
C
B
A
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY Amphenol LTW.
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Recommend PCB Layout
3P 4P
Pin Assignmen Front View
M 8S - XX P M M R - S F 8 001
001:Phantom(虛擬料號)
8:IP68(防水等級68)
F:Front Fasten(前鎖式/Enclosure
Rear Mount)
S:Screw(螺紋式)
R:90° PCB THT/DIP Type(90$基板插件式)
8S:M8 Sensor
Shielded
03:3Pin
04:4Pin
P:Panel(板端)
M:Male Connector(公座)
M:Male Pin(公Pin)
1
2
3
4
4
3
1
2016-01-20
CONFIDENTIAL
R&D DEPT.
A
T
L
W
