NOTE:
Fig 1

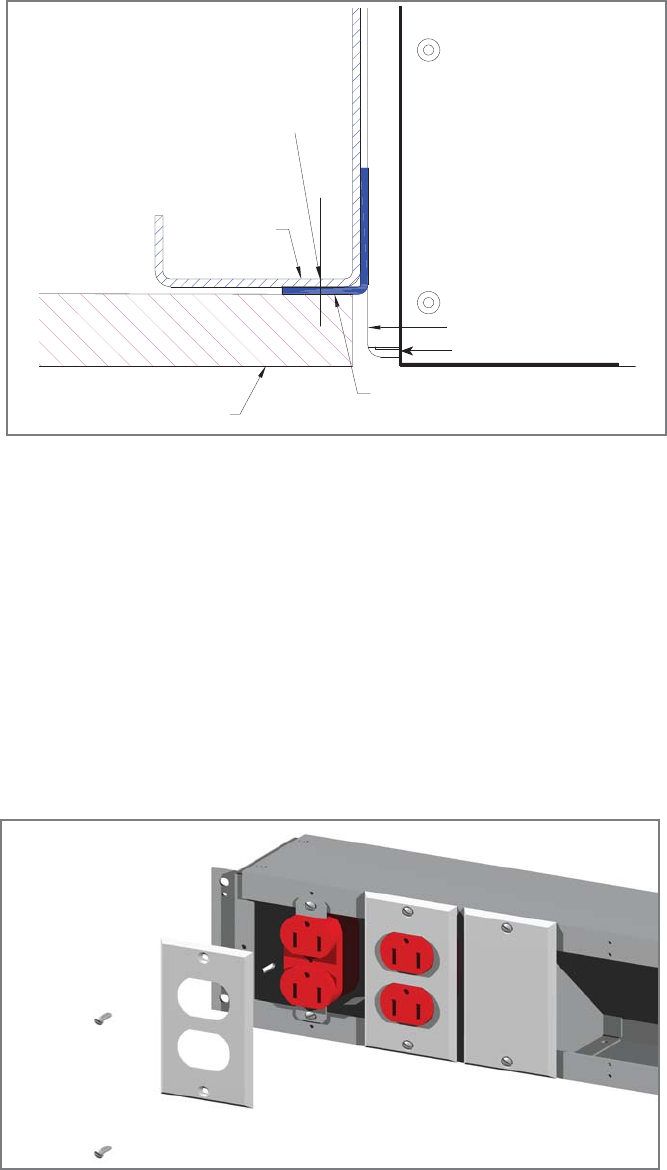

3. The console should be  ush with the  nished drywall after installation (see Fig. 1). Check the positioning of the
 anges to determine if adjustment of the  anges is necessary. If adjustment is not required, skip steps 4 through 8,
and proceed with step 9.
NOTE: The  anges are preset for 5/8” drywall.
Go to step 9 if  anges do not require adjustment
4. Remove any aluminum device covers that are blocking access to the screws (2 per  ange) holding the
 ange to the console box. This is done by loosening the screws (typically 2 per cover) attaching it to
the console box. Place everything in a safe and clean location.
CONSOLE BOX
END CAP
FLANGE
DRYWALL
STUD
CONSOLE BOX
NOTE 1:
Mounting hardware
(rivets or screws)
by others
