Setup Menu : Supply
the keypress. Power supply selection should also preferably be
performed with the power supply off for maximum safety.
The power supply settings define the output voltage and current
ranges for a specific power supply. For example, V-I diagrams are
presented in Figure 3-8 for the AMI 12100PS and AMI 4Q06125PS
selections. The AMI 12100PS operates as a one-quadrant system
without the addition of an energy absorber. As shown in the
diagram, with the addition of an AMI Model 601 energy absorber,
the AMI 12100PS system can function as a two-quadrant supply
providing +5 V to -5 V at the power supply system output
terminals. The AMI 4Q06125PS power supply operates as a four-
quadrant power supply without the addition of an energy absorber.
The addition of an energy absorber to the system does not change
the capabilities of the power supply itself (or the values entered for
the supply). The addition of an energy absorber does, however,
change the system operating ranges per the example of Figure 3-8.
3.10.1.1.1 Custom... Picklist Item
Custom... is a unique Select Supply picklist item. When selected, it
opens a deeper submenu in which the custom power supply
parameters (Min Output Voltage, Max Output Voltage, Min Output
Current, Max Output Current and V-V Mode Input Range) are
entered. Entry of each of these parameters is described below.

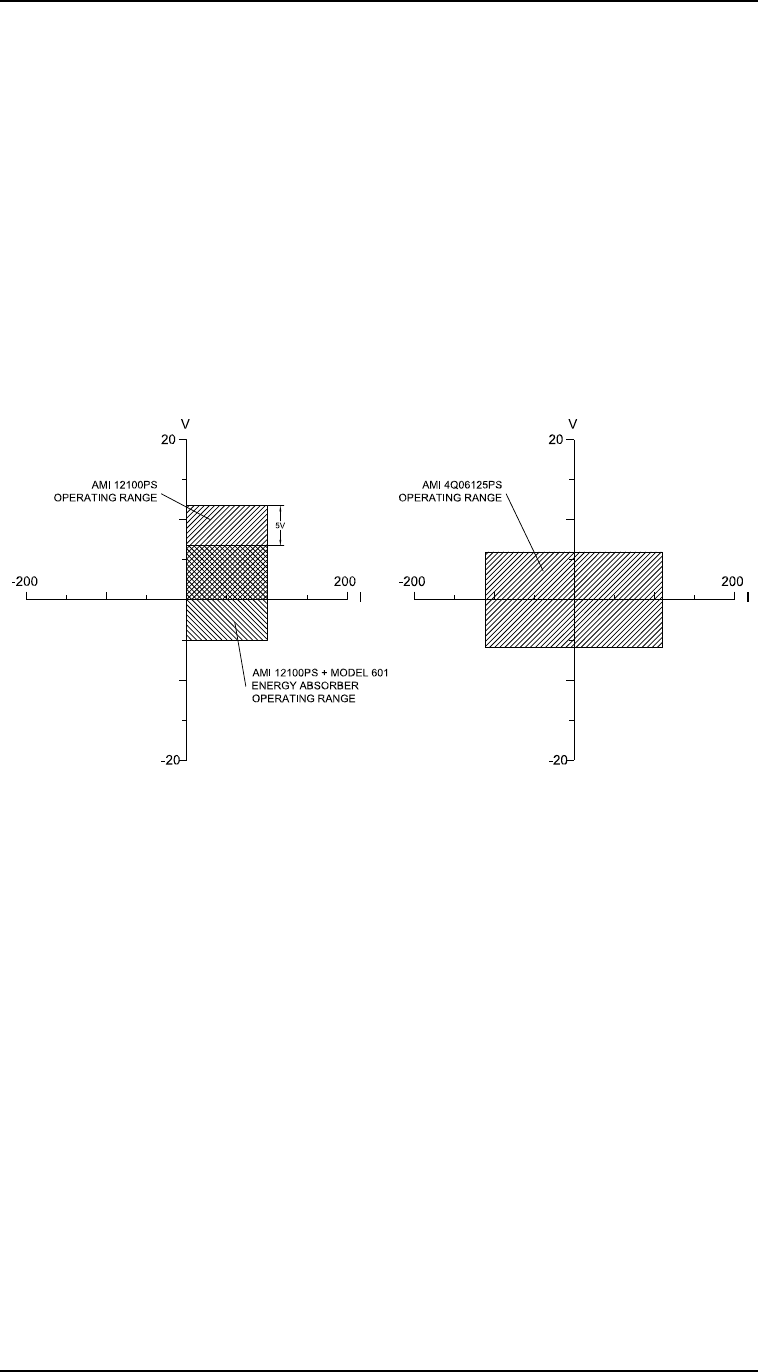

Figure 3-8. Example Power Supply Outputs
