Rev. 5 7
Introduction
Power Supply Front Panel Layout
1.4 Power Supply Unit Front Panel Layout
The power supply front panel contains the input ON/OFF circuit breaker.
The remaining front panel controls and connections are not used in the
Model 4Q1010PS-430 configuration because the output is controlled by the
Model 430 Programmer. Refer to Figure 1-2.

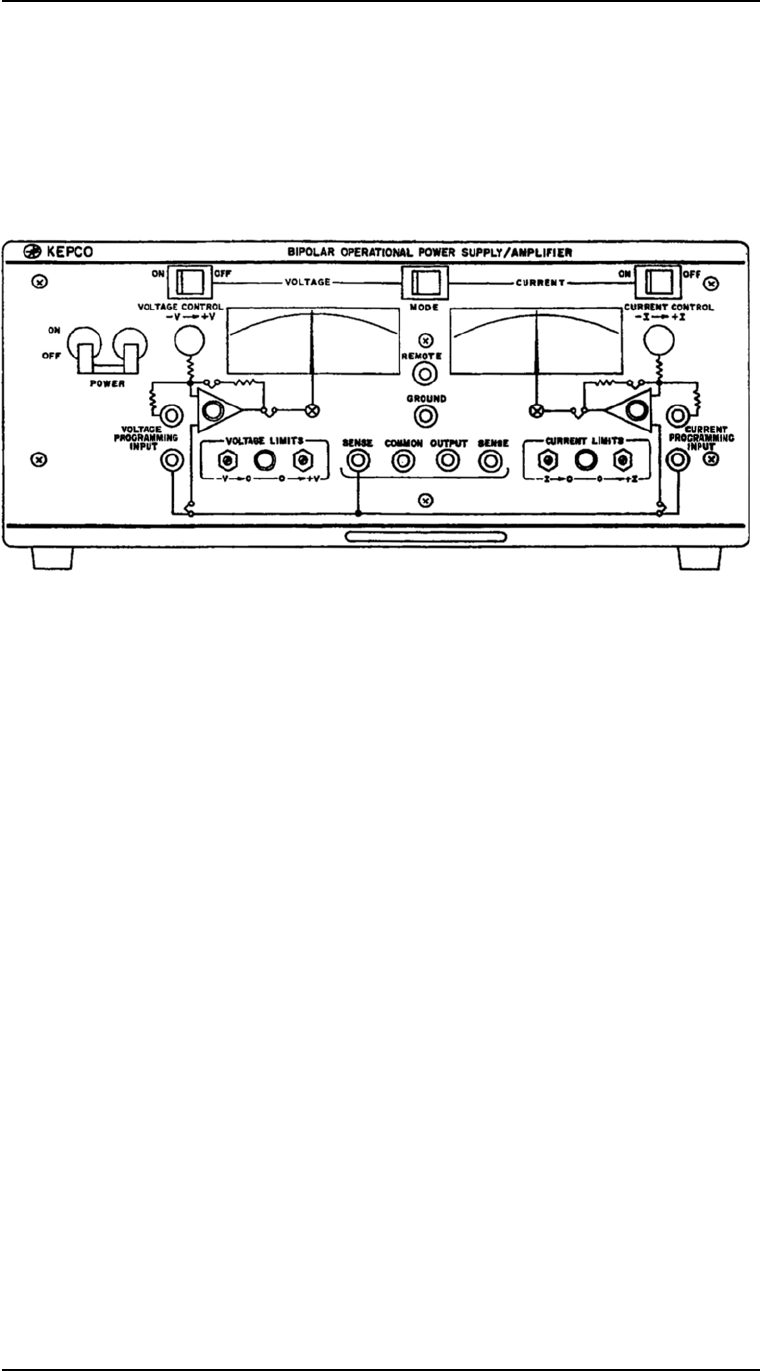

Figure 1-2. Model 4Q1010PS Front Panel
