Appendix
Model 430:Remote Control Application
<ENTER>. If entered too soon, re-enter or click the browser “refresh”
icon.
The following initial screen should be appear.
The AMI Model 430 Remote Control Application is the primary feature of
this screen. When selected, a view of the Model 430 being controlled with
the web browser will appear (under the Operator Panel tab).
All functions, except the Power On/Off Switch, are active and operate
(using the computer mouse
1
) exactly as the hardware Model 430.
The initial screen also includes links to the Model 430 Manual in PDF
form along with Frequently Asked Questions relating to the Model 430
application (all stored in the Model 430 firmware). There are links to the
AMI website and an e-mail form for contacting AMI Customer Support.
The Command Interface is available under the tab of the same name, and
operates exactly as described in “Remote Interface Reference” on page 93.
1. To rotate the Fine Adjust Knob (after enabling with the SHIFT key),
just click and drag in the desired direction.

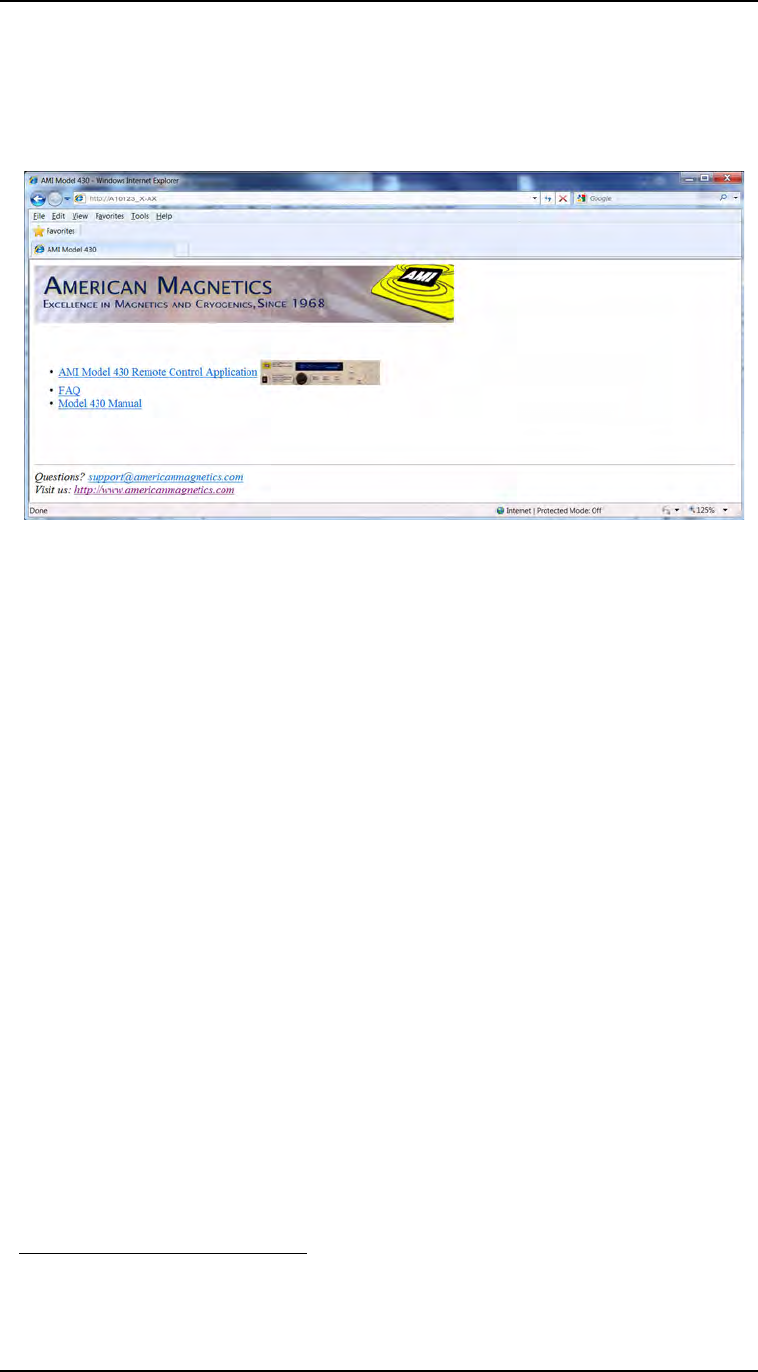

Figure A-5. Initial Screen for Browser Access of the Model 430
