182 Rev. 5
Appendix
Model 430:Remote Control Application

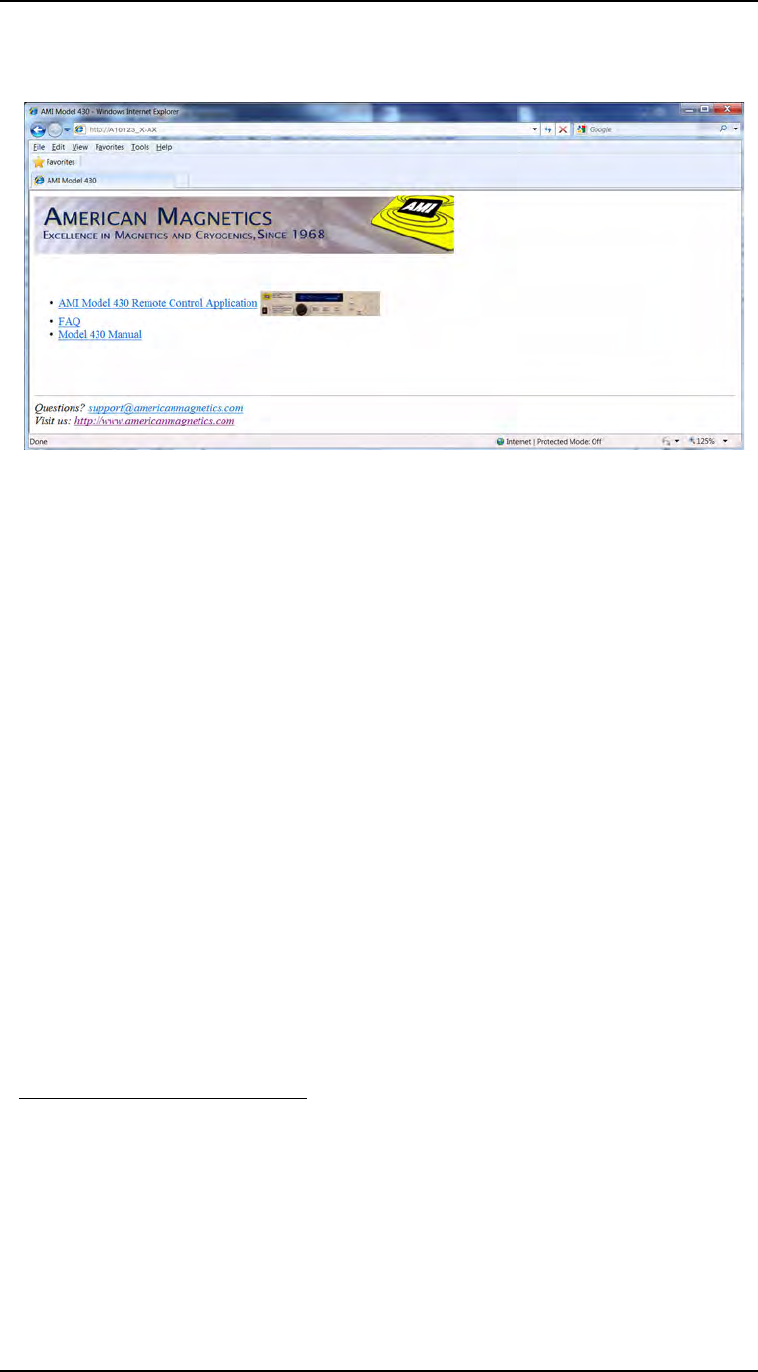

g. The following screen should appear:
14. This completes the installation and verification of the Model 430
Firmware Upgrade.
A.15 Model 430 Remote Control Application
Model 430 can be accessed via a network connection
1,2
with fully
functional control
3
. This is accomplished through the Ethernet connection
on the rear panel using TCP/IP protocol via a host computer. The
connection and control can be established through a locally connected
computer or remotely through a network or even the Internet; the human/
machine interface is a web browser depiction of the Model 430.
The browser-displayed Model 430 Programmer can be used to control any
Model 430 front panel hardware device except the power switch. Also, any
setting changes made at the actual Programmer will be reflected on the
displayed version.
The Model 430 Programmer RJ-45 Ethernet port must be connected either
directly to a host computer or through a computer network on which the
host computer resides:
2. In the form http://xxx.xxx.xxx.xxx, where the "xxx" values match the
IP Address (Present) of the Model 430.
1. The browser must be Java-Applet capable. If the browser displays a
message indicating the required Java plug-in needs to be installed,
please follow the screen instructions to download and install the
plug-in on the browser of host computer.
2. Third party remote software, such as National Instruments LabView,
can also be used.
3. With the exception of the Power On/Off switch.
