180 Rev. 5
Appendix
Model 430 Firmware Upgrade via Flash Card Reader

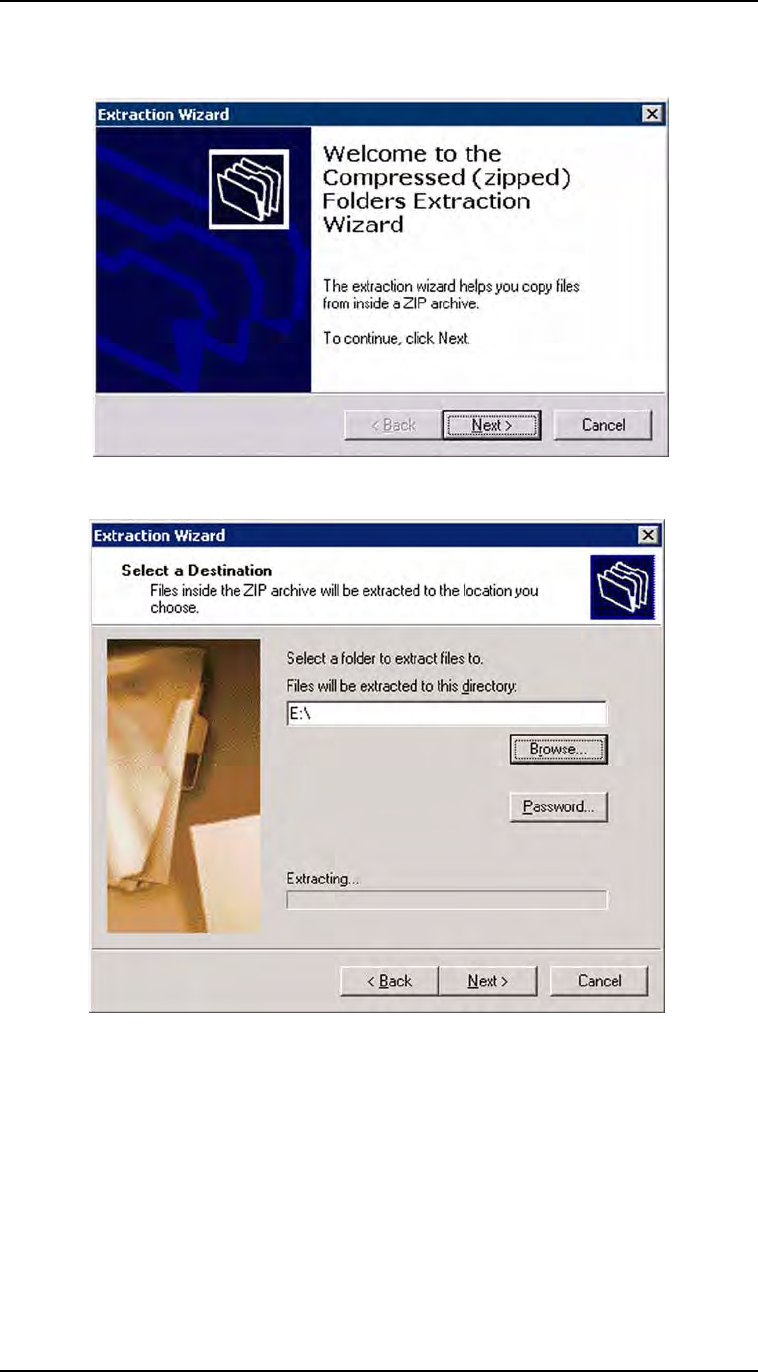

3. Choose File > Extract All… to start the extraction wizard:
4. Click Next until prompted with Select a Destination:
5. Browse to My Computer and choose the top level (root) of the drive
associated with the CF card (for example E:\ or G:\) and select
Next.
