174 Rev. 5
Appendix
Model 430 Firmware Upgrade via FTP
b. User Name: model430admin
c. Password: supermagnets
d. Port: 21

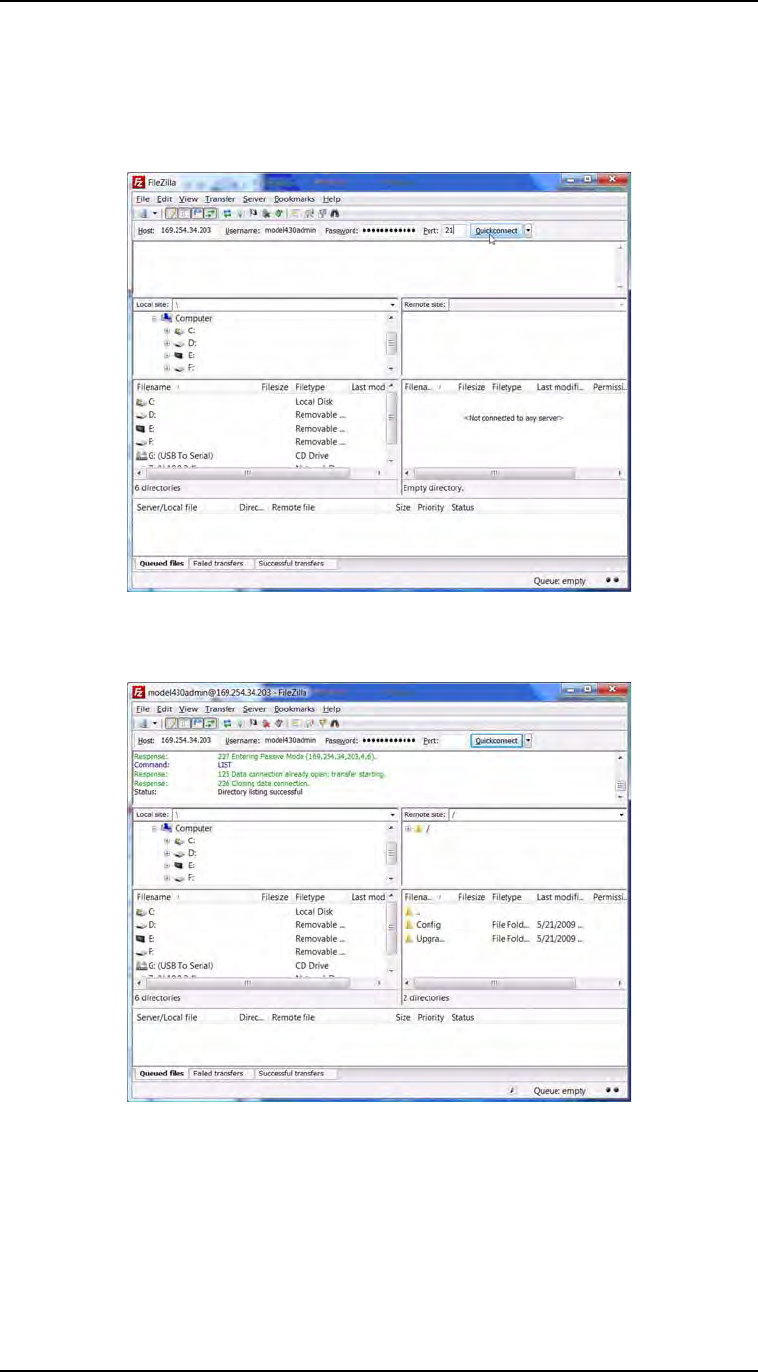

3. Click the Quickconnect button to connect to the Model 430 – the
Remote Site section of the screen will populate.
4. On the Local Site (left side representing your PC or server file
system), navigate to the folder containing the Model430.exe
