Appendix
Remote Computer Communication (Ethernet)

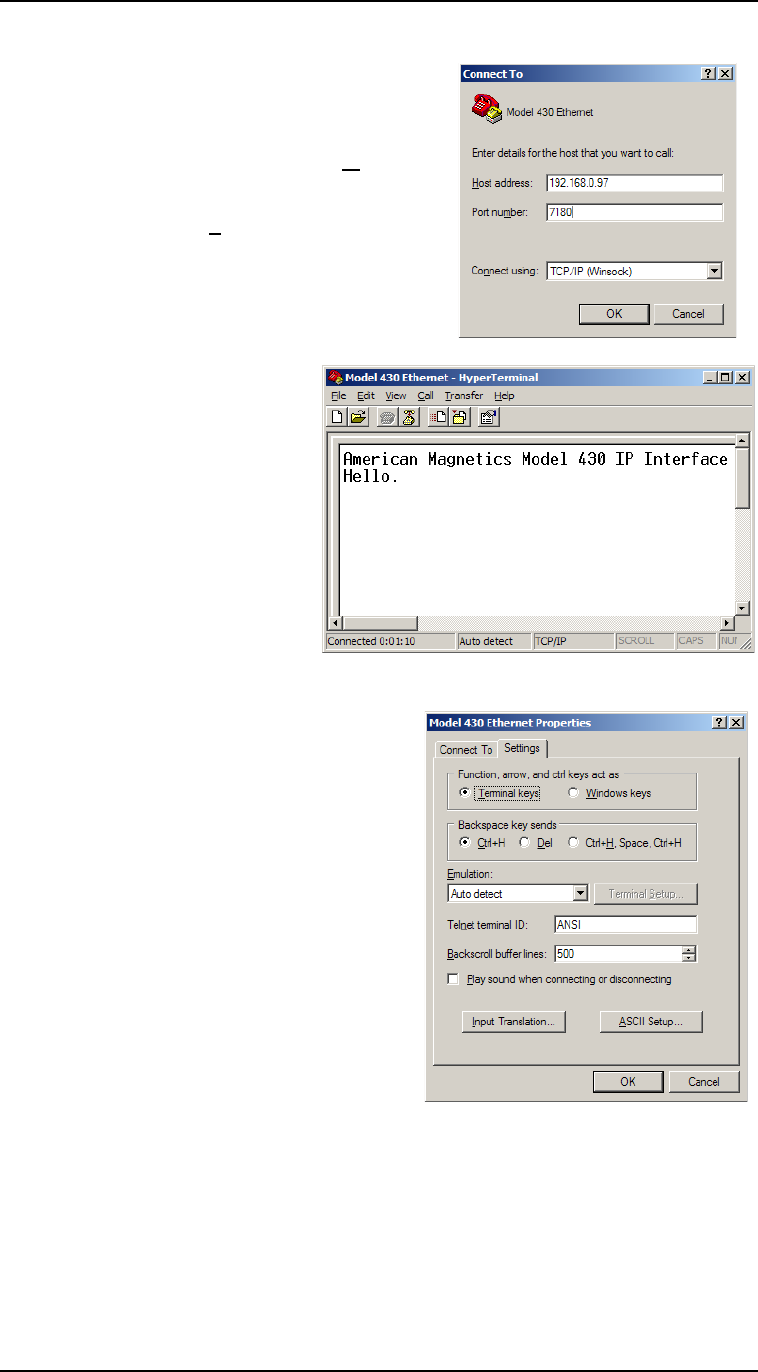

10. In Host address, enter the Model
430 Programmer IP address as
determined previously in step 2.
11. Enter 7180 in the Port Num
ber
field.
12. From the Con
nect using pull-down
menu, select TCP/IP (Winsock) and
click OK.
13. The computer will
connect with the
Model 430
Programmer and
display a welcome
screen.
14. Choose File >
Properties and then click on the
Settings tab.
