Rev. 5 167
Appendix
Remote Computer Communication (RS-232)

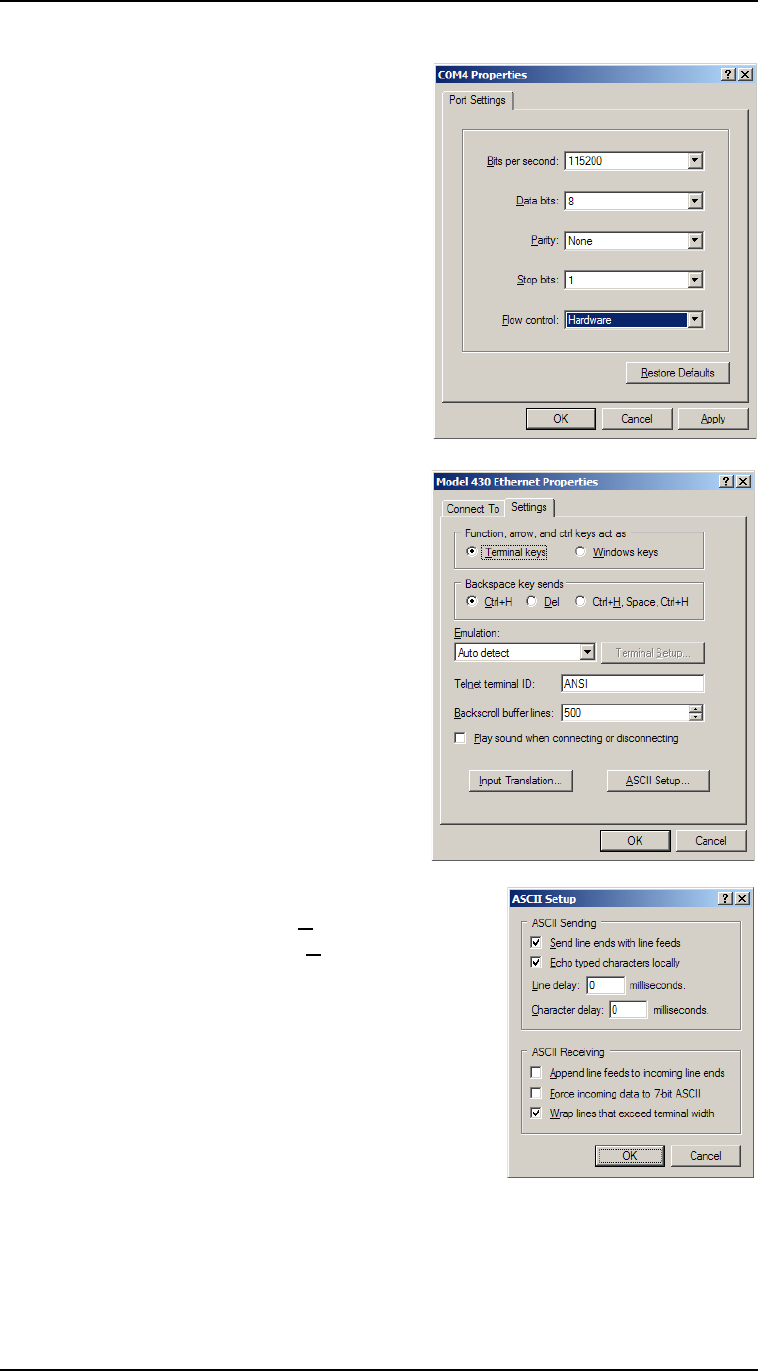

5. Edit the communication
parameters per section 4.3 on
page 106 and click OK.
6. Choose File > Properties and then
click on the Settings tab.
7. Click on the ASCII Setup...
button and check the S
end line ends with
line feeds box and the E
cho typed
characters locally box in the ASCII
Sending area. Click on OK and then OK
on the next screen.
