Appendix
Program Out Connector

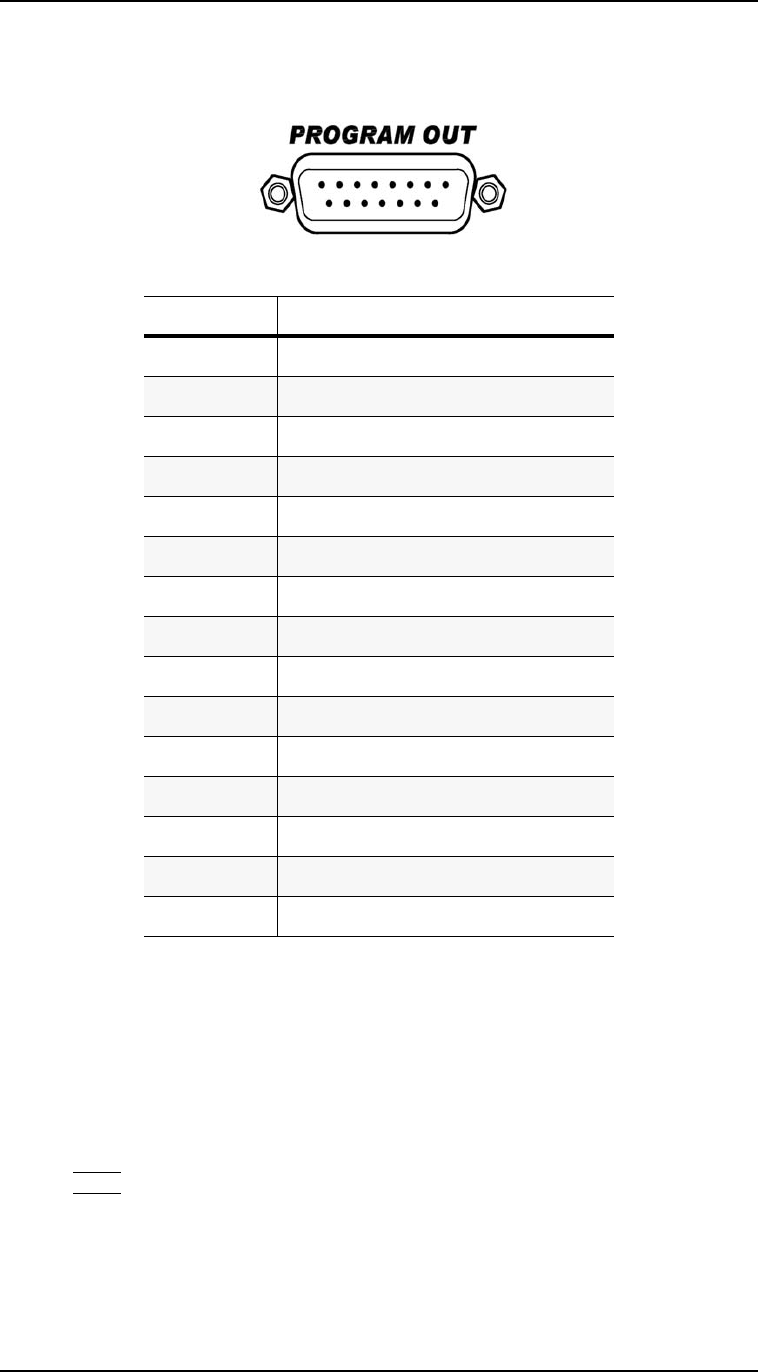

A.4 Program Out Connector
The Program Out 15-pin D-sub male connector provides up to a −10 Vdc to
+10 Vdc output designed to drive the remote voltage-to-voltage
programming input of a connected power supply. Refer to “Installation” on
page 11 for a detailed description of the system interconnections. Pin 11 of
the Program Out connector is the program out voltage. Pin 4 of the
Program Out connector is the output return. All other pins of the Program
Out connector are unused.
Note
For maximum noise immunity, the Model 430 Programmer chassis
and the chassis of any connected power supply should be tightly
Table A-3. Program Out Connector Pin Definitions
Pin Function
1 not used
2 not used
3 not used
4 Program Out Common
5 not used
6 not used
7 not used
8 not used
9 not used
10 not used
11 Program Out Voltage
12 not used
13 not used
14 not used
15 not used
