Installation Sheet

8
www.ambaproducts.com

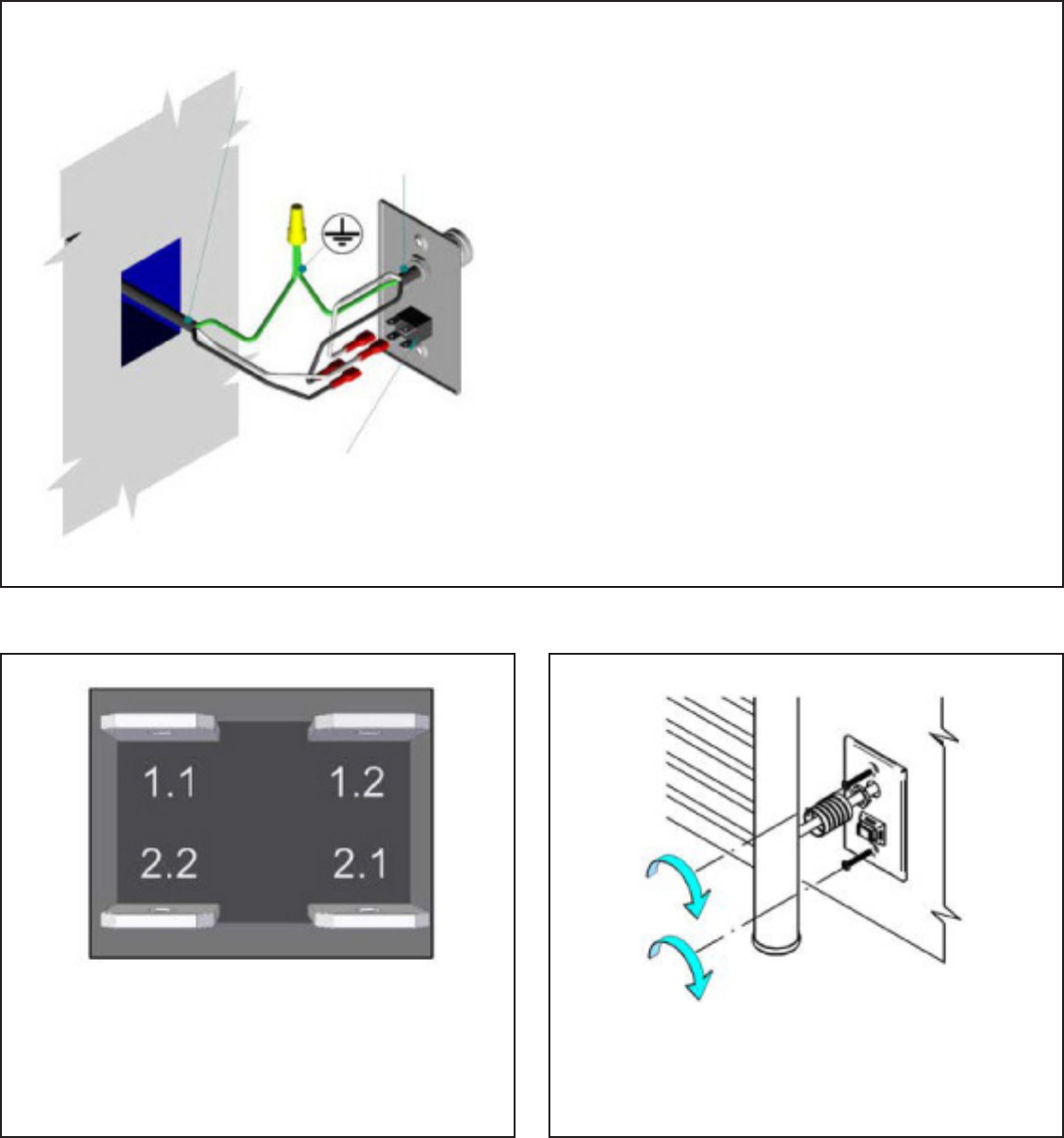

• Connect the two grounding cables (green)
• Consider the button as 2 separate vertical sections,
one on the right and one on the left
• Connect the fastenings of the power source cable
to one section, it doesn’t matter which
• Connect the fastenings of the towel warmer’s cable
to the other section
See the example below
• Connect one cable to the left section:
Electrical bridge = 1.1 – 2.2
• Connect the other cable to the right:
Electrical bridge = 1.2 – 2.1
• Fix the stainless steel wall-plate with the
provided screws;
Power source cable
Fastening Connections
(S tep 2)
Towel warmer cable
COMPONENTS
WALL PLATEFASTENING CONNECTIONS
SWITCH INSTALLATION
FOR UNITS WITHOUT
DIGITAL HEAT CONTROLLER
