INSTALLATION
INSTRUCTIONS
CAUTION:
DO NOT TAKE OFF THE PROTECTIVE P.V.C. TAPE BEFORE INSTALLING TOWEL WARMER TO
AVOID SCRATCHING, MARKING OR GRAZING THE SURFACE.
Washer
Supporting
Screw

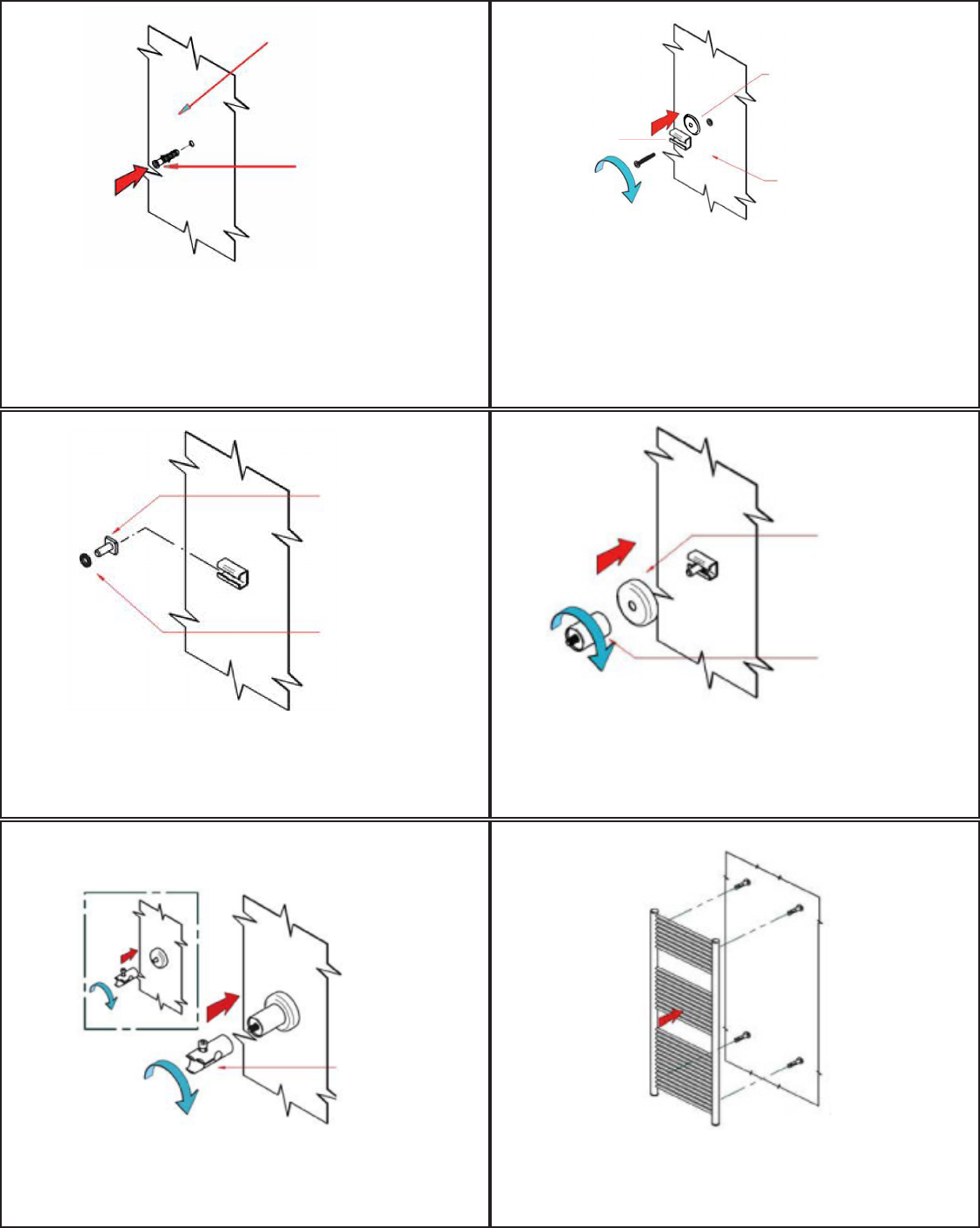

• Put the supporting screw (5) and the washer
(6) into the regulating plate (3).
Brick Wall
Plastic
Anchor
Brick wall:
• Drill the holes in the wall ø6 mm ( 1/4 inches)
and put the plastic anchor (1) into the wall;
Drywall:
• Leave out the plastic anchor (1) and proceed
with step 2
STEP 1
STEP 3 STEP 4
STEP 5 STEP 6
STEP 2
Drywall
Regulating
Plate
Cover
Washer
Drywall:
• Fasteners should be fixed to studs or structural
members behind the drywall
• If not possible on both sides, toggle bolts can
be used on one side.
• Proceed laying cover washer (2) over the hole
and fasten the regulating plate (3) into it with
the anchor screw (4); repeat this procedure for
each point of wall connections;
Extension
(optional)
Cover
• Put the cover (7) on the regulating plate (3)
• Screw the extension (10) to the supporting screw
(5) (optional)
• Screw the mounting fixture (8) onto the cover
(7) or into the extension (10)
Mounting
Fixture
VIEW WITH
EXTENSION
VIEW WITHOUT
EXTENSION
• Install the towel warmer in the four connections as
shown in drawing. A technical drawing can be found
on our website www.Ambaproducts.com
