54 Operation
Chapter 3 - Using the Web Configuration Server
Click on the Save button before leaving the page to save the new settings. The new
settings will be applied after restarting the unit.
The default is Sweden.
3.7.7 Dial Plan Schemes
A dialplan gives the unit a map to determine when a complete number has been
entered and should be passed to the gatekeeper/SIP server for resolution into an
IP address. Dialplans are expressed using the same syntax as used by MGCP NCS
specification. The following notation describes the formal syntax of the dialplan:
Digit ::= "0" | "1" | "2" | "3" | "4" | "5" | "6" | "7" | "8" | "9"
Timer ::= "T" | "t"
Letter ::= Digit | Timer | "#" | "*" | "A" | "a" | "B" | "b" | "C" | "c" | "D" | "d"
Range ::= "X" | "x" -- matches any digit
| "[" Letters "]" -- matches any of the specified letters
Letters::= Subrange | Subrange Letters
Subrange::= Letter -- matches the specified letter
| Digit "-" Digit -- matches any digit between first and last
Position::= Letter | Range
StringElement::= Position -- matches any occurrence of the position
| Position "." -- matches an arbitrary number of occurrences including 0
String ::= StringElement | StringElement String

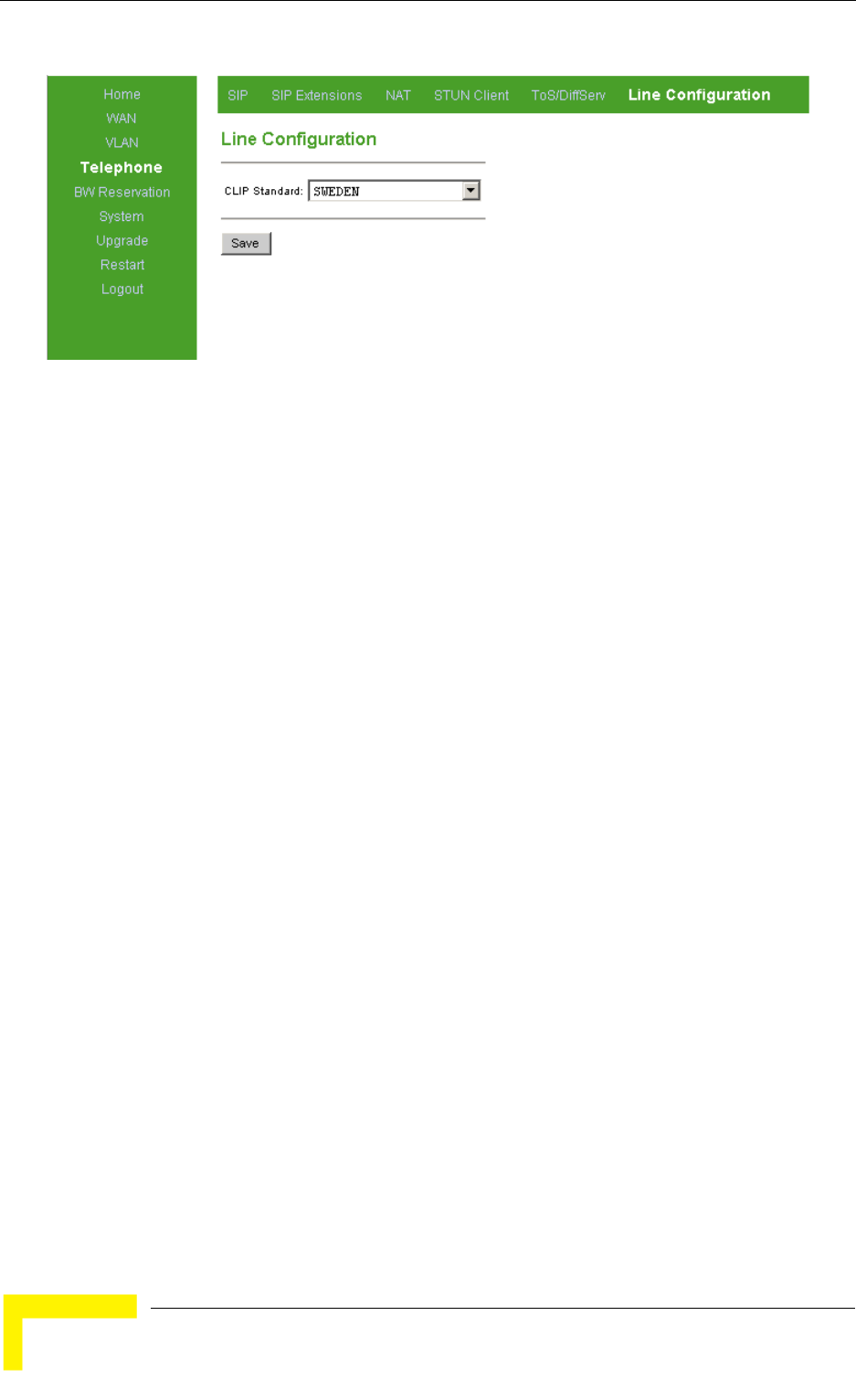

Figure 3-19: Line Configuration Page
