VLAN Tagging Menu
Voice Gateways System Manual 33
3.6.5.1 VG-1 Configuration
1 In the VLAN page, click Add VLAN to open the VLAN Editor.
2 In the VLAN Editor, enter the follwing for Voice and Management VLAN:
VLAN ID: 100
VLAN NAME: Voice&Mng
VLAN Priority: 7
WAN: Yes
LAN: Yes
3 Click OK to add the VLAN to the Tagged Port Membership table.
4 Enter the VLAN ID for Voice and Management (100) in the fields Default VLAN
ID on WAN port, and click Save.
5 In the Page Selection bar, click on VoIP VLAN Configuration to open the VoIP
VLAN Configuration page. Enter 100 in the VLAN Tag fields for both Call

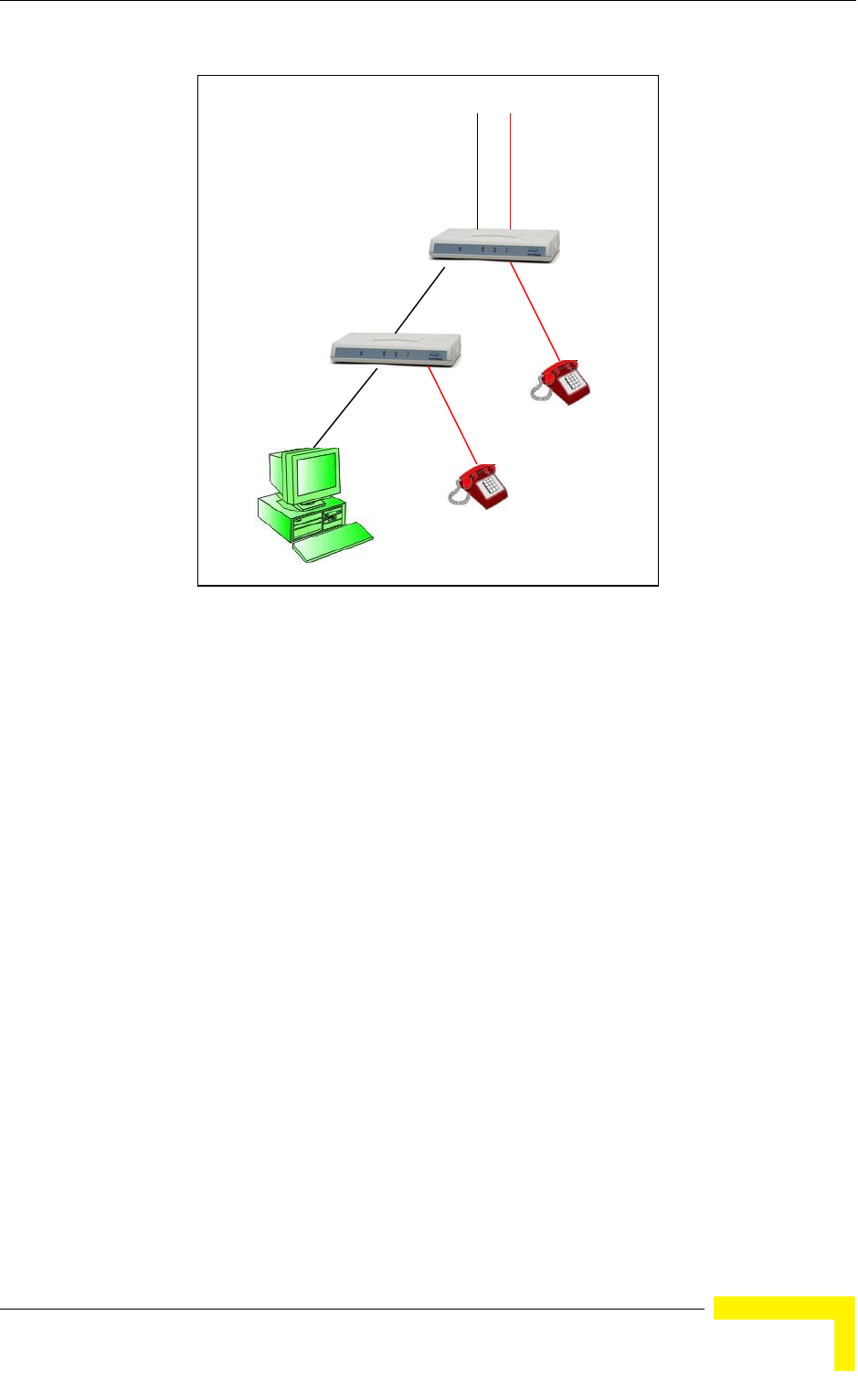

Figure 3-10: VLAN Configuration Example 2
POTS
Untagged
VLAN100
VLAN 200
VG-1
VG-2
