26 Operation
Chapter 3 - Using the Web Configuration Server
3.6 VLAN Tagging Menu
The VLAN Tagging page selection bar includes the following options:
VLAN Tagging (Section 3.6.1)
VoIP VLAN Configuration (Section 3.6.3)
3.6.1 VLAN Tagging Page
The Voice Gateway supports 802.1Q VLAN standard, allowing IEEE 802 Local
Area Networks (LANs) of all types to be connected together with Media Access
Control (MAC) Bridges, as specified in ISO/IEC 15802-3. This standard defines
the operation of Virtual LAN (VLAN) Bridges that permit the definition, operation
and administration of Virtual LAN topologies within a bridged LAN infrastructure.

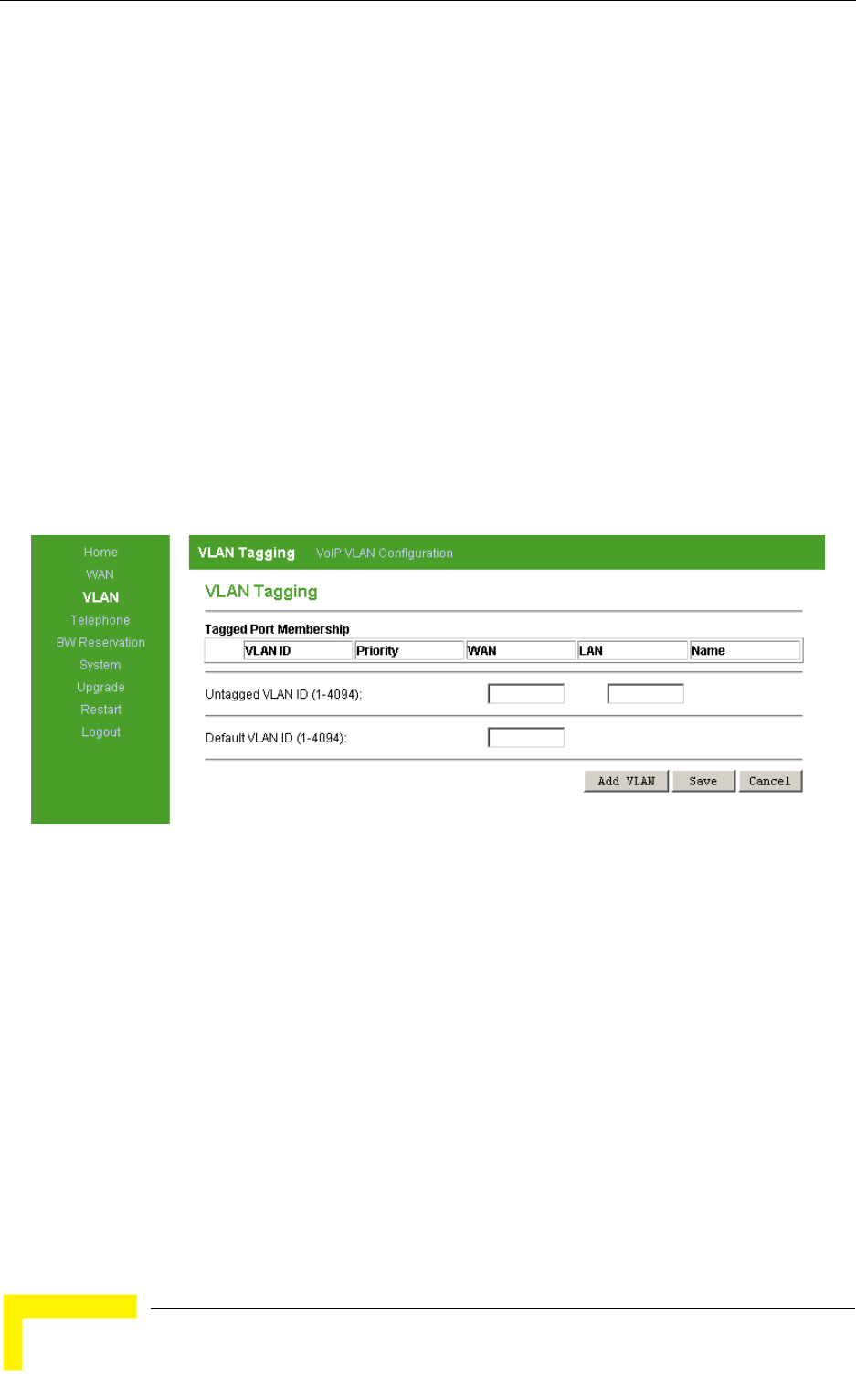

Figure 3-5: VLAN Tagging Page
