Chapter 4 - Operation and Administration BTS Menu
BreezeMAX Extreme 76 System Manual

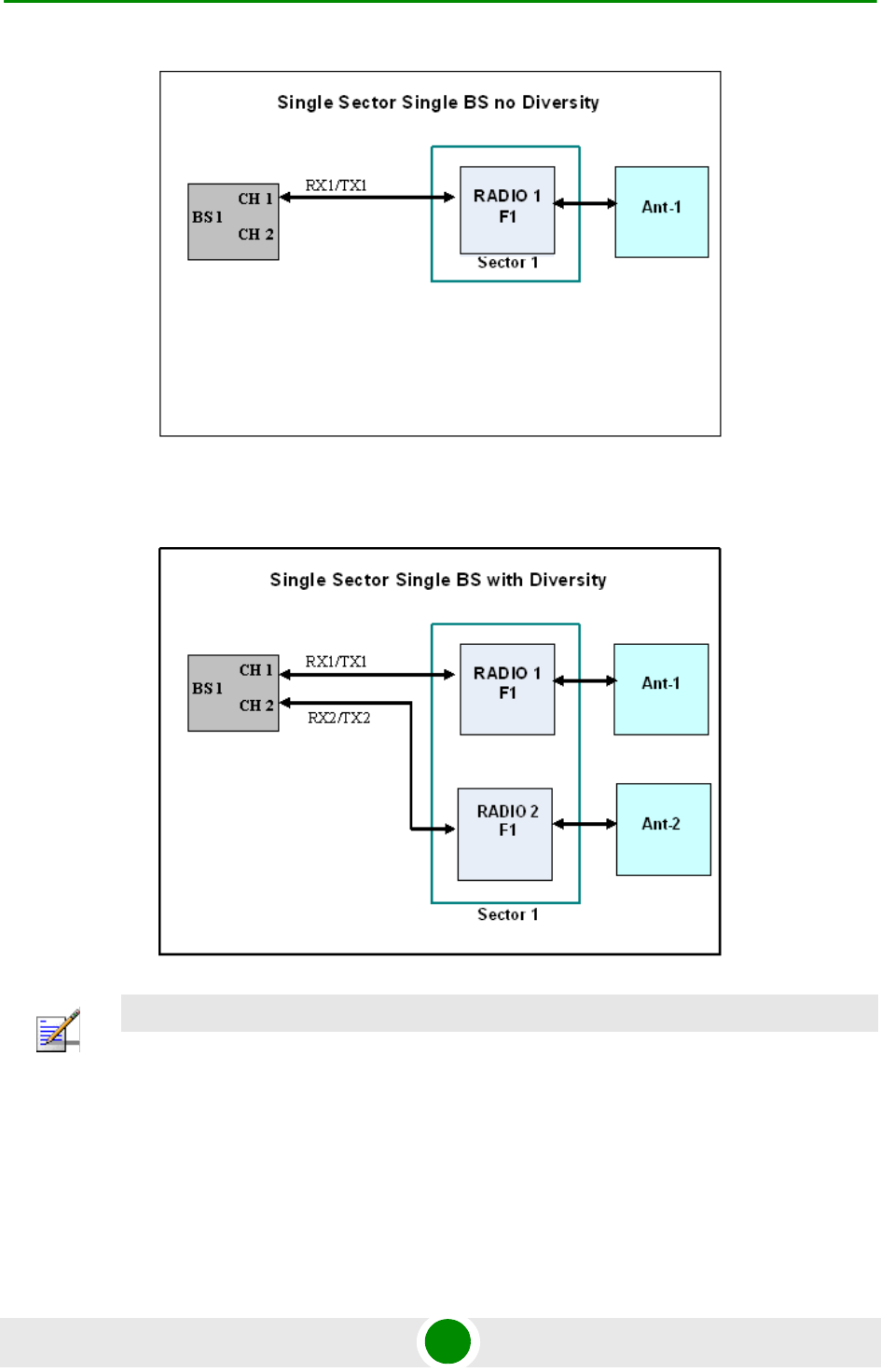

Single Sector Single BS with Diversity:
The available operation modes depend on the supplied configuration and installed
license options.
NOTE
PRO 1000 and Si 1000 CPEs can operate only with MIMO A diversity. To support these CPEs by
units with a single radio, it is possible to set the Operation Mode of such a unit to Single Sector
Single BS with Diversity, although actual operation is with a single radio, single antenna and a
single Rx/Tx radio channel.
