4 Use the 25m GPS cable to connect the lightning arrestor on the GPS bracket to
the second lightning arrestor installed near the BTS (see “Installing a
Lightning Arrestor for the High-Gain GPS Antenna” on page 31). Connect this
second lightning arrestor to the GPS ANT connector on the BTS.
5 Hand-tighten the connector on the interface cable using the locking ring for
securing the connection.
6 Use the supplied metal bands to assemble the bracket on a pole.
7 Fix the cable onto the pole using a plastic strip.

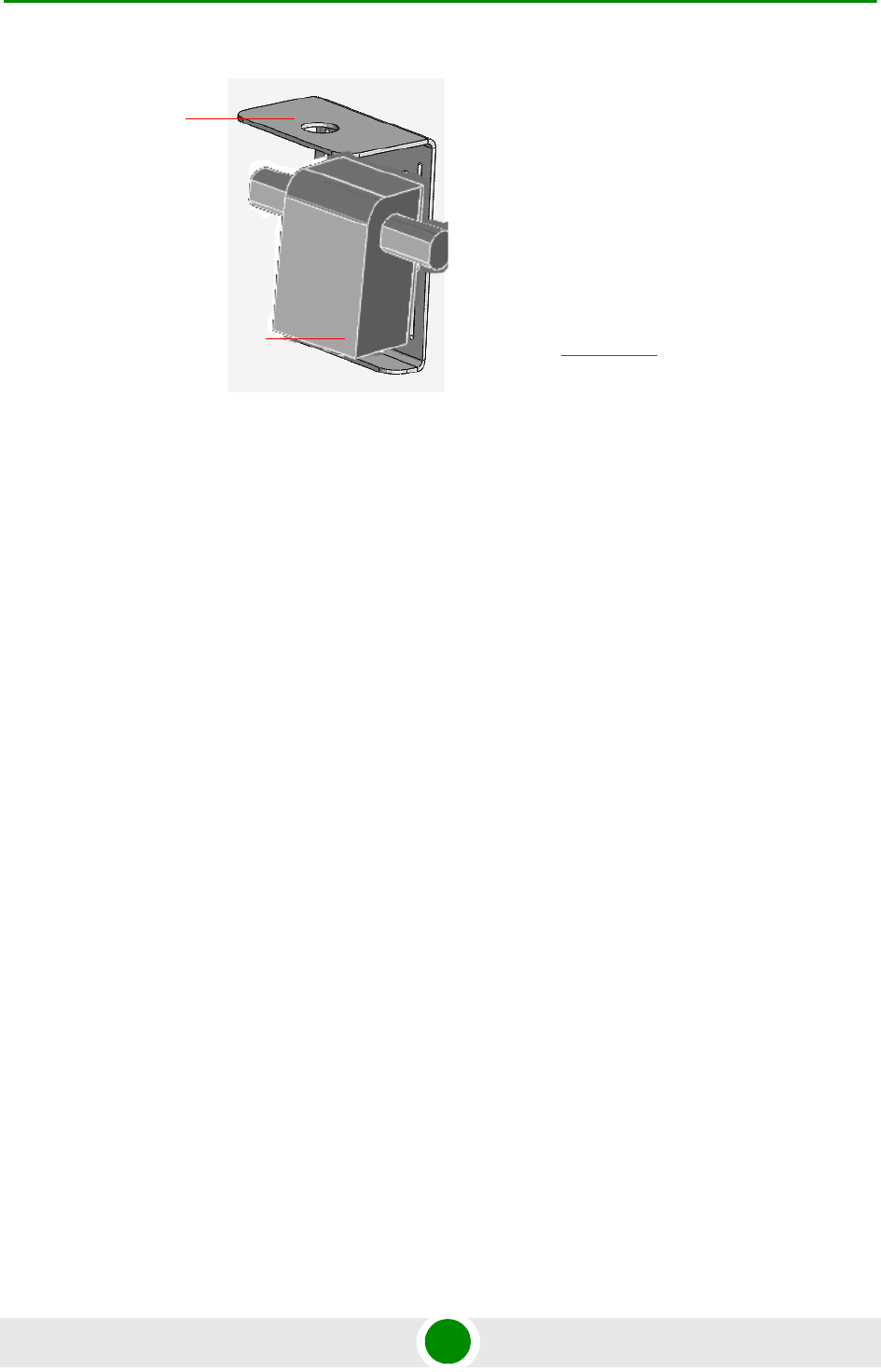

Figure 2-12: Bracket for High-Gain GPS
Hole for
High-gain
GPS antenna
Lightning
arrestor
Holes for
metal bands
